Page 14
-14-
1
Remove the Front Panel following to “Front Panel Removal” on “Mechanical
Disassemblies”.
2
Remove 4 screws to take the Projection Lens ass’y off.
1
Remove 2 screws
A
and pull the Integrator Lens-In ass’y upward.
2
Remove 1 stoppers
B
and then take the Lens off from the holder.
Fig.1

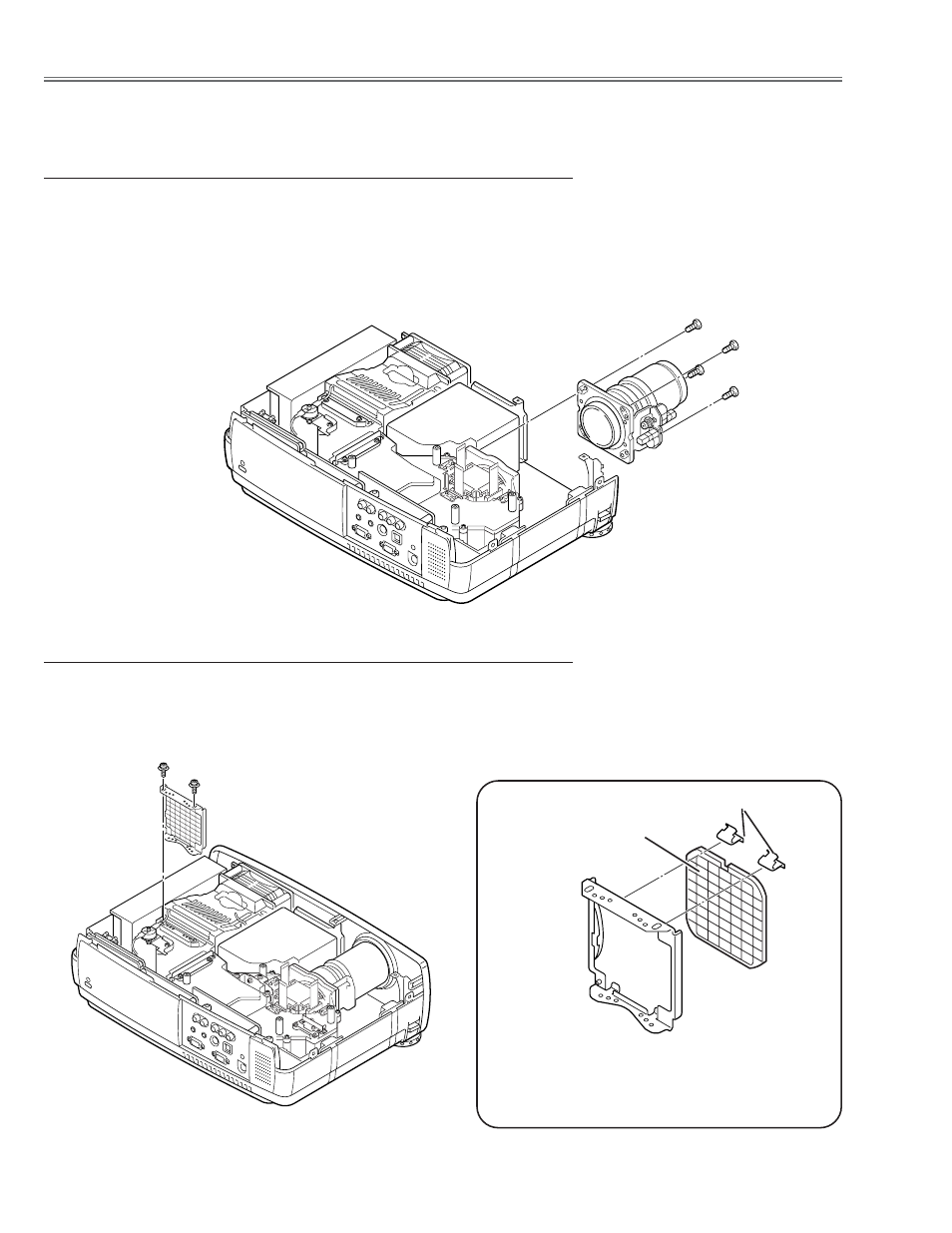

■ Optical Parts Disassemblies
Before taking this procedure, remove Cabinet Top and Main Board following to the “Mechanical Disassemblies”.
Disassembly requires a 2.0mm hex wrench and a screwdriver.
Integrator Lens
* Lens should be placed as the
rugged surface side comes to
the holder side.
Fig.2-
1
Fig.2-
2
Projection Lens removal
Integrator Lens-In disassembly
Stopper
B
A
A
