-10-

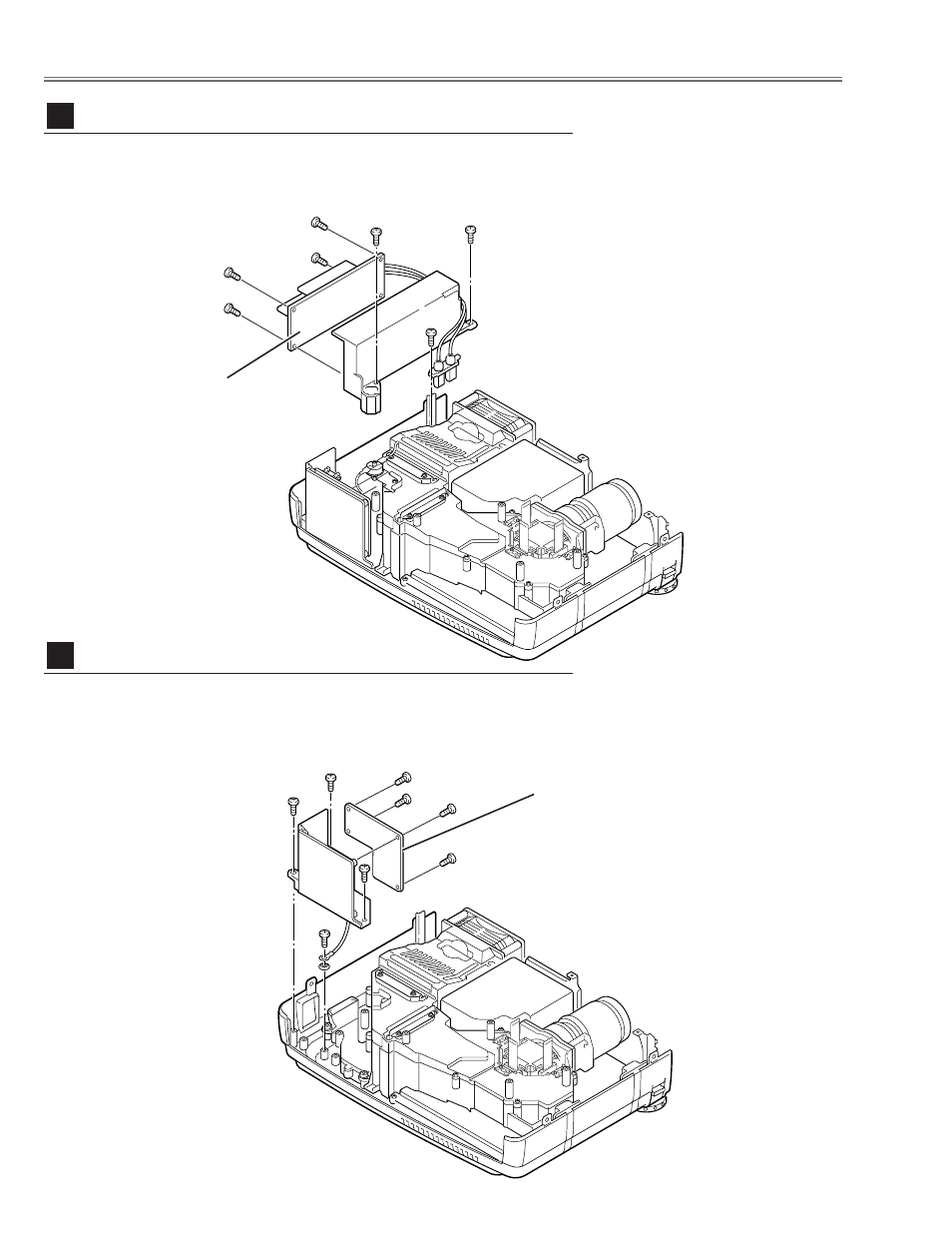

Mechanical Disassemblies

1

Remove 1 screw

A

and disconnect the Lamp Socket.

2

Remove 2 screws

B

to take the Lamp Ballast ass’y upward off.

3

Remove 4 screws

C

to take the Lamp Ballast Board off.

Fig.5

1

Remove 3 screws

A

and pull the Filter Board ass’y upward.

2

Remove 1 screw

B

to take the grounding lead from the cabinet bottom.

3

Remove 4 screws

C

to take the Filter Board off.

Fig.6

Lamp Ballast Unit removal

5

Filter Board removal

6

A

Lamp ballast board

B

B

C

C

C

C

A

A

A

B

C

C

C

C

Filter board
