Connecting the AC plug with PG16
To connect a cable with a cross-section between 13.5 mm² and 16 mm², proceed as
follows.
1.
First of all, slide the pressure screw with the PG16 screw fitting onto the cable.
Now slide the threaded sleeve over the cable.
2. Now connect the individual conductors to the socket element
in sequence.
- Protective earth PE (green/yellow) to the screw terminal
with the earth sign. Make sure that the PE earth wire is
longer than the N and L connected wires.
- Neutral conductor N (blue) to screw terminal 1.
- Live L (brown or black) to screw terminal 2.
- Terminal 3 remains unused.
3. Make sure the wires are securely connected.
4. Now screw the threaded sleeve onto the socket element and tighten it.

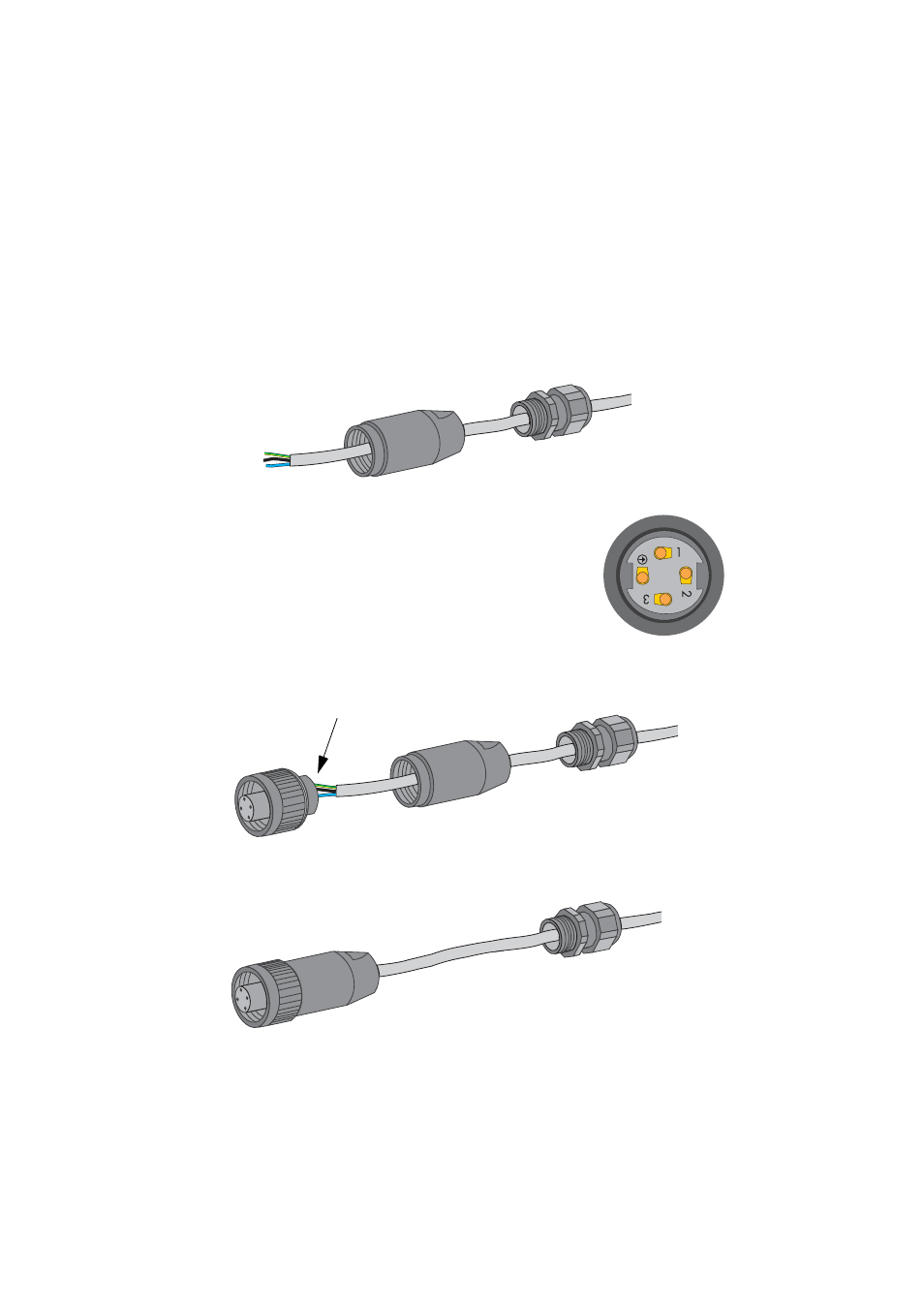

Threaded sleeve
Pressure screw with
PG16 screw fitting
Terminals in the
socket element
Threaded sleeve
Pressure screw with
PG16 screw fitting
Socket element
Connected wires
Threaded sleeve screwed
onto socket element
Pressure screw with
PG16 screw fitting
