SMA PVO-N-20 User Manual
Page 28

7 Electrical Connection
SMA Solar Technology AG
28
PVO-BOX-IA-en-10
Installation Manual

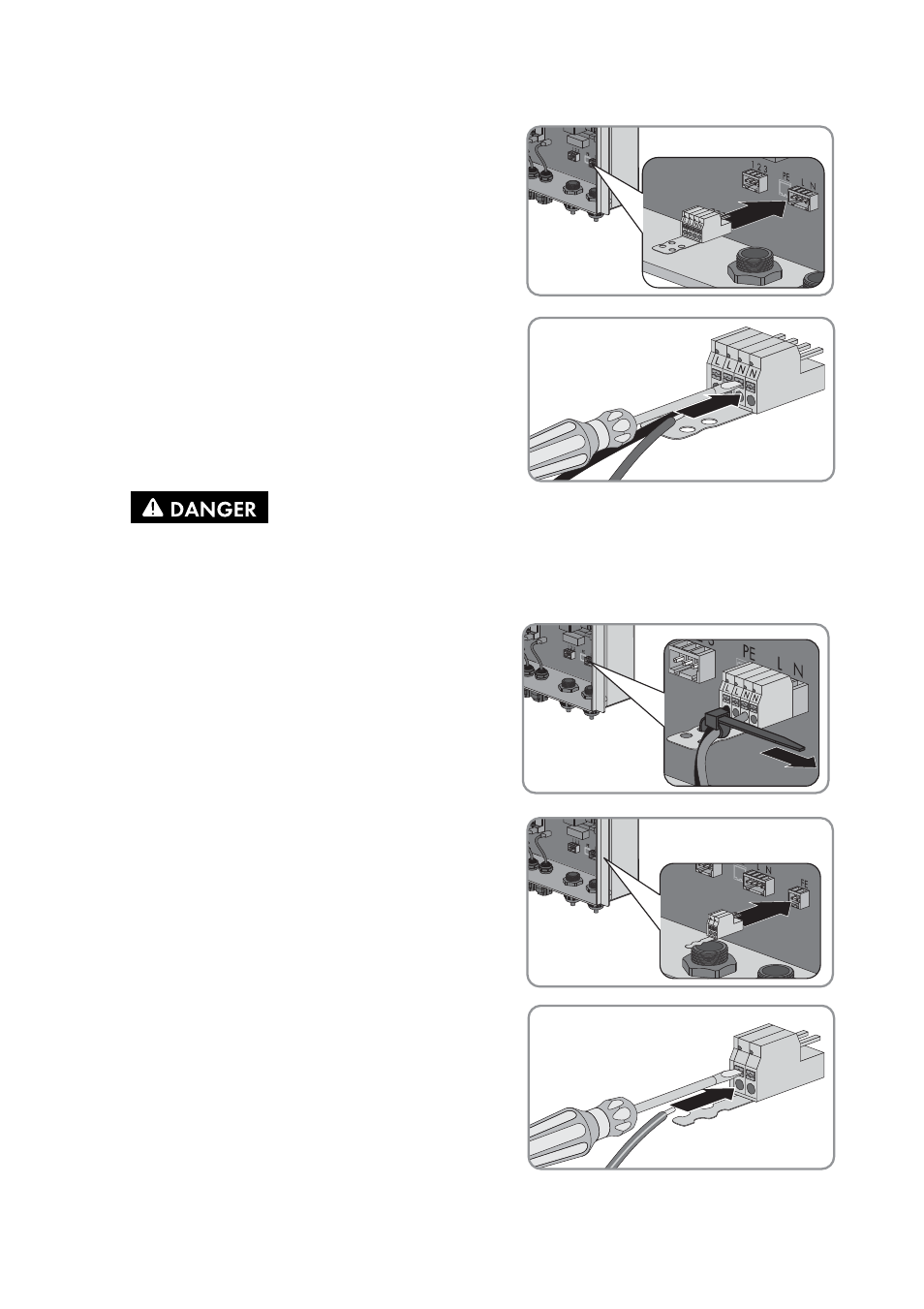

5. Plug the supplied 4-pole plug into the centre socket
in the SMA PV Offset Box.
6. Connect L and N to the plug as follows:
• Connect L to the first or second terminal.
• Connect N to the third or fourth terminal.
8. Plug the supplied 2-pole plug into the right-hand
socket in the SMA PV Offset Box.
9. Connect FE to the plug.
7.
Danger to life due to electric shock
If the cables slip out of the terminal due to excessive tension, the enclosure will carry live
voltage.
• Attach the supplied cable tie to relieve the
tension.
