358 Touch Probe Cycles: Automatic Datum Setting
15.13 D
A
TUM IN ONE AXIS (C
y
c
le
41
9, DIN/ISO: G41
9
)

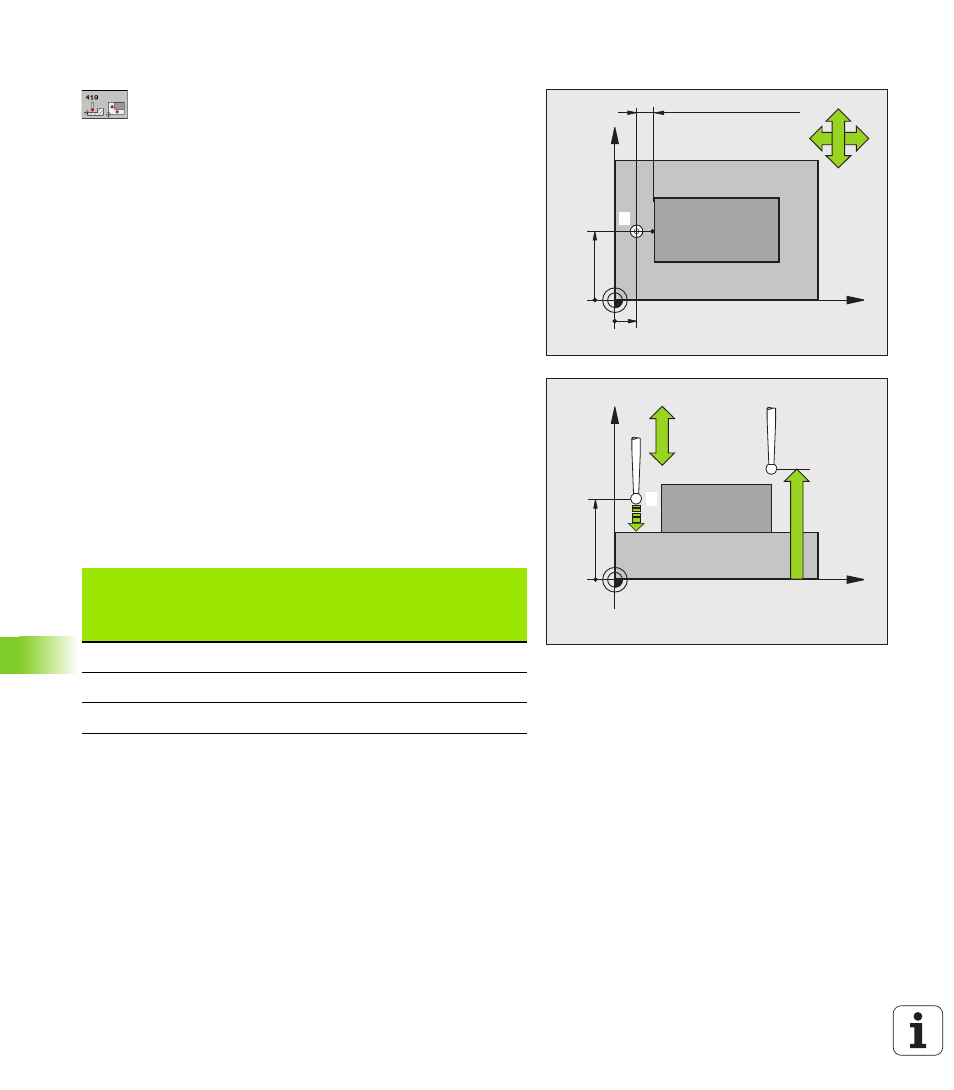

Cycle parameters
8 1st meas. point 1st axis Q263 (absolute): Coordinate
of the first touch point in the reference axis of the
working plane. Input range -99999.9999 to
99999.9999
8 1st meas. point 2nd axis Q264 (absolute):
Coordinate of the first touch point in the minor axis of
the working plane. Input range -99999.9999 to
99999.9999
8 Measuring height in the touch probe axis Q261
(absolute): Coordinate of the ball tip center (= touch
point) in the touch probe axis in which the
measurement is to be made. Input range
-99999.9999 to 99999.9999
8 Set-up clearance Q320 (incremental): Additional
distance between measuring point and ball tip. Q320
is added to SET_UP (touch probe table). Input range
0 to 99999.9999
8 Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999
8 Measuring axis (1...3: 1=reference axis) Q272: Axis
in which the measurement is to be made:
1: Reference axis = measuring axis
2: Minor axis = measuring axis
3: Touch probe axis = measuring axis
X
Y
Q264
Q263
+
–
– +
Q267
Q272=2
Q272=1
1
SET_UP(TCHPROBE.TP)
+Q320
X
Z
Q260
Q261
+
–
Q272=1
Q272=3 Q267
1
Axis assignment
Active touch probe
axis: Q272=3
Corresponding
reference axis:
Q272=1 Corresponding
minor axis:
Q272=2
Z X Y
Y Z X
X Y Z
