Page 48
Chapter 3 Service
3-16
PDX208 Instruction Manual
Removing and Replacing a SCSI Cable
Internal SCSI cables (item 9 in Table 3-1) connect from two connectors on each side
of the SCSI Distribution board to the two rear panel SCSI connectors on the same side
of the chassis. Figure 3-10 shows removal of an internal SCSI cable.

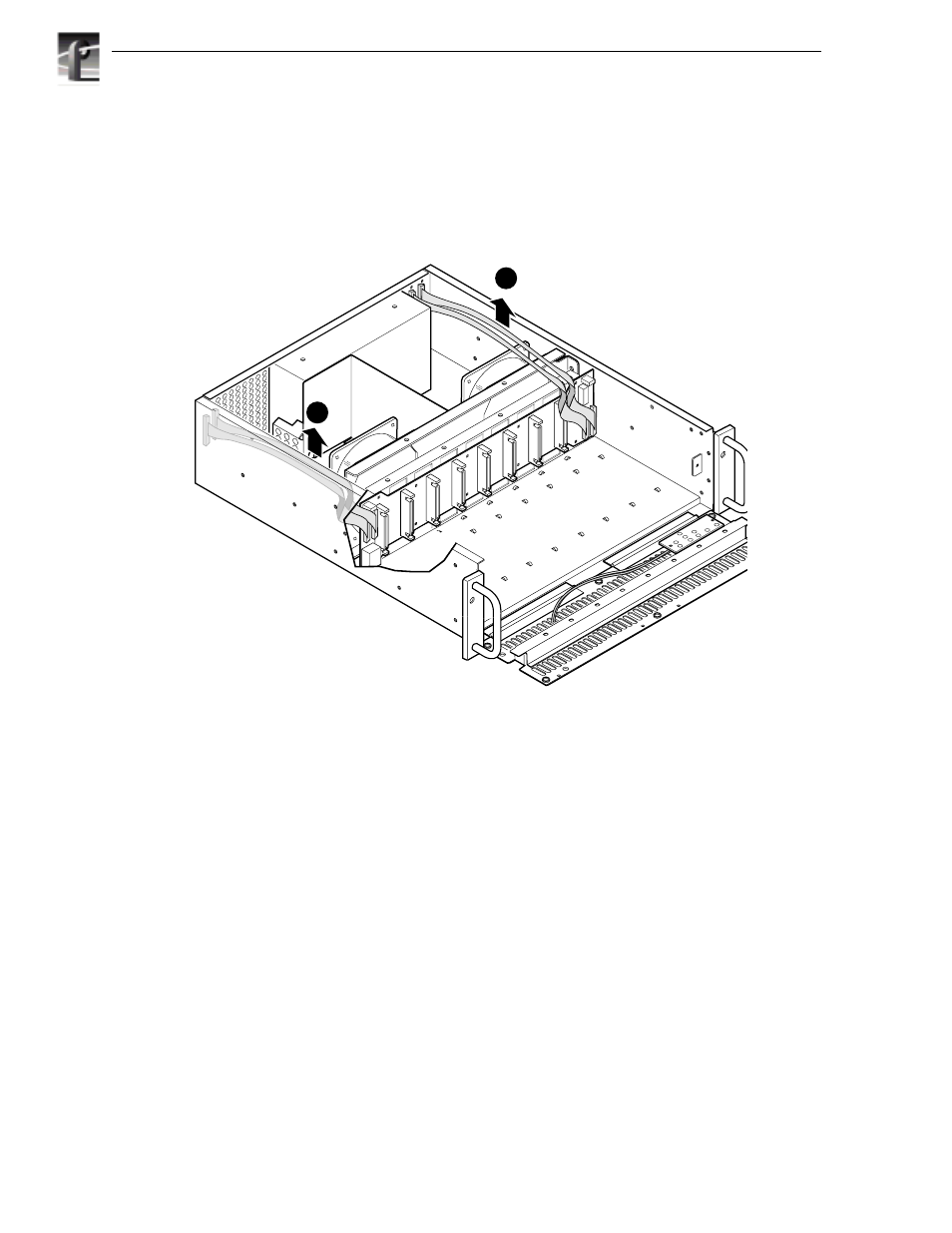

Figure 3-10. Removal of a SCSI Cable
9687-20
Unplug connectors on
both ends of SCSI cables
and remove cables
1
1
