Installing the SCSI Cable and Disk Drives
38 18GB Disk Drive Upgrade

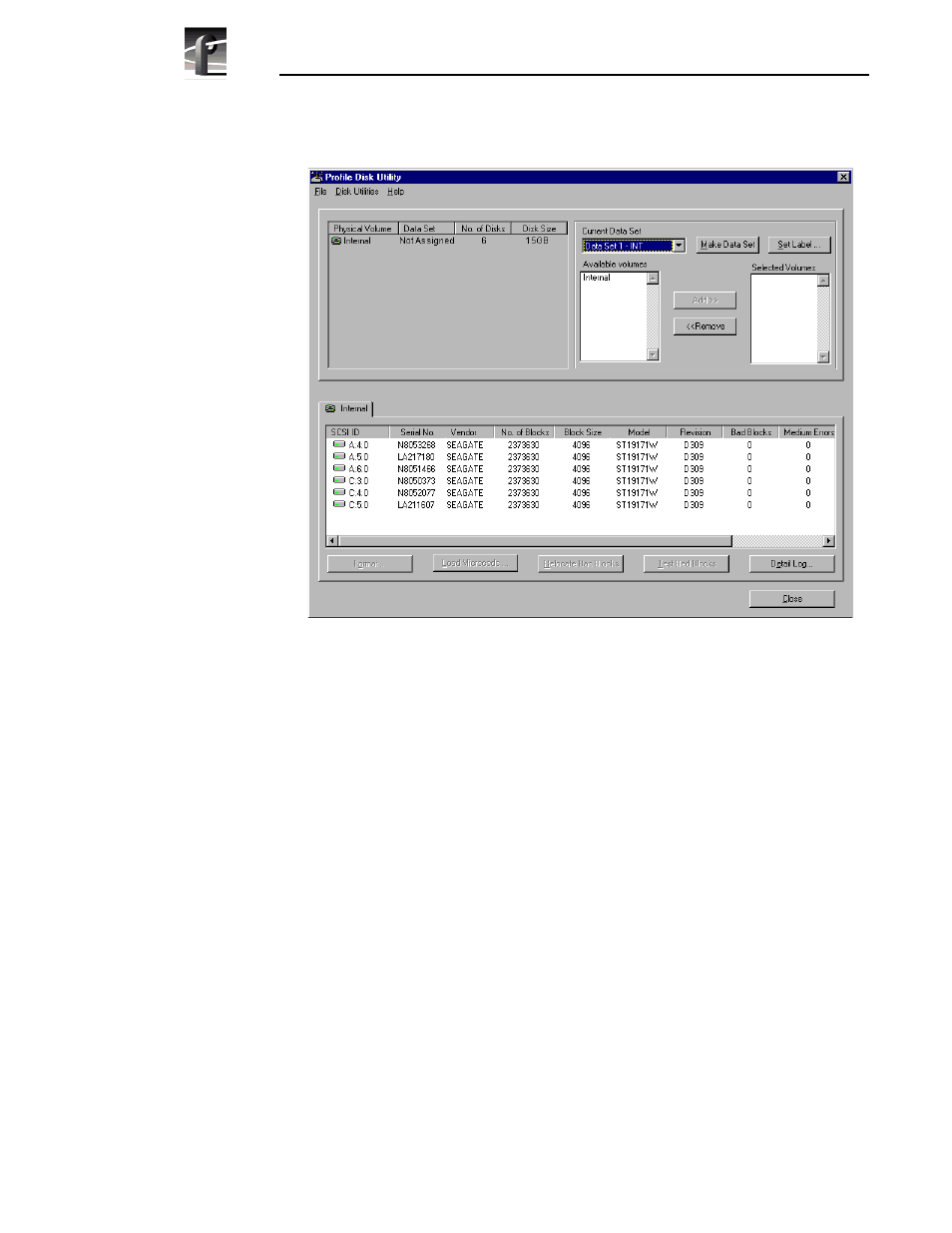

Figure 12. Profile Disk Utility
5. In the Profile Disk Utility, verify that the Internal Physical Volume
description includes the number of disks installed in the system. Also, check
the SCSI IDs on the
Internal tab, shown in Figure 12, for the following SCSI
IDs:
SCSI IDs for systems with both Master and Slave EDR boards installed:
- 8-disk system = A:3:0-A:6:0 and C:3:0-C:6:0
- 7-disk system = A:3:0-A:6:0 and C:3:0-C:5:0
- 6-disk system = A:4:0-A:6:0 and C:3:0-C:5:0
