34
IMPORTANT! READ AND FOLLOW ALL INSTALLATION AND MAINTENANCE INSTRUCTIONS, INCLUDING
CLEANING THE UNIT AS SPECIFIED, AND REPLACING GASKETS ANNUALLY, AND PARTS AS NEEDED.
ENGLAND’S STOVE WORKS IS NOT RESPONSIBLE FOR ANY DAMAGE OR INJURY INCURRED DUE TO NEGLECT, OR
DUE TO UNSAFE INSTALLATION OR USAGE OF THIS PRODUCT. CALL TECHNICAL SUPPORT WITH QUESTIONS.
REPLACING COMPONENTS
Convection Blower
1. Before beginning any component
replacement, be certain the unit is
unplugged and thoroughly cooled
down.
2. Remove the back exhaust outlet
cover plate and back panel from the
unit.
3. Detach the convection blower from
the wiring harness before loosening
the four screws which secure it to
the convection shroud of the stove.
4. After loosening and removing the
four screws which hold the blower
to the stove, remove the blower
from the stove.
5. Installation of the new blower is
performed in reverse of removal;
remember to reconnect the new
blower to the wiring harness.
Combustion Blower
1. Before beginning any component
replacement, be certain the unit is
unplugged and thoroughly cooled
down.
2. Remove the 5/16” screw which
holds the exhaust blower access
door to the stove.
3. Disconnect the venting system from
the exhaust blower, and disconnect
the exhaust blower from the stove
wiring harness. Remove the thermal
sensor screw on the top of the
exhaust blower outlet using a 5/16”
wrench.
4. Remove all five screws which hold
the exhaust blower to the exhaust
blower tube. Once the screws have
been removed, the blower can be
lifted up and out of the stove.
5. Reinstallation is the exact opposite
of the steps above; however be
certain to check the condition of the
exhaust blower gasket and replace if
necessary.

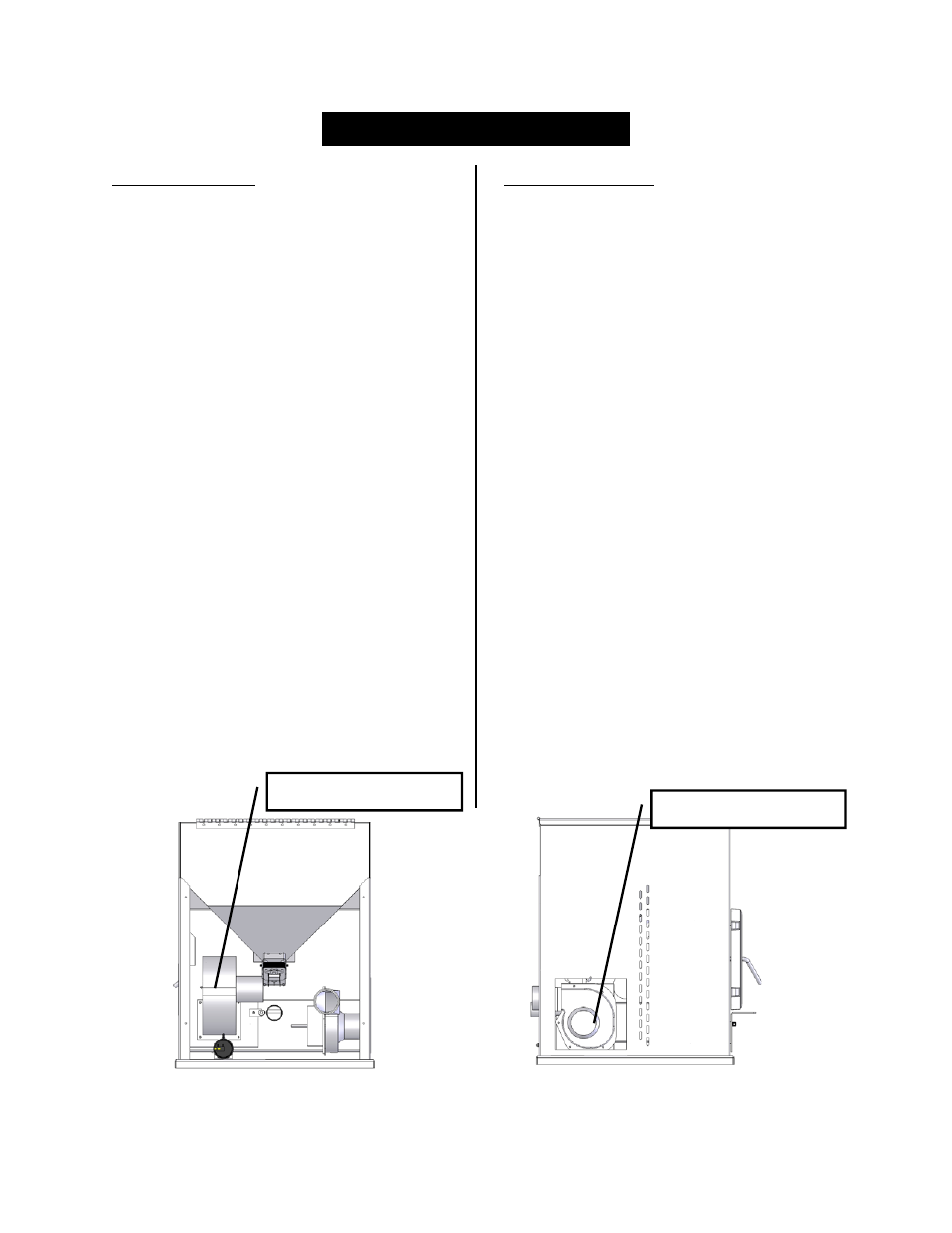

Convection Blower
Combustion Blower
