54 M-Series Service Manual 6 July 2004
Chapter 3 Service Procedures

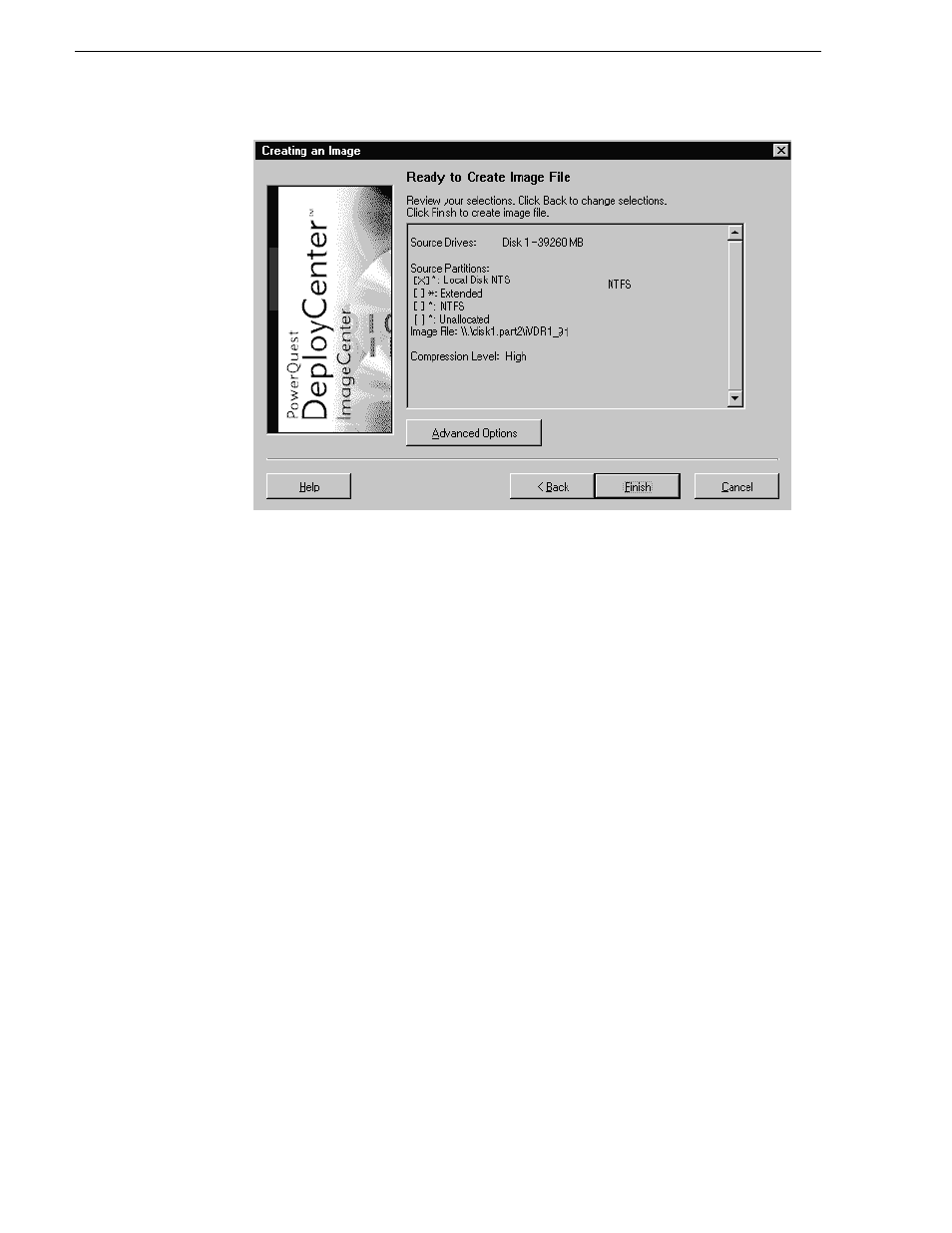

12. On the Ready to Create Image File screen, click Advanced Options . The Create
Image Advanced Options dialog box opens.
13. On the Create Image Advanced Options dialog box, do the following:
a. Accept the following default selection:
- Check for file system errors
b. Select Split image file… and enter 630,000,000 . This splits the disk image
into separate files that are small enough to fit on a CD-RW, in case you want to
copy the disk image onto removable media.
c. Click OK . The Create Image Advanced Options dialog box closes.
14. On the Ready to Create Image File screen, confirm that the information displayed
is correct for the disk image you are creating. Click Finish .
15. On the Creating an Image screen, monitor progress bars as the DeployCenter
program writes the disk image files to the second partition. If the file name is
“iVDR1_91”, files are named iVDR1_91.PQI, iVDR1_91.002, iVDR1_91.003 and
so on.
16. Click OK to the “Image was copied successfully…” message and exit the
DeployCenter program.
17. Remove the CD and use the standby switch to restart the iVDR. The iVDR starts
up in Storage Maintenance mode.
18. Open the AppCenter icon on the Windows desktop and when prompted to restart
in Normal mode select Yes . The iVDR starts up in Normal mode.
