System description
System description

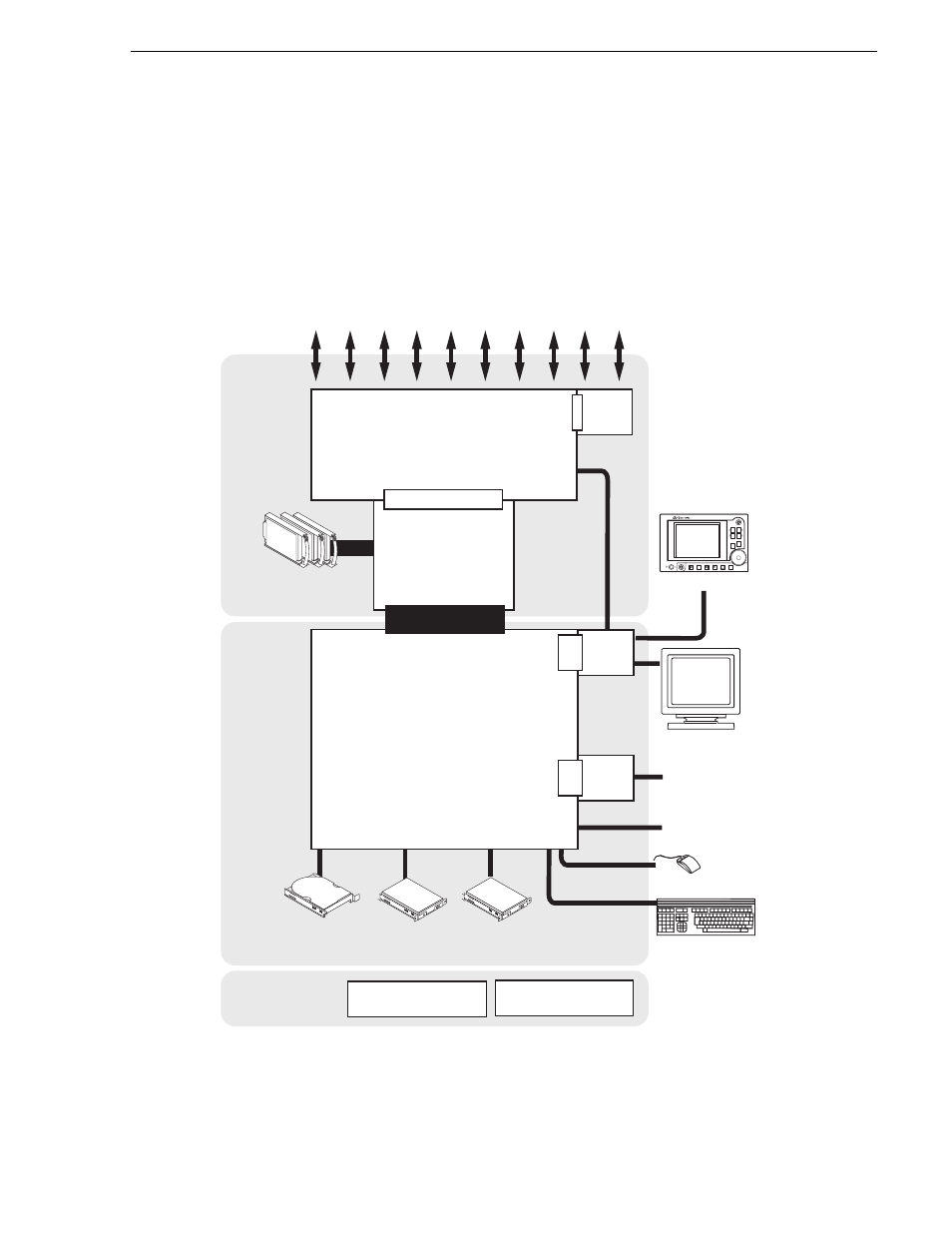

The M-Series iVDR is a standard PCI bus-based Windows computer with extensive
enhancements to provide the video disk recorder functionality. This section explains
the major architectural blocks.
Real Time
Processor
Board
AGP
Board
ATX Motherboard
Codec Board
XLR
Board
RS422
Boards
Power Supply Fan Module
VAR
JOG SHTL
R1
P2
P1
R2
VGA Monitor
Mouse
Keyboard
Front Panel
System
Drive (C:)
Ethernet Port
iVDR Inputs and Outputs:
Audio, Video, Timecode, Reference, Monitor, GPI
Remote
Control
Devices
Floppy
Drive CD-RW
Drive
Media
Drives (V:)
SCSI
Application
System
System
Resources
Real
Time
System
PCI Bus
AGP
Bus
PCI
Bus
