KayakDD-2 Digital Production Switcher
7.4.9
Exchange the Battery
7.4.9.1
Open the KayakDD-2 Mainframe

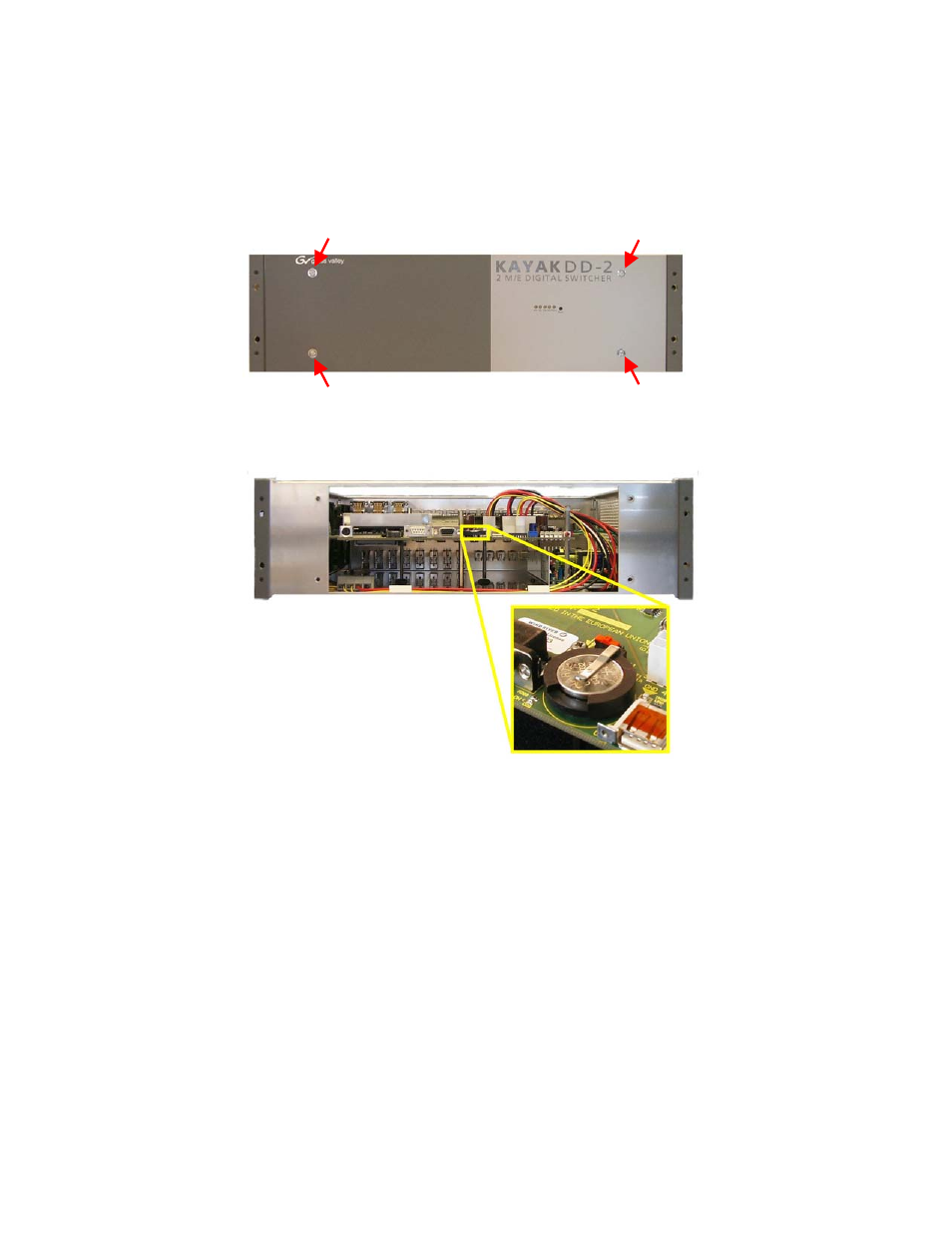

Figure 33 KayakDD-2 Frame Front
1. Loosen the four screws and remove the front door in order to come to the inside.
Figure 34
KayakDD-2-Frame Without Front Plate
2. Exchange the battery
3. Lift the battery
4. Push the battery forward
5. Close frame and fasten all screws.
84
Planning and Installation Manual
