KayakDD-2 Digital Production Switcher
6.5 Processor Frame Connectors
N4067
GPI/O - Tally
LAN
RS 485
INPUT 1-16 REFERENCE
AUX 1-10
AC POWER IN
100 - 240 V
max. 4A
50/60 Hz
DC POWER
IN
J2
J 4 J 5 J 6 J 7 J 8
PGM CLEAN PVW CLEAN-PVW AUX 1 AUX 2 AUX 3 AUX 4 AUX 5 AUX 6 AUX 7 AUX 8 AUX 9 AUX 10
J 9 J 10 J 11 J 12 J 13 J 14 J 15 J 16 J 17 J 18
Port 1 Port 2 Port 3
Port 4 Port 5 Port 6
J 19 J 20 J 21
J 22 J 24 J 23
J 25
IN 1
IN 2
IN 3
J 26
J 27
J 28
J 29
J 30
J 31
J 32
J 33
J 34
J 35
J 36
J 37
J 38
J 39
J 40
IN 4
IN 5
IN 6
IN 7
IN 8
IN 9
IN 10
IN 11
IN 12
IN 13
IN 14
IN 15
IN 16
J 41
J 42
ANALOG
J 44 J 43
grass valley
48V / 5A max.
KAYAK
2 M/E DIGITAL SWITCHER
R
3S13
Prof. Vid. Equipm. Listed
J3
OUT
48V / 1,6A
J 45 J 46 J 47 J 48 J 49
J 50
IN 17
J 58
IN 25
J 51
IN 18
J 59
IN 26
J 52
IN 19
J 60
IN 27
J 53
IN 20
J 61
IN 28
J 54
IN 21
J 62
IN 29
J 55
IN 22
J 63
IN 30
J 56
IN 23
J 64
IN 31
J 57
IN 24
J 65
IN 32
INPUT 17-32
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
DD-2
T Y P E
P A R T N O .
S E R . N O .
K A Y A K D D -2
0 2 1 2 3 9 0 0 1 0
1 0 0
g ra s s v a lle y
P/P
PGM CLEAN PVW CLEAN-PVW
M/E
Caution: For continued protection against risk
of fire, repplace only with same type and rating of fuse.
2*T6,3A /H
250V
J1

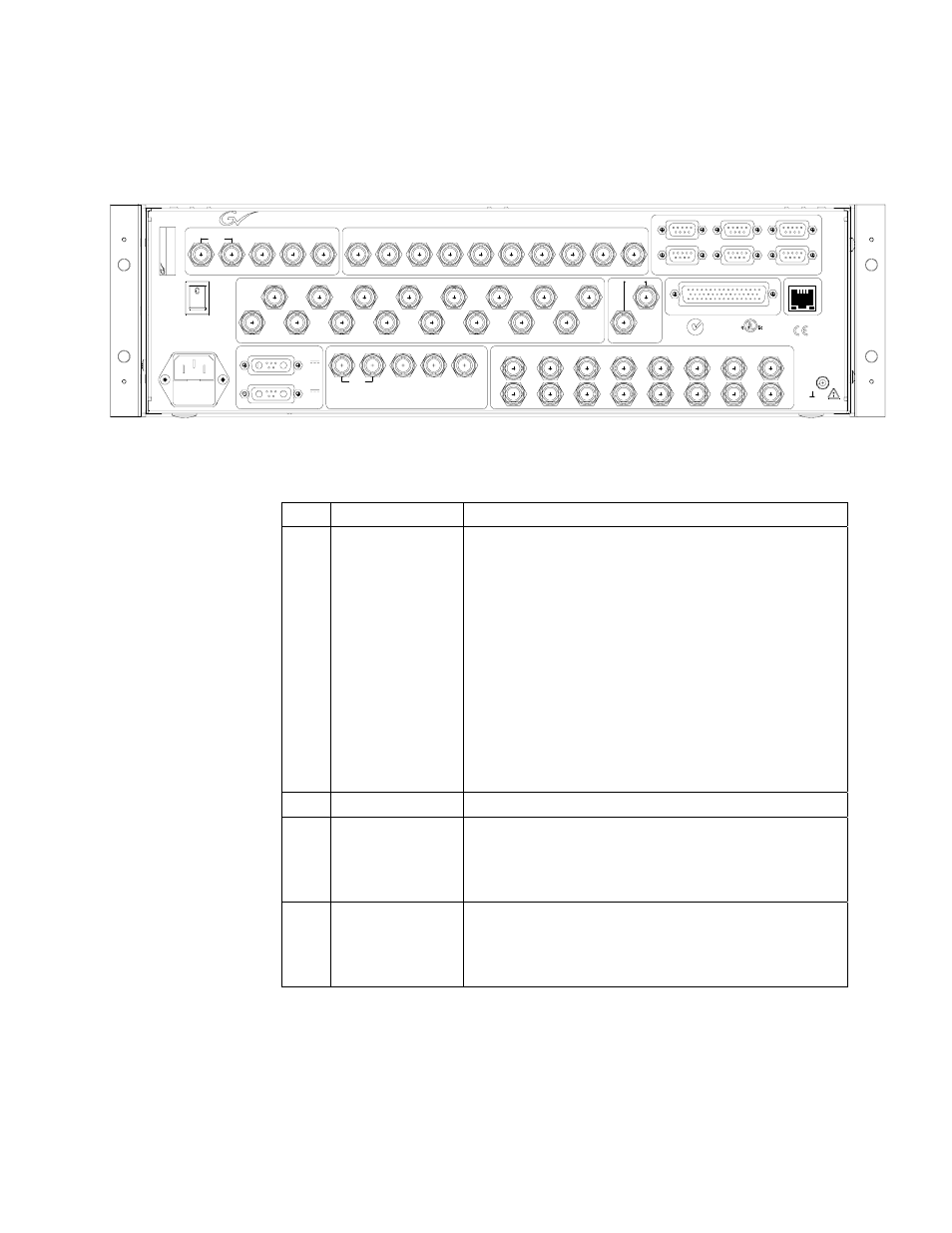

Figure 14 Video Processor Frame Connectors
Jack Designation Note
J1 AC POWER IN Mains connector (IEC-320, CEE-22) for power supply
to the Video Processor Frame.
Operating Voltage: 100V-240V AC +/-10% widerange
Caution!
Double-pole or neutral fusing.
After operation of the protective device, parts of
the equipment that remain under voltage might
represent a hazard during servicing.
Caution!
For continued protection against risk of fire,
replace only with same type and rating of fuse!
2x T 6.3A /H 250
AC POWER IN Frame power switch
J25
:
J40
INPUT
IN1 – IN16
BNC / Serial Comp (ITU-R 656) video inputs
Maximum cable length 225m (738 ft)
J50
:
J65
INPUT
IN17 – IN32
BNC / Serial Comp (ITU-R 656) video inputs
In 17 …24: Maximum cable length 225m (738 ft)
In 25 …32: Maximum cable length 150m (492 ft)
