KayakDD-2 Digital Production Switcher
6.3
Mounting the Control Panel
6.3.1 Control
Panel
Measurements
(16.46 inch)
(10.23 inch)
(5.69 inch)
(0.60 inch)
(1.31 inch)
(0.39 inch)
(15.66 inch)
(0.40 inch)
(3.19 inch)
(2.55 inch)
Bold dimensions are [mm]

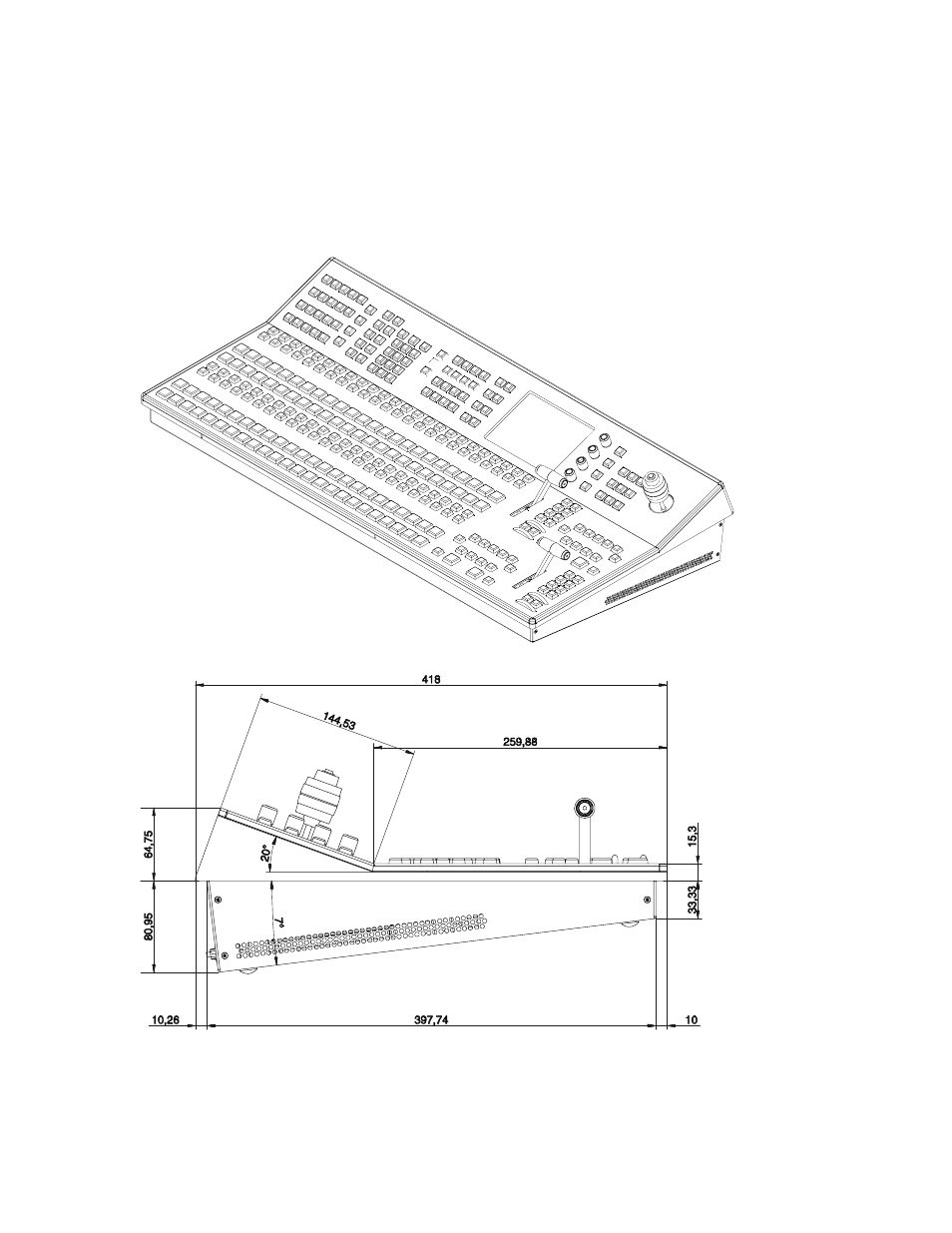

Figure 8
KayakDD-2 Control Panel Measurements 1 of 2
40
Planning and Installation Manual
