12
Installation

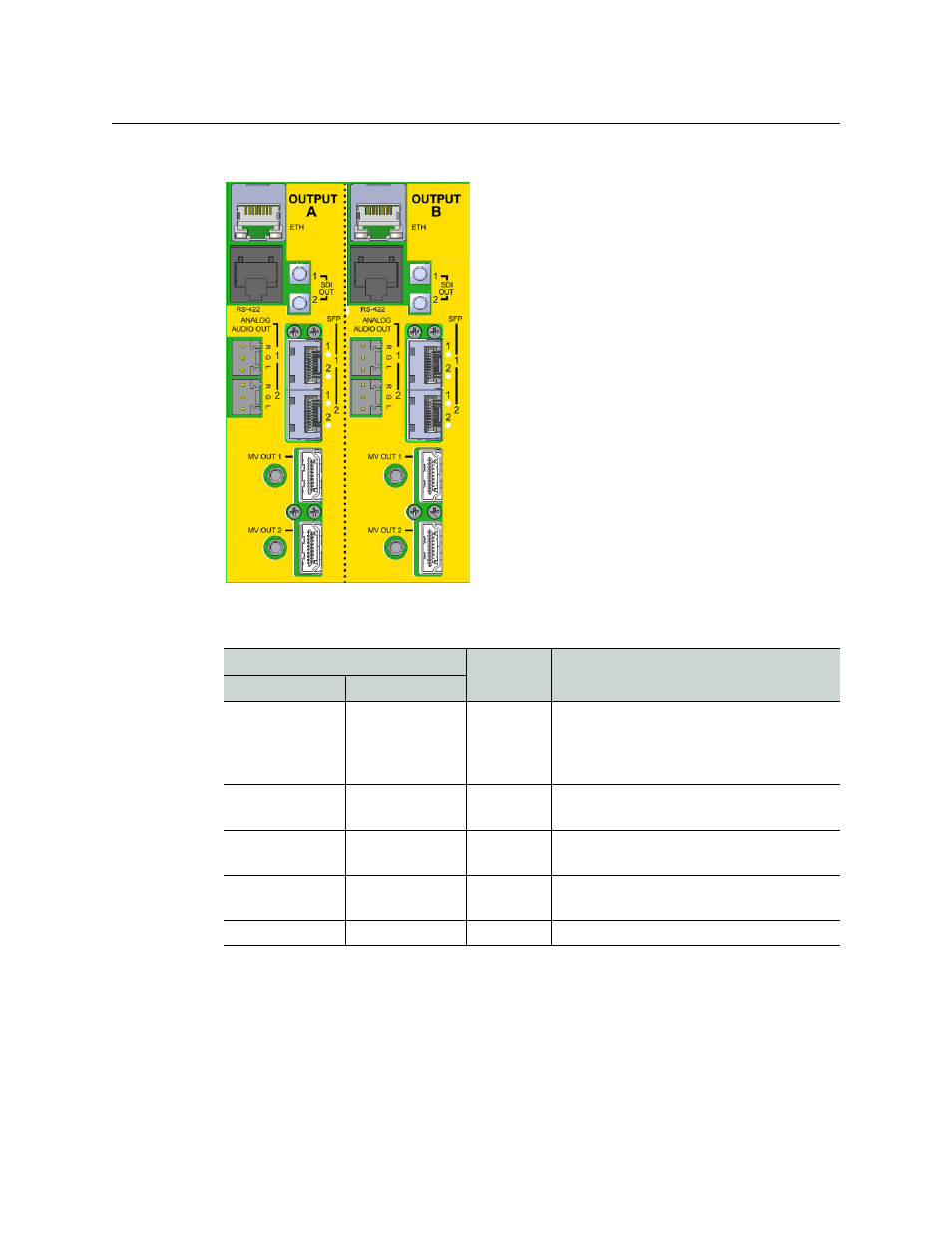

Output Modules
Output Modules
The following table lists the function of each connector associated with the output heads,
on Output A, and Output B.
Connector label
Connector
type
Function Head 1 Head 2
MV OUT 1 MV OUT 2 HDMI High definition connection for the
multiviewer output, which carries audio
and video, and can support resolutions up
to 1920 × 1200 (all progressive scan)
SDI OUT 1 SDI OUT 2 DIN 1.0/2.3 Serial digital HD output signal for
monitoring purposes
ANALOG OUT 1 L ANALOG OUT 2 L WECO Analog audio output (left channel) to feed
the audio monitoring system
ANALOG OUT 1 R ANALOG OUT 2 R WECO Analog audio output (right channel) to
feed the audio monitoring system
SFP 1 SFP 2 — Optional ports. Not yet supported.
