Installation
Mechanical Installation
Kaleido-MX (3RU) 64 × 2
Kaleido-MX (3RU) 64 × 4
Mechanical Installation
Unpacking
Make sure the following items have been shipped with your Kaleido-MX (3RU). If any of
these are missing, contact your distributor or Grass Valley (see
Contact Us , on page 41).
• Kaleido-MX (3RU) unit with pre-installed cards (2–4 input cards, 1 or 2 output cards, a
Densité CPU-ETH2 controller card, a VDA-1002 analogue video distribution amplifier
module, 1 or 2 GPI-1501 GPI I/O modules), and 1 or 2 power supplies
• Two AC power cords
• Two cable retainers

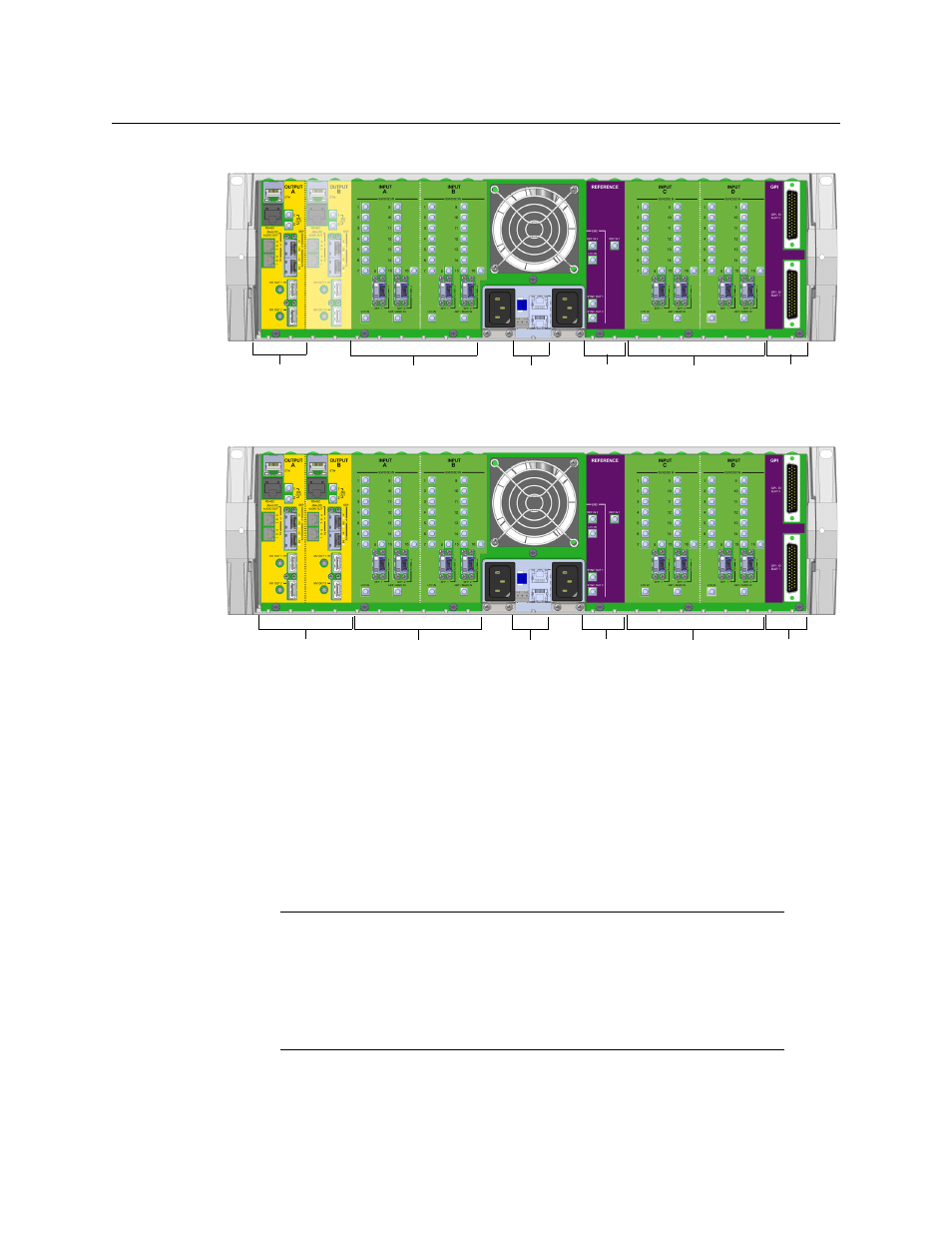

Output A Controller
card
Input A, and Input B REF 1, and
REF 2 (opt.)
GPI I/O 1, and
GPI I/O 2 (opt.)
Input C, and Input D
Input A, and Input B Output A, and
Output B
Controller
card
REF 1, and
REF 2 (opt.)
GPI I/O 1, and
GPI I/O 2 (opt.)
Input C, and Input D
Notes
• A REF-1801 HD/SD frame reference module, the second power supply, and
a second GPI-1501 module are optional. See Cards on page 2, to review the
card distribution of your Kaleido-MX (3RU) housing frame.
• Removing more than one input card at a time from a Kaleido-MX system in
operation is not supported.
