Cabling Diagram

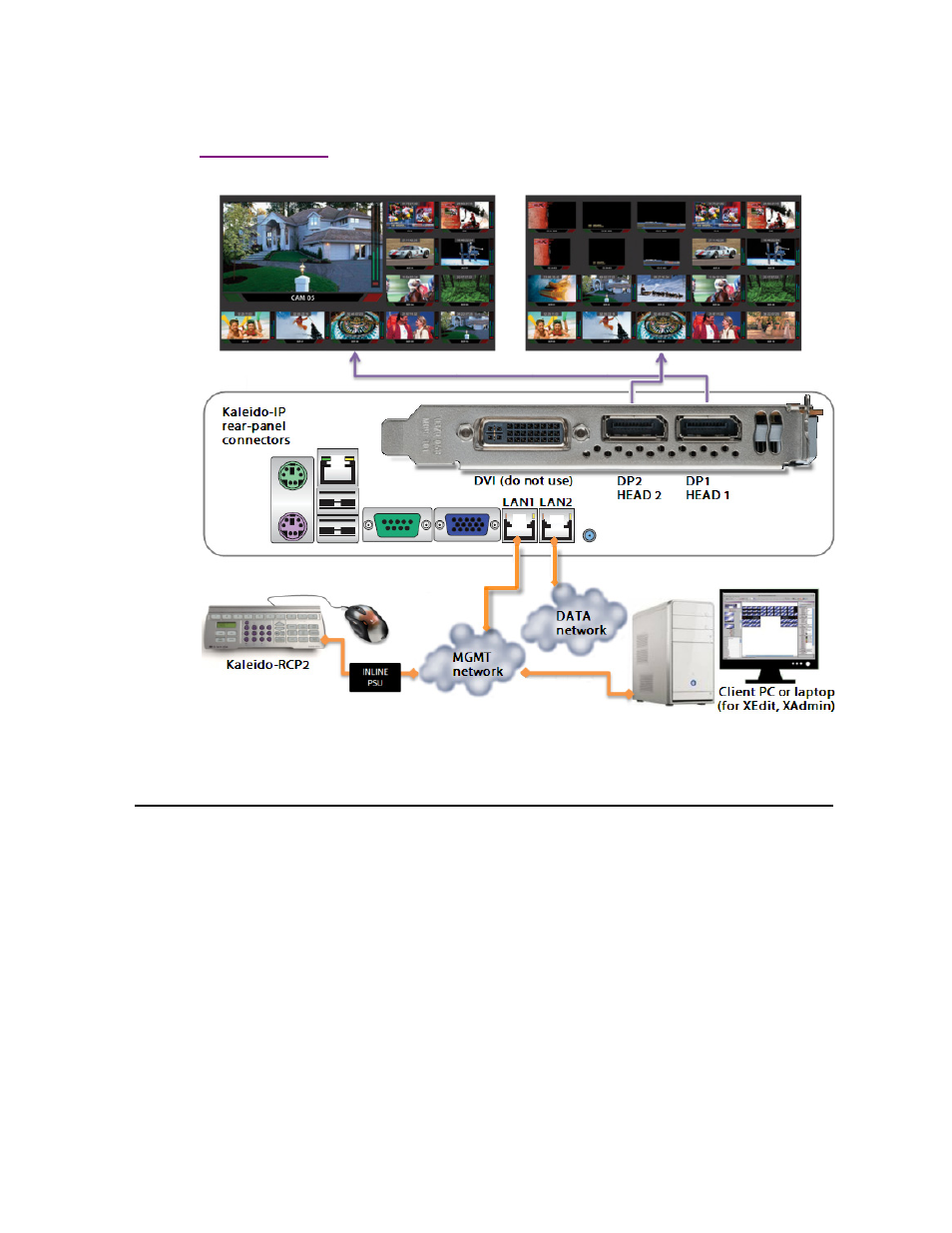

Cabling diagram for a Kaleido-IP with two network adapters.
The Kaleido-IP-4 model has two additional DATA ports (LAN3, LAN4).

Step 2: Networking Setup

The Kaleido-IP multi-viewer must be configured with at least two IP addresses—one for the
management network (MGMT), and one for a data network (DATA)—, corresponding network mask and
gateway settings, and a system name. The Kaleido-IP-4 model requires up to four IP addresses. In addition,
a client PC must be configured to communicate with the multi-viewer (within the management network).
You must also configure any Kaleido-RCP2 units you may have ordered.

The Kaleido-IP is shipped with the following default settings:
