18 K2 Lx0 RAID Instruction Manual July 31, 2008
Chapter 1 About the K2 Lx0 RAID

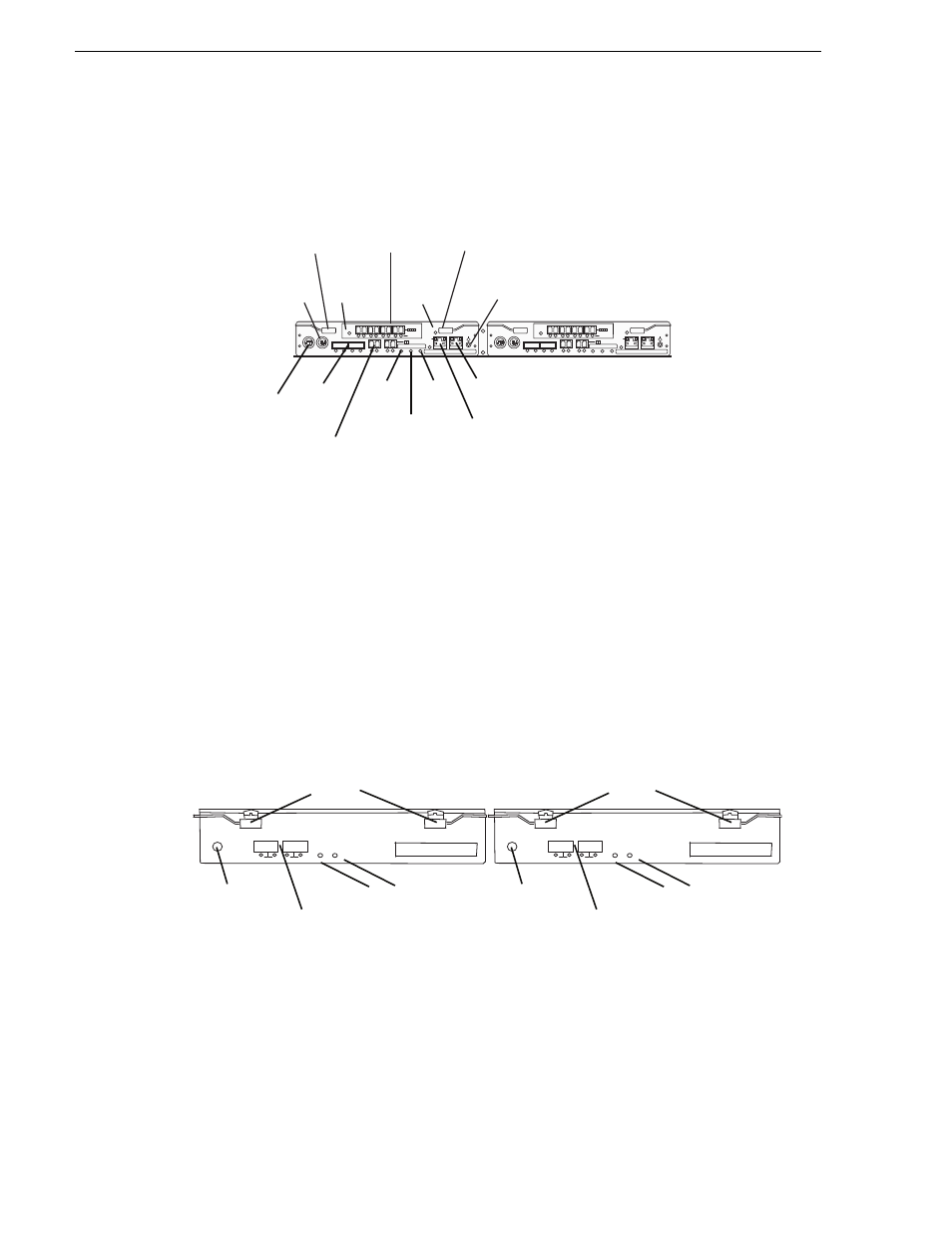

The following figure shows a K2 Lx0 RAID with the two RAID controller modules.
The RAID controller module has two host ports (HP0/HP1) and two Expansion
Chassis SAS ports (DL1/DL0). The Host ports require LCC cables (optical) for the
Fibre Channel connection to a K2 Media Server or to a Fibre Channel switch. The
Expansion Chassis Ports require SAS cables
for the SAS connections with a K2 Lx0
Expansion Chassis. There are two port status LEDs for each Host port and each SAS
port. Refer to
“Interpreting controller status LEDs” on page 35 .
When the redundant controller option is not installed in the K2 Lx0 RAID Storage
Chassis, a blank fills the other RAID controller slot.
K2 Lx0 Expansion RAID Expansion Chassis circuit board modules
The K2 Lx0 Expansion RAID Expansion Chassis has two expansion adapters as
shown in the following figure.
The expansion adapter in the K2 Lx0 Expansion has two SAS ports: DP-IN and
DP-OUT. SAS cabling connects the DP-IN port to a K2 Lx0. There are two port status
LEDs for each SAS port. Refer to
“Interpreting expansion adapter status LEDs” on
page 38 .
BBU IN MODEM
FLT/LNK
HPE FLT
A/L
BACKUP
ACT/LNK
LNK/ACT
FLT
HP 5 4 3 2
RDY
LAN
BAT
MNT
ACS MC DP1 DP0 HP
1 0
BBU IN MODEM
FLT/LNK
HPE FLT
A/L
BACKUP
ACT/LNK
LNK/ACT
FLT
HP 5 4 3 2
RDY
LAN
BAT
MNT
ACS MC DP1 DP0 HP
1 0
Modem
Connector
Ejector
HPE
Fault LED
HPE
BBU
Fault LED
Ejector
Power
Button
Extended BBU
Connector
SAS
Connector
HP Connector
LAN
Connector Fault
LED
Ready
LED Backup
LED MNT
Connector
RAID
Controller1 RAID
Controller 0
FLT RDY FLT/LNK
PS
FLT CLR
DP-OUT DP-IN
Ejectors
PS Fault Clear Fault LED Ready LED
SAS Connector
FLT RDY FLT/LNK
PS
FLT CLR
DP-OUT DP-IN
Ejectors
PS Fault Clear Fault LED Ready LED
SAS Connector
Expansion Adapter 1 Expansion Adapter 0
