GUIDE TO INSTALLATION AND OPERATION
16 | FIO-1901-RR
Overall alarm and GSM contribution follow card LED
Click in the checkbox to force the Overall alarm and GSM contribution to be identical to the Card LED status
• All Overall alarms and GSM contributions for which there is a Card LED alarm will be forced to match the Card
LED alarm
• All Overall Alarms and GSM contributions for which there is no Card LED alarm will be forced to Disabled
A warning box will open allowing you to confirm the action,
since it will result in changes to the configuration and there
is no undo function.
Copy to other cards
Click this button to open a panel that allows the
alarm configuration set for this card to be copied
into another FIO-1901-RR card.
• Select one or more destination cards from
the list in the window by clicking in the
checkboxes, or all of them by clicking in the
All checkbox

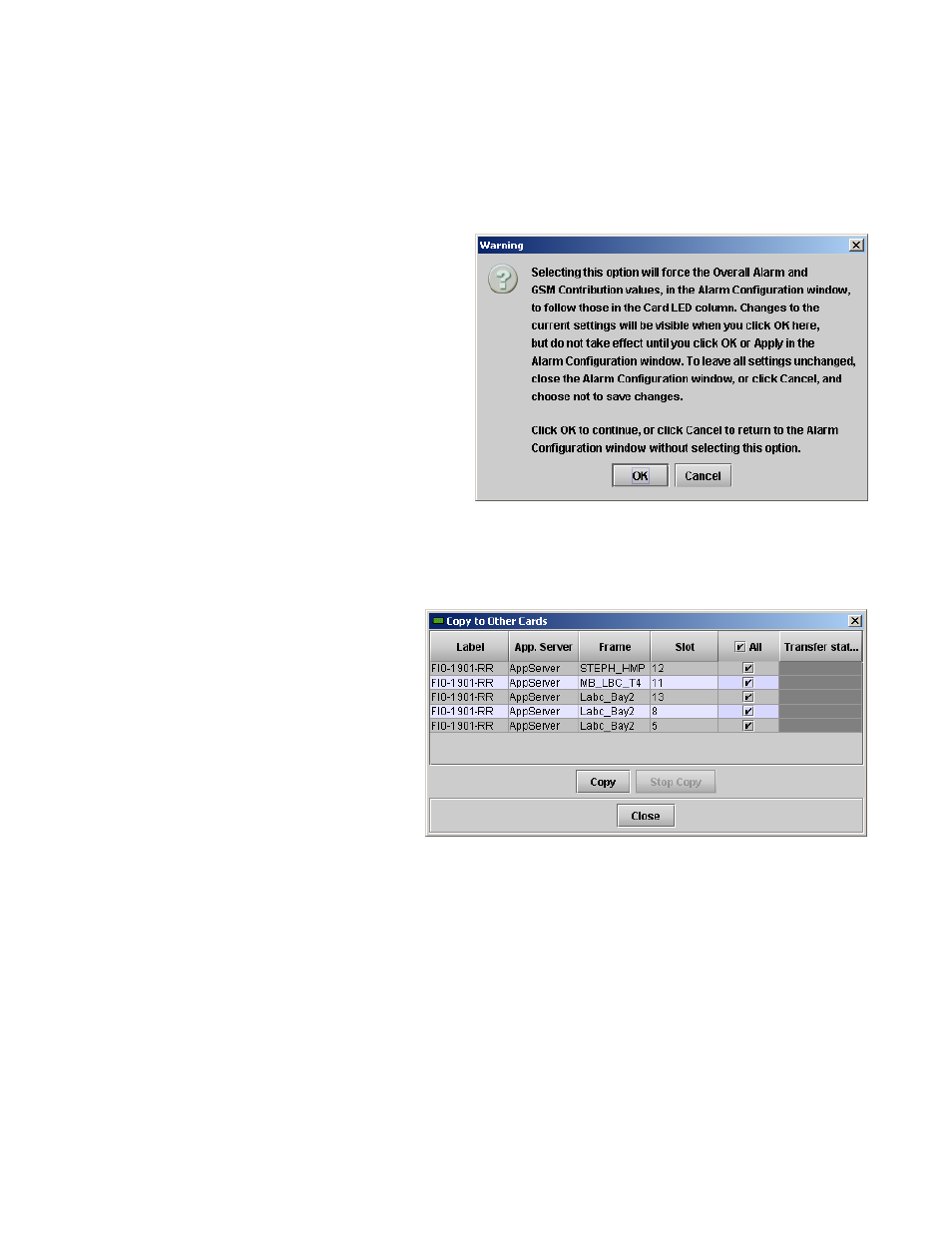

Figure 3.10 Warning for Follow LED change
Figure 3.11 Copy to Other Cards
