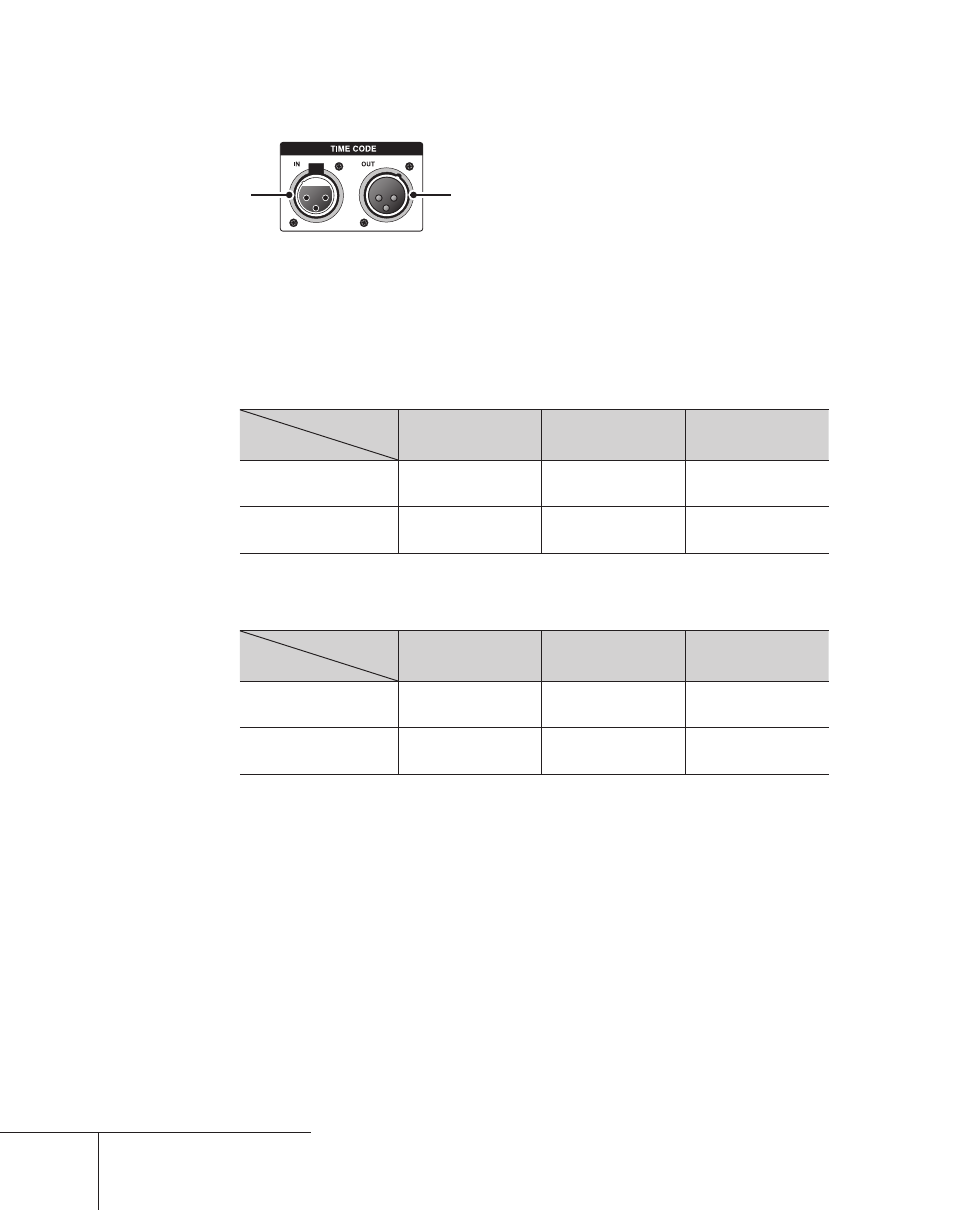

[11] Timecode I/O part
2 1
1 TIME CODE IN (XLR)
LTC input.
2 TIME CODE OUT (XLR)
LTC output.
* In case of HDBX-1000H or HDBX-1000S + HDBX-UG
Specifications for REF input terminal
Output device
Input terminal
RX-E1
SD NTSC / PAL
RX-E1
HD 60Hz / 50Hz
RX-E1
HD 24Hz *SD
SD REF IN input
(Black burst input)
  Not supported
HD REF IN input
(Tri-level sync input)
 
Specifications for REF input terminal (with the internal SG
syanc set)
Output device
Input terminal
RX-E1
SD NTSC / PAL
RX-E1
HD 60Hz / 50Hz
RX-E1
HD 24Hz *SD
SD REF Out
(Black burst output)
  Not supported
HD REF Out
(Tri-level sync output)
 Not supported
* Only the tri-level sync (24PsF / 23.98PsF) supports the REF for 24PsF / 23.98PsF, and
the lock is not performed by the black burst.
HD REF IN is only available on EDIUS HD.
Tri-level sync generation for HD (24PsF / 23.98PsF) is available by using HDSC1 (Firm
Ver.1.01.000).
RX-E1HD 60Hz / 50Hz = 1080 59.94i / 50i / 29.97PsF / 25PsF
RX-E1HD 24Hz = 1080 24PsF / 23.98PsF
