Grass Valley EDIUS 5 - Manual (Page 32)

0

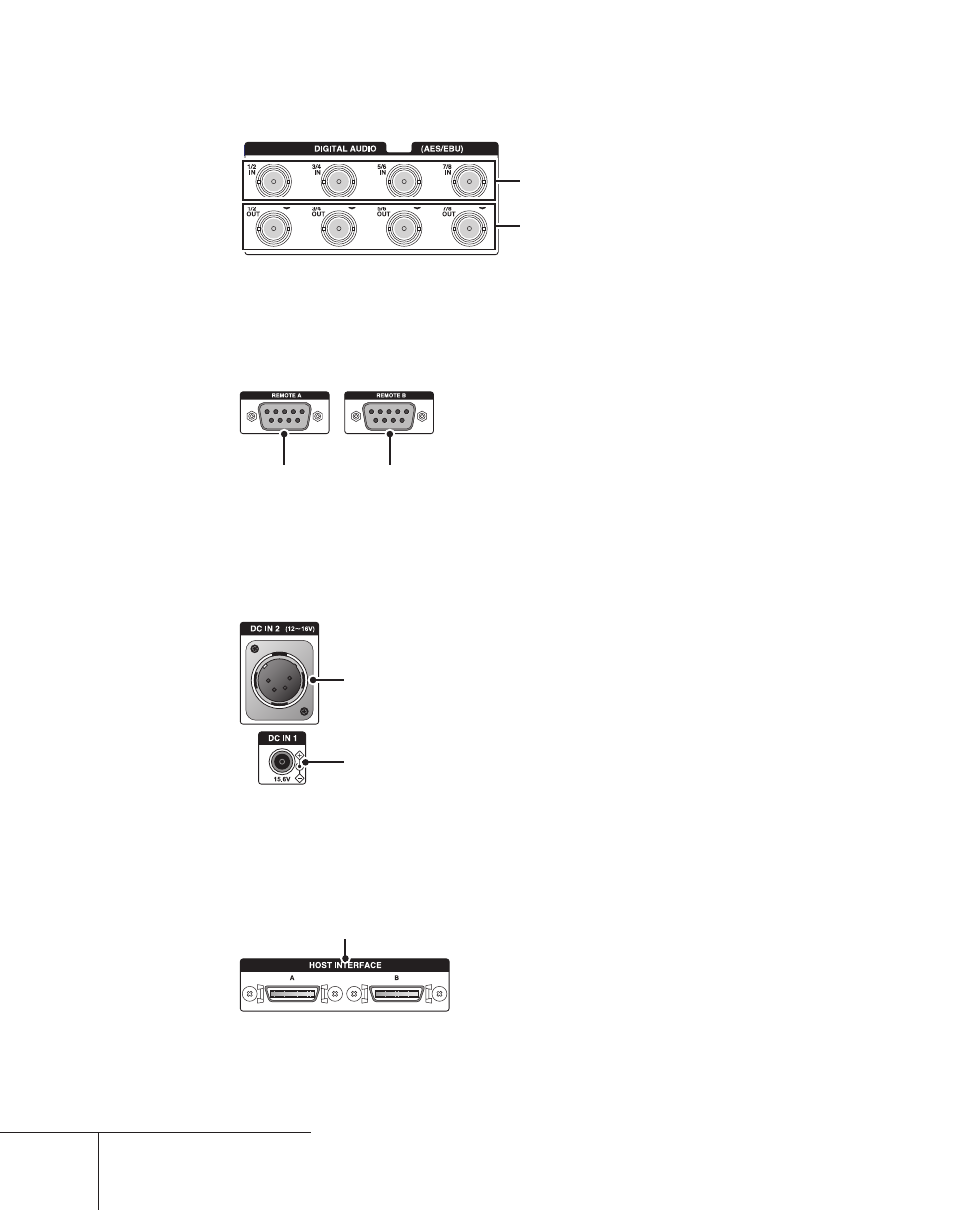

[4] Digital audio I/O part
1
2
1 DIGITAL AUDIO (AES/EBU) (1/2 IN / 3/4 IN / 5/6 IN / 7/8 IN) (BNC x 4)
AES/EBU audio input.
2 DIGITAL AUDIO(AES/EBU)(1/2 OUT / 3/4 OUT / 5/6 OUT / 7/8 OUT) (BNC x 4)
AES/EBU audio output.
[5] Connecting to external device (VCR) part
1 2
1 REMOTE A (D-SUB9Pin)
Used for remote connection A.
2 REMOTE B (D-SUB9Pin)
Used for remote connection B.
[6] Power part
1
2
1 DC IN 2 (12V to 16V)
Used for power unit of business-use VTR and camcoder. Not normally used.
2 DC IN 1 (15.6V)
Used for connecting AC adapter (attached). This is normally used.
[7] Connecting to external device (HDBX-1000H) part
1
1 HOST INTERFACE (HDBX connecting digital terminal A / B)
Used for connecting to workstation with the attached HDBX connecting digital
cables.
