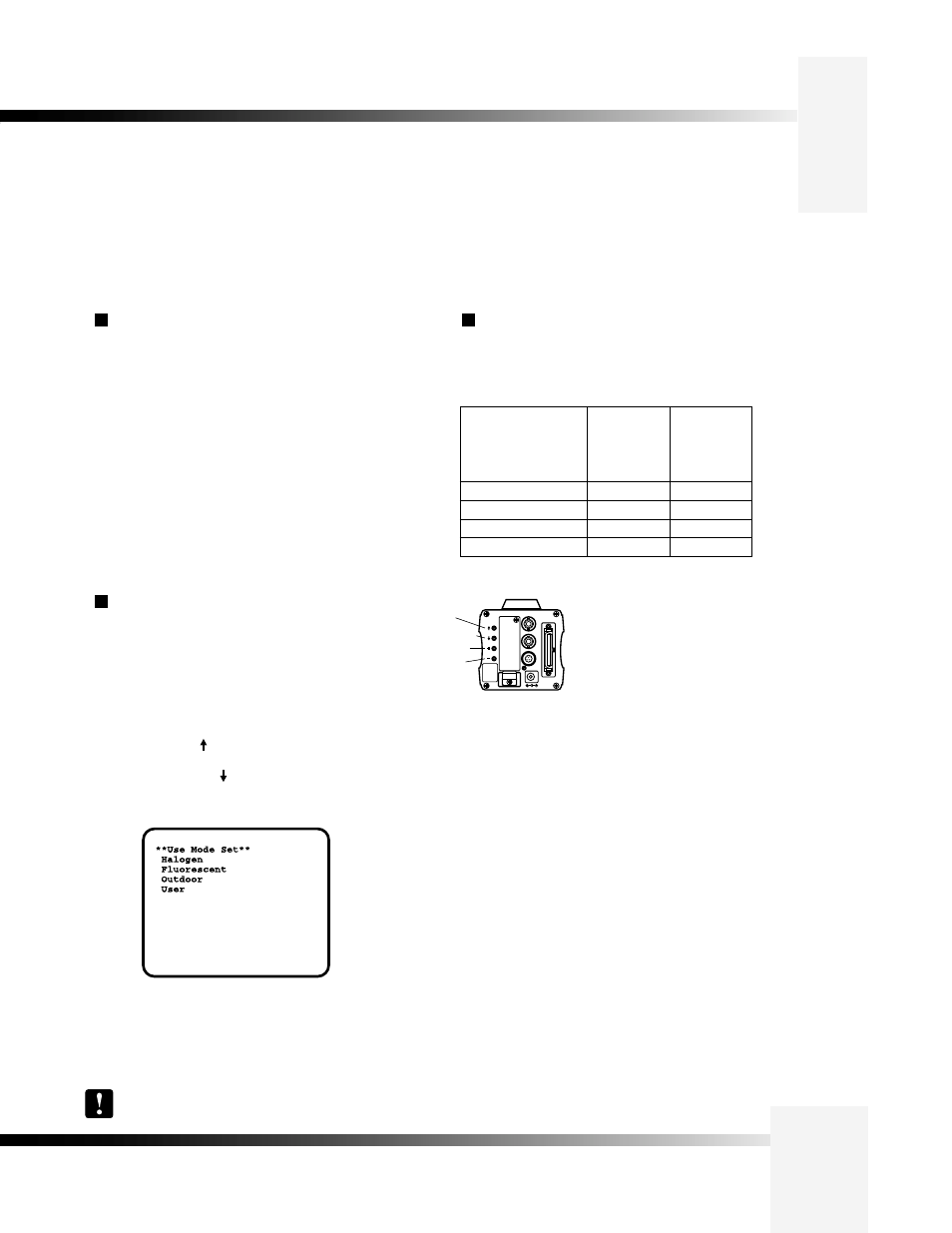

Appendix H: On-Screen Camera Menus
The 3-CCD DIGITAL Camera allows for adjustments to the camera settings via on-screen
menus by using the controls on the back of the camera block, the Camera Control
Keypad, or PVTV DIGITAL SHOT Director. These adjustments should be performed by
qualified technical personnel only. If your system includes a DIGITAL SHOT Director,
always use the DIGITAL SHOT Director’s LCD menus to make these adjustments.
Use Mode Setting
The camera has four use modes, and various functions
for four use modes have been preset.
Functions can be set as best suited to each use mode.
• Halogen mode
Suited to indoor shooting, such as at weddings, par-
ties, lecture meetings, events, etc.
Settings can be changed using a simple menu.
• Fluorescent mode
Suited to indoor shooting under fluorescent lighting.
Settings can be changed using a simple menu.
• Outdoor mode
Suited to outdoor shooting.
Settings can be changed using a simple menu.
• User mode
Settings can be changed using a detail menu.
SETTING BY CAMERA
1. Turn the camera on while keeping the MENU switch
depressed.
The use mode setting menu shown at right appears
on the monitor screen and one of the use mode
blinks.
2. Press the MENU switch, ITEM/AWC switch, or
NO/BAR switch to let the desired use mode blink.
MENU switch (
): The blinking item moves up by
one.
ITEM/AWC switch ( ), NO/BAR switch (–): The blink-
ing item moves down by one.
3. Press the YES/ABC switch.
The blinking use mode comes into effect. After the
use mode setting menu is shown for about 5 sec-
onds, the camera returns to be ready for operation.
Then, the camera operates in the selected use mode.
P O W E R
O P E R AT E
B A R
C A M
M O D E
G A I N A W C
SCENE
FILE
A B C
A T W
A
B
AUTO/AIW
E L C
L O W
M I D
M A N U
O N S C H
O F F
H I G H A G C
O F F
1 / 1 0 0
S H U T T E R
O N
O F F
1 . 2 . 3 .
4 .
G / L P H A S E
T. P E D C A B L E C O M P
9 0 ° 1 8 0 °
0 ° 2 7 0 °
Y C
SCENE FILE Switch
Operation mode
SETTING BY RCU (RCB) OR HYBRID
CONTROL PANEL
An operation mode is selected depending on the position
of the scene file switch.
Halogen Mode
Fluorescent Mode
Outdoor Mode
User's Mode
Scene File
Switch
Position of
RCU (RCB)
1
2
3
USER SET
Scene File
Switch
Position of
Hybrid control
panel
1
2
3
4
VIDEO OUT
G/L IN
I/F REMOTE
OPTION CARD
IRIS
DC12V IN
MENU
ITEM/AWC
YES/ABC
NO/BAR
MENU R B
R B PED
TOTAL
PED
A
B
ATW
AWC
AUTO
HOLD
ABC
IRIS
MAN
AUTO
1000 S/S
ELC
500 100
OFF
SHUTTER SCENE
2 1
3
USER
SET
AUTO/ATW PAINTING
GAIN
ITEM/AWC
YES/ABC
NO/BAR
SCENE
FILE
Switch
CAMERA RCU (RCB)
Hybrid Control Panel
On-screen menu items can only be viewed by connecting to the analog VIDEO OUT connector on the rear of the
camera block.
