GUIDE TO INSTALLATION AND OPERATION

ADX-1901 | 5

2.4 Rear Panels and Connectors

2.4.1 Images of Rear Panel Connectors

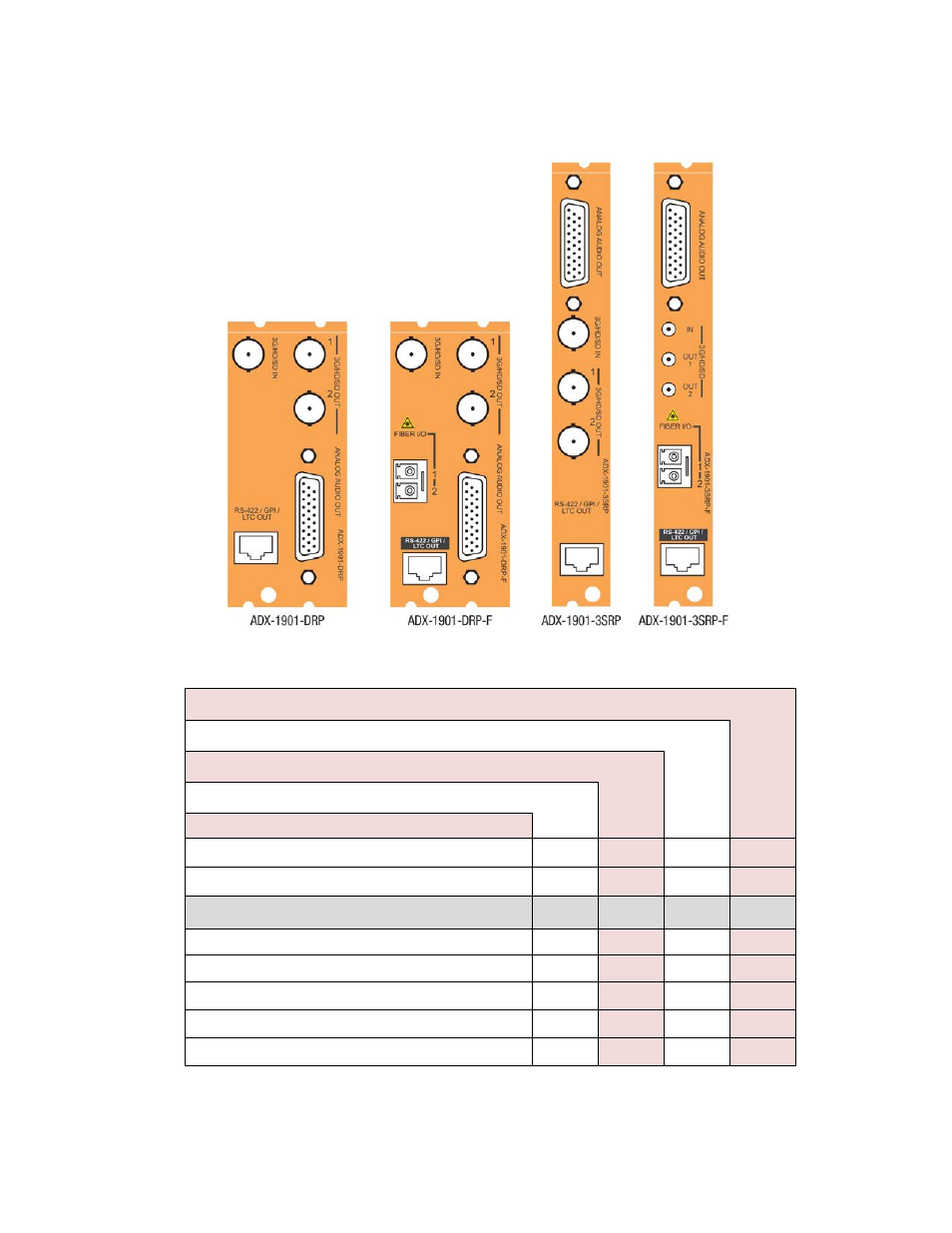

The four available rear panels are shown in the figure.
Details of the inputs and outputs are described below.



















2.4.2 Summary of rear panel connections

ADX-1901-3SRP

ADX-1901-3SRP-F

ADX-1901-DRP

ADX-1901-DRP-F

Single-slot-width panel

♦

♦

Double-slot-width panel

♦

♦

CONNECTORS

3G/HD/SD IN

1

1

1*

1

3G/HD/SD OUT

2

2

2*

2

Analog Audio OUT on D-SUB

8

8

8

8

2 GPI OUT, LTC OUT & RS-422 OUT on RJ45

yes

yes

yes

yes

Fiber I/O module

yes

yes

* DIN1.0/2.3 connectors on ADX-1901-3SRP-F panel; BNC connectors on all other panels.
