Grass Valley 8916 - Manual (Page 17)

8916 Instruction Manual 11
Configuration
For an AES/EBU signal the FINE delay increments are 2 ms (1/16 video
frame), and the COARSE delay increments are 32 ms (one video frame).
Any settings selected will default to the nearest 2 ms or 32 ms increment.
Each adjustment can select up to 15 times its increment to create a total
delay of approximately 510 ms.

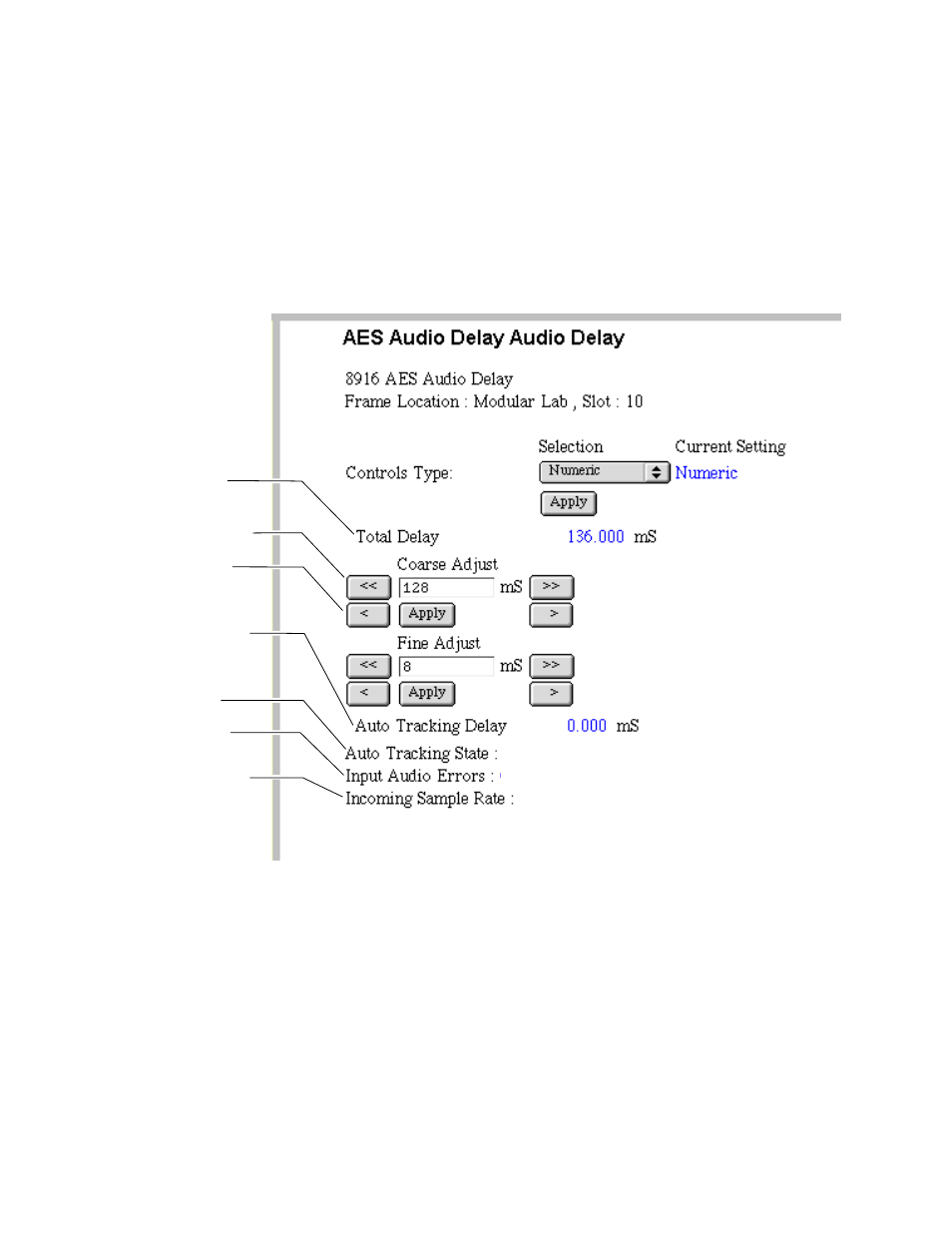

Figure 8 illustrates the Audio Delay display in numeric adjustment mode.
Figure 8. Audio Delay Display, Numeric Mode
Set the amount of delay in Numeric mode by entering a number in the
Coarse Adjust and Fine Adjust boxes or use the arrow keys to change the
values. The number will default to an increment of 2mS (Fine) or 32 mS
(Coarse). The single arrows will increment the value by 1x and the double
arrows will increment the value by 10x.
Note Numeric displays are for approximate values only. Calculation of displayed
values are subject to decimal place truncation. Variation from the absolute
value increases at higher values.
Use the Apply button to make the selections active.
48K
AUDIO OK
DISABLED
Indicates state of
auto tracking
Indicates amount of
auto tracking delay
from Delay Input (J7)
Indicates input
audio error status
Indicates Incoming
Sample Rate
Coarse Adjust (10x)
Fine Adjust (1x)
Indicates total
amount of delay
