10 8916 Instruction Manual
8916 AES/EBU Auto-Tracking Delay DA
The 8916 will indicate a SMPTE Alarm fault on the Frame Status display for
the following alarms:
■ Lack of valid audio input,
■ Internal Fault, or
■ Board Failure.
Module Configuration Displays
The 8900 GUI provides the following links and displays for the 8916
module. The module name shown in
Figure 7 is “AES Audio Delay 3” (slot
number and module type). The name is user determined and is assigned
using the module’s Configuration display. The four module configuration
displays provide:
■ Module operational status information,
■ Module properties (part and version numbers),
■ Module configuration information (location and user assigned names),
and
■ Software update (file transfer).
These displays are the same for all remote controllable 8900 modules. Refer
to the 8900NET manual for more information on these displays. Some func-
tions listed may not be supported by a particular module. These will be
indicated as not supported.

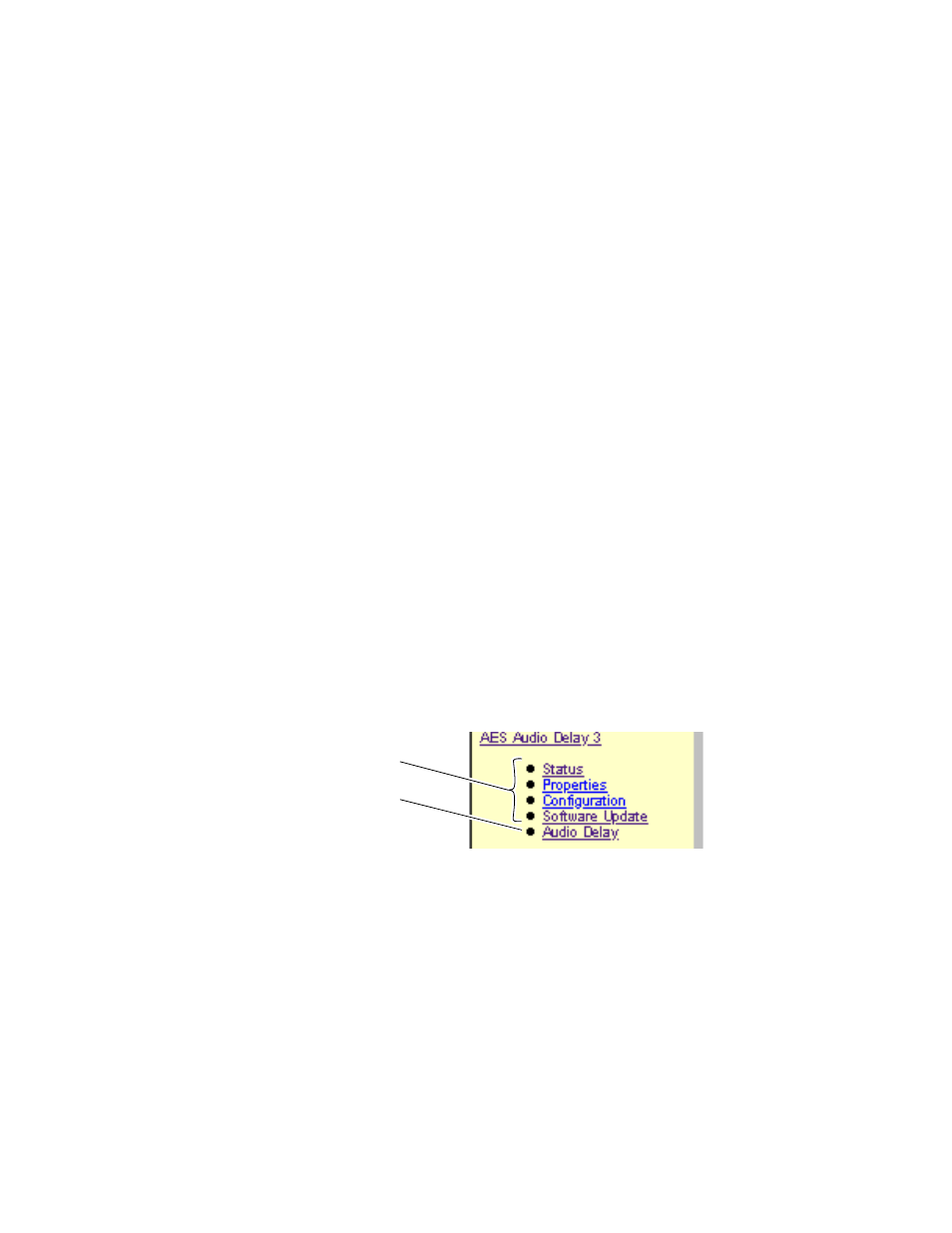

Figure 7. 8960DEC Display Links
Signal Configuration Display
This section discusses the Audio Delay display in the Signal Configuration
Display section used to set the amount of audio delay required in the 8916
module. You may set the audio delay using either the Numeric (
Figure 8 )
or Slider ( Figure 9 ) adjustment mode. In either display mode, the changes
do not take place until the Apply button is clicked and the display is
refreshed.
Module Configuration
Displays
Signal Configuration
Display
