6 8916 Instruction Manual
8916 AES/EBU Auto-Tracking Delay DA

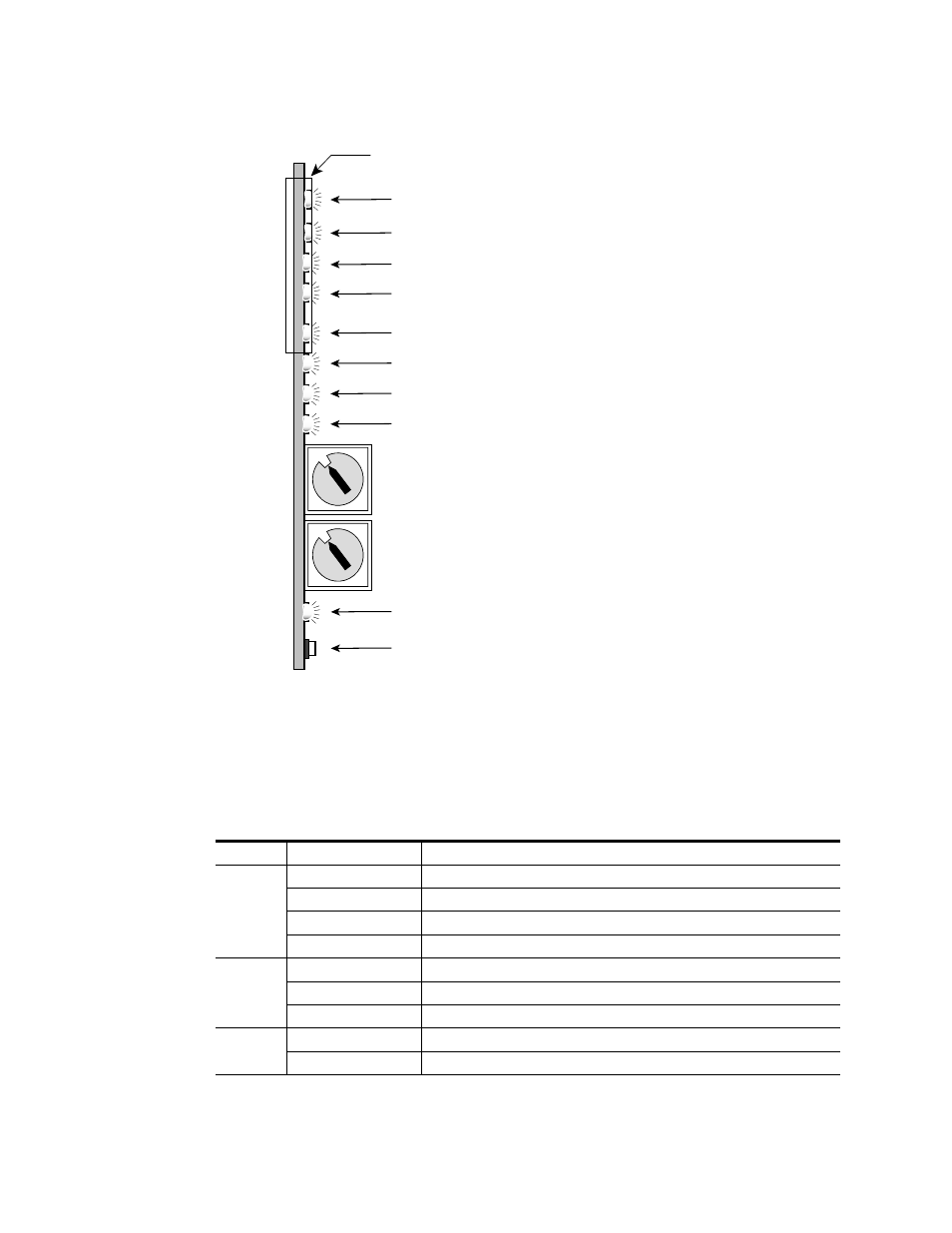

Figure 4. LEDs and Configuration Switches
A red FAULT LED indicates an error situation and, with the previously
described LEDs, can indicate the operational conditions presented in
Table 2 . The table describes signal output and LED indications for various
input/reference combinations and user settings.
Table 2. Indicator LEDs and Conditions Indicated
LED Indication Condition
Fault
(red)
Off Normal operation
On continuously Module has detected internal fault
Long flash Configuration problem: Check inputs and settings
Short flash CRC (cyclic redundancy check) error detected
COMM
(yellow)
Off No activity on frame communication bus
Long flash Location Command received by the module from a remote control system
Short flash Activity present on the frame communication bus
CONF
(yellow)
Off Module is in normal operating mode
On continuously Module is initializing, changing operating modes or updating firmware
Coarse Delay Adjust
Rotary switch
32 kHz – Green LED on indicates lock to a 32 kHz signal
PWR – Green diagnostic LED on indicates power OK
FAULT – Red diagnostic LED is off during normal operation
Ejector Tab
COMM – Yellow LED on during remote control communication
CONF – Yellow LED on when module is initializing or
processing control data
44.1 kHz – Green LED on indicates lock to a 44.1 kHz signal
48 kHz – Green LED on indicates lock to a 48 kHz signal
TRACK – Green LED on indicates auto delay is being added to the fixed delay
GND
REMOTE OVR – Yellow LED on indicates local switches and
jumper settings are overridden by remote control
0585_06
0
1
2
3 4
5 6 7
8
9
A
B
CD E
F
Fine Delay Adjust
Rotary switch
0
1
2
3 4
5 6 7
8
9
A
B
CD E
F
