9
Part Names and Functions
Part Names and Functions

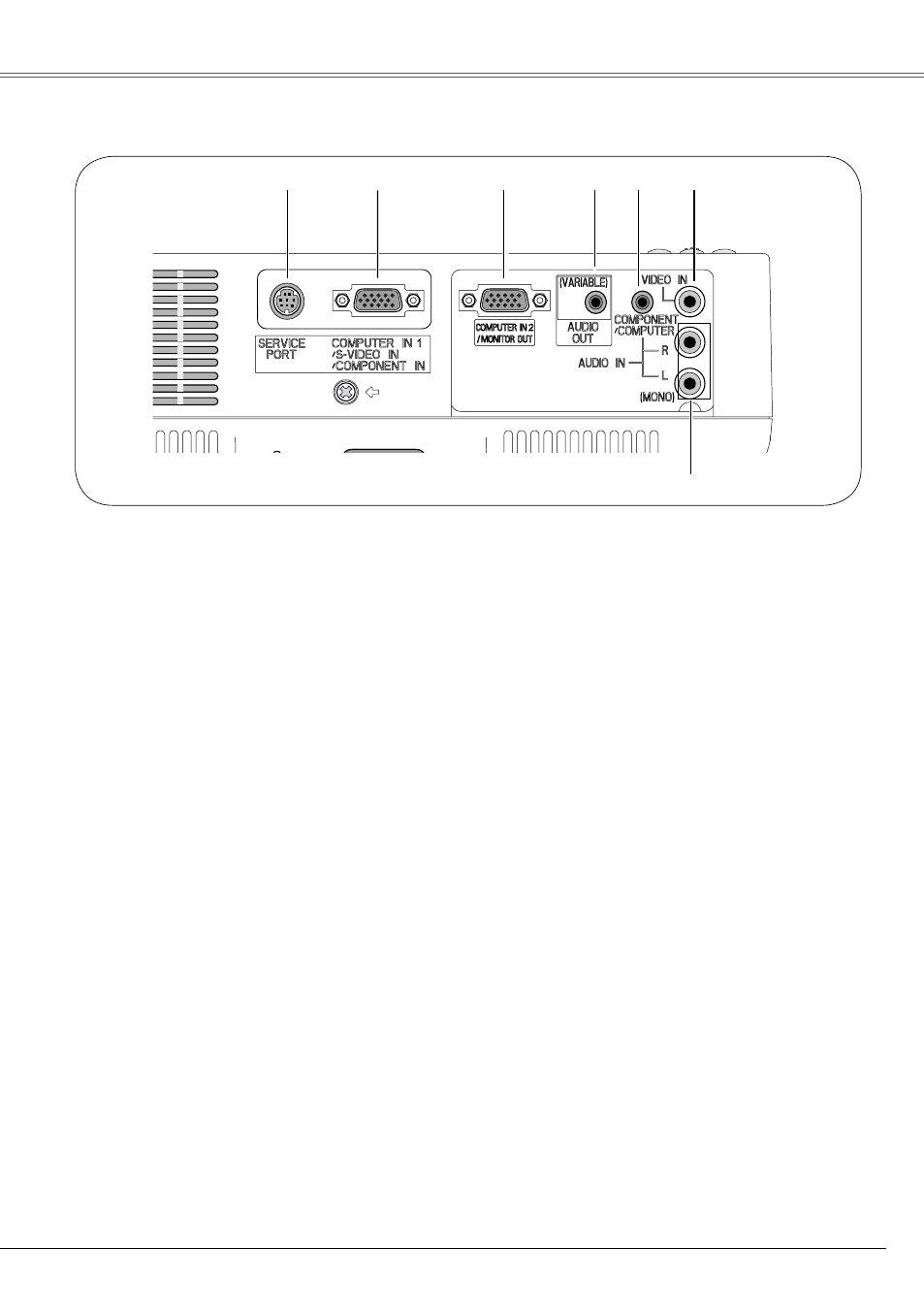

Rear Terminal
①
SERVICE PORT
This jack is used to service the projector.
②
COMPUTER IN 1 / S-VIDEO IN
/COMPONENT IN
Connect output signal from a computer,
RGB scart 1-pin video output, S-VIDEO
output, or component video output to this
terminal. (p.15-17)
When the cable is of the longer variety, it
is advisable to use this terminal and not
COMPUTER IN / MONITOR OUT.
④
AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this
jack. (p.15 - 17)
This terminal outputs sound from AUDIO IN
terminal (
⑤
or
⑦
).
⑥
VIDEO IN
Connect the composite video output from
video equipment to VIDEO jack. (p.16)
⑦
AUDIO IN
C o n n e c t t h e a u d i o o u t p u t f r o m v i d e o
equipment connected to
②
or
⑥
to this
jack. (When the audio output is monaural,
connect it to L (MONO) jack.) (p.16)
⑤
COMPONENT / COMPUTER AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to
②
to this jack. (p.15, 17)
③
COMPUTER IN 2 / MONITOR OUT
This terminal is switchable and can be used
for input from a computer or output to other
monitor. (p.15)
Set up this terminal as either Computer
input or Monitor output as required.
This terminal only outputs the computer
R G B s i g n a l f e d t o C O M P U T E R I N 1 /
S-VIDEO IN/COMPONENT IN terminal.
(p.15, 45)
① ② ③ ④ ⑤ ⑥
⑦
