Computer Input
8
Press the MENU button to display the On-Screen
Menu. Press the Point
◄► buttons to move the red
framed pointer to the PC Adjust Menu icon.
Press the Point ▲▼ buttons to move the red
framed pointer to the item that you want to adjust
and then press the SELECT button to display the
adjustment dialog box. Press the Point
◄► buttons
to adjust the value.
Manual PC Adjustment
Some computers employ special signal formats which may not be tuned by Multi-scan system of
this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match
those signal formats. The projector has 5 independent memory areas to memorize those parameters
manually adjusted. It allows you to recall the setting for a specific computer.
1
2
Press the Point ◄► buttons to adjust the value to
eliminate flicker from the image displayed. (From 0 to
31.)
Fine sync
Press the Point ◄► buttons to adjust the number of
total dots in one horizontal period to match your PC
image.
Total dots
Press the Point ◄► buttons to adjust the horizontal
picture position.
Horizontal
Press the Point ◄► buttons to adjust the vertical
picture position.
Vertical
Press the SELECT button to show H-sync freq. and
V-sync freq. of the connected computer.
Current mode
Press the Point ◄► buttons to adjust clamp level.
When the image has dark bars, try this adjustment.
Clamp
Move the red framed
pointer to an item and press
the SELECT button.

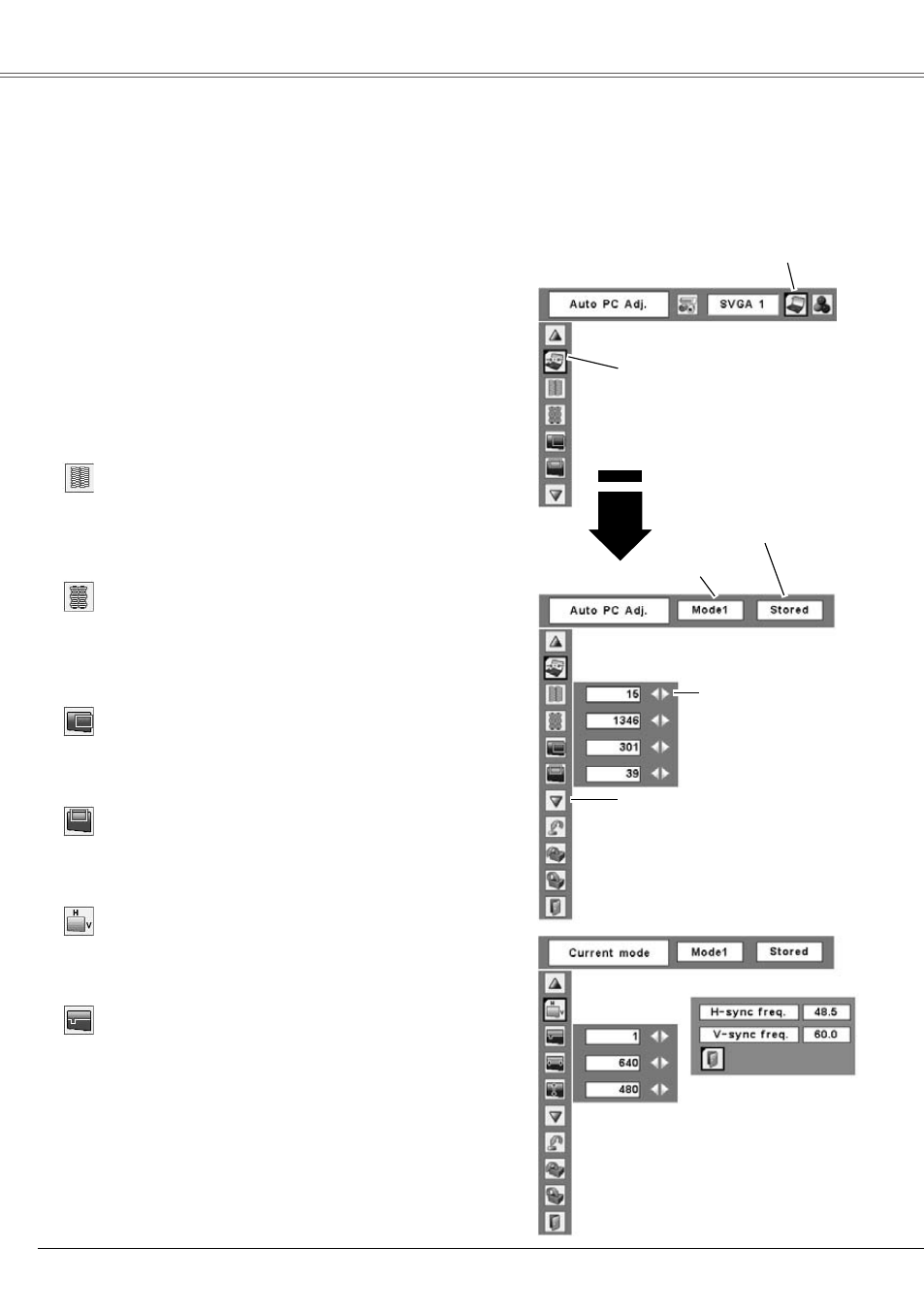

PC Adjust Menu
PC Adjust Menu icon
Press the SELECT
button at this item to
adjust other items.
Press the Point ◄►
buttons to adjust the
value.
Status (Stored/Free)
of the selected Mode.
Selected Mode
Press the SELECT button
at the Current mode item to
show the information of the
connected computer.
