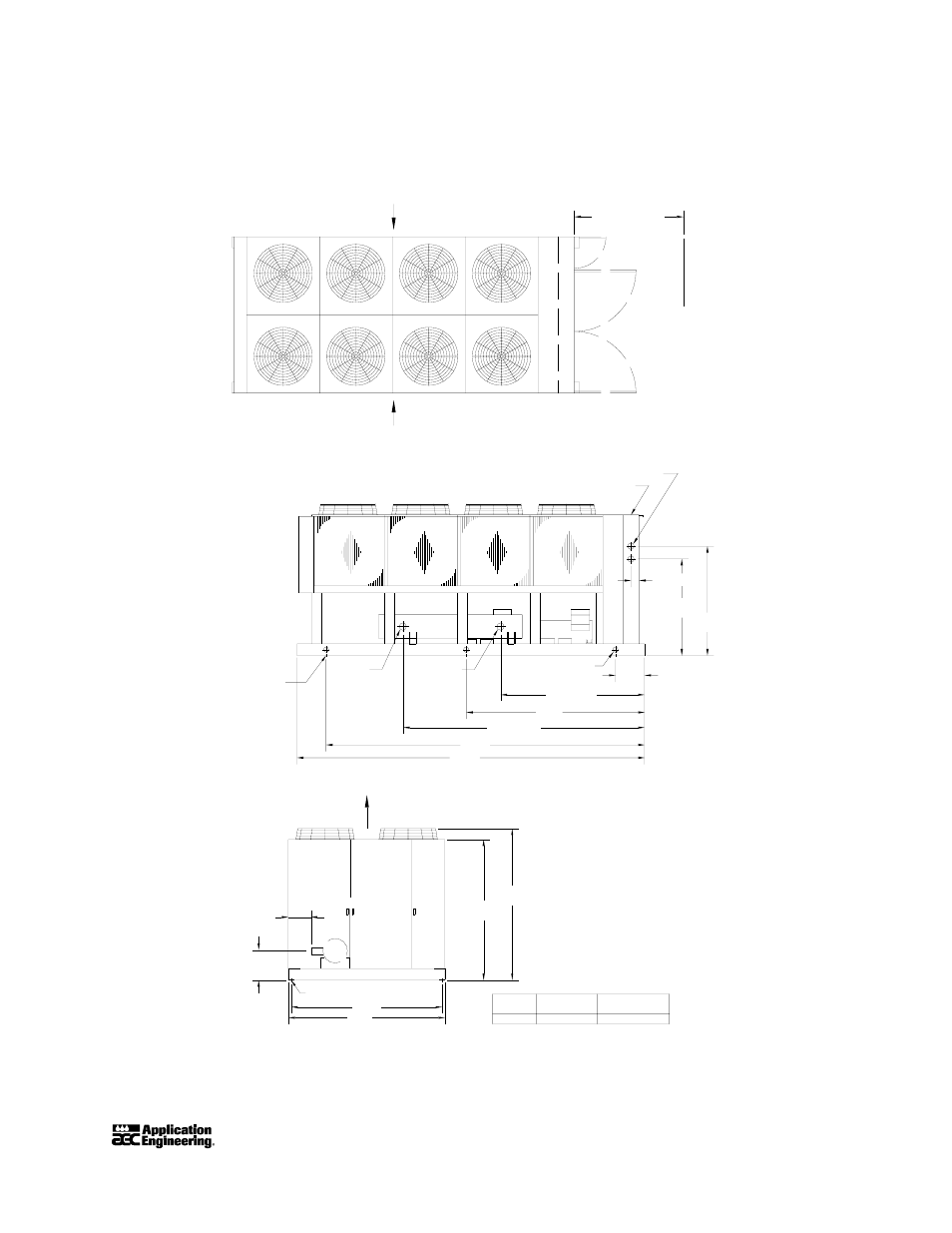

Figure 7
ACOA80 Outline Drawing
ACOA
80
MODEL MODEL
EVAP.
CHD01360 4" NPT
CONNECTION
WATER
175"
98"
16"
LIFTING HOLE
MOUNTING
LOCATION
CONTROL BOX
WATER WATER IN
191"
132-3/4"
79-1/4"
POWER ENTRY (SEE NOTE #4)
59-5/8"
52-5/8"
4-1/2"
OUT
ALLOW 60" FOR
SERVICE ACCESS
AIR FLOW
SIDE & BOTTOM
AIR FLOW
SIDE & BOTTOM
86"
CONTROL BOX
83-3/8"
77-3/8"
16-1/8"
AIR FLOW
83"
MOUNTING LOCATION
12-3/8"
NOTE:
1 - ALL DIMENSIONS IN INCHES.
3 - ALLOW 60" CLEARANCE AT CONTROL PANEL END OF UNIT FOR SERVICE.
4 - USE MINIMUM 36" FLEXIBLE CONDUIT TO CONTROL BOX TO ISOLATE UNIT.
5 - WATER PIPING TO BE SUPPORTED TO MINIMIZE LOAD ON UNIT.
6 - ALL DIMENSIONS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
2 - VENT AND DRAIN CONNECTIONS PROVIDED ON COOLER.
