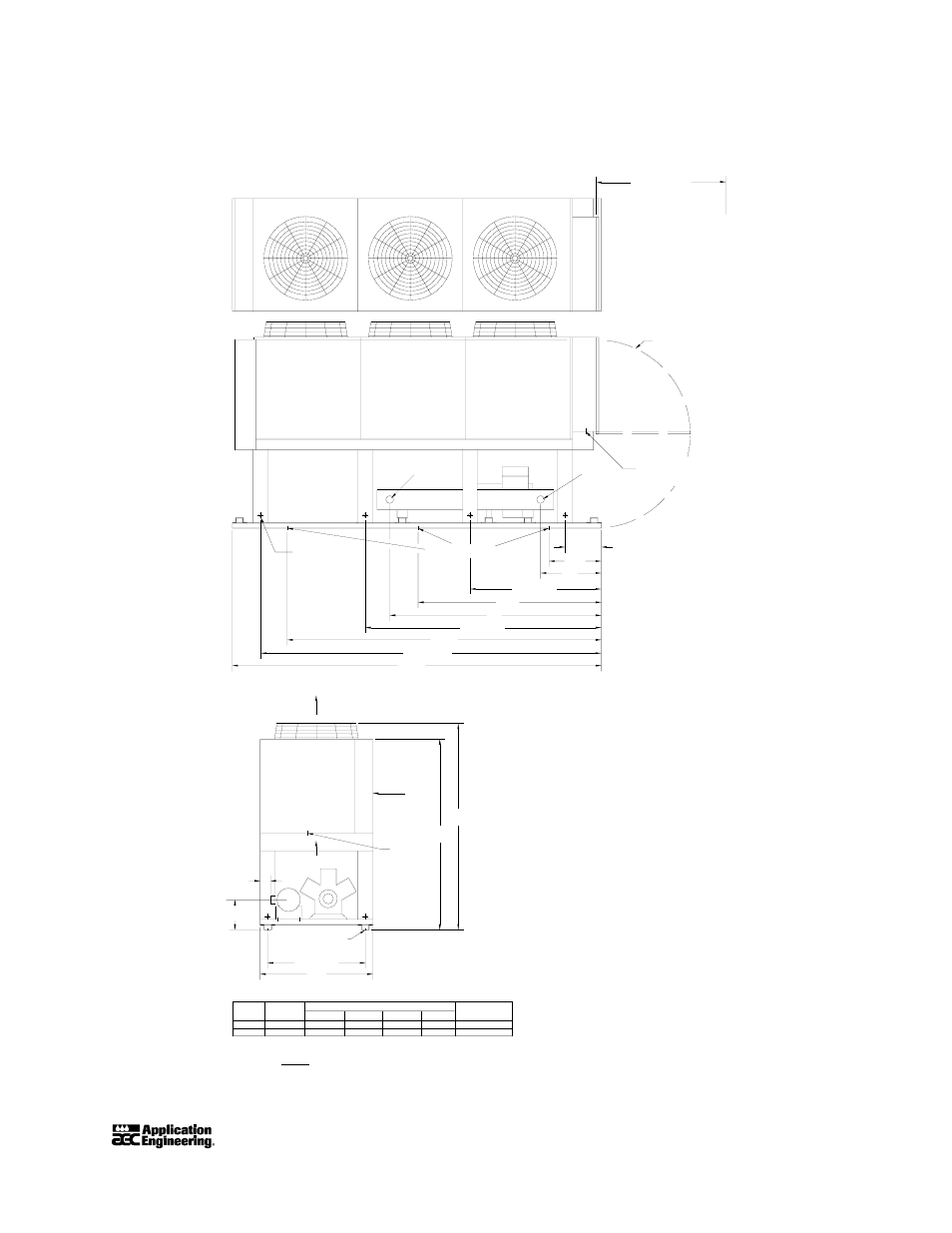

Figure 3
ACOA30 and ACOA35 Outline Drawing
ACOA
MODEL
EVAP
MODEL
`A' B'
WATER
CONNECTION
30 CHS00760
'C'
23-15/16" 80-1/16" 10-15/16" 3" N.P.T. 2-3/4"
DIMENSIONS
'D'
1-5/8" 25-1/4" 78-3/4" 11-1/2" 3" N.P.T. CHS00860 35
ALLOW 60" FOR
SERVICE ACCESS
CONTROL
BOX
73"
79"
POWER
AIR FLOW
AIR
FLOW
AIR FLOW
`C'
43"
37-5/16"
MOUNTING
LOCATION
ENTRY
`D'
20"
A
B
141"
WATER
OUT IN
WATER
MOUNTING LOCATIONS
POWER ENTRY
(SEE NOTE 4)
70"
120"
130-3/16"
90-3/16"
50-3/16"
13-13/16"
LIFTING
HOLE
DOOR SWING
NOTES:
1 - ALL DIMENSIONS IN INCHES.
3 - ALLOW 60" CLEARANCE AT CONTROL PANEL END OF UNIT FOR SERVICE
4 - USE MINIMUM 36" FLEXIBLE CONDUIT TO CONTROL BOX TO ISOLATE UNIT.
5 - WATER PIPING TO BE SUPPORTED TO MINIMIZE LOAD ON UNIT.
2 - VENT AND DRAIN CONNECTIONS PROVIDED ON COOLER.
6 - ALL DIMENSIONS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
