Installation guide – ACTi Outdoor Dome on Tilted Wall User Manual
Page 9
Installation Guide

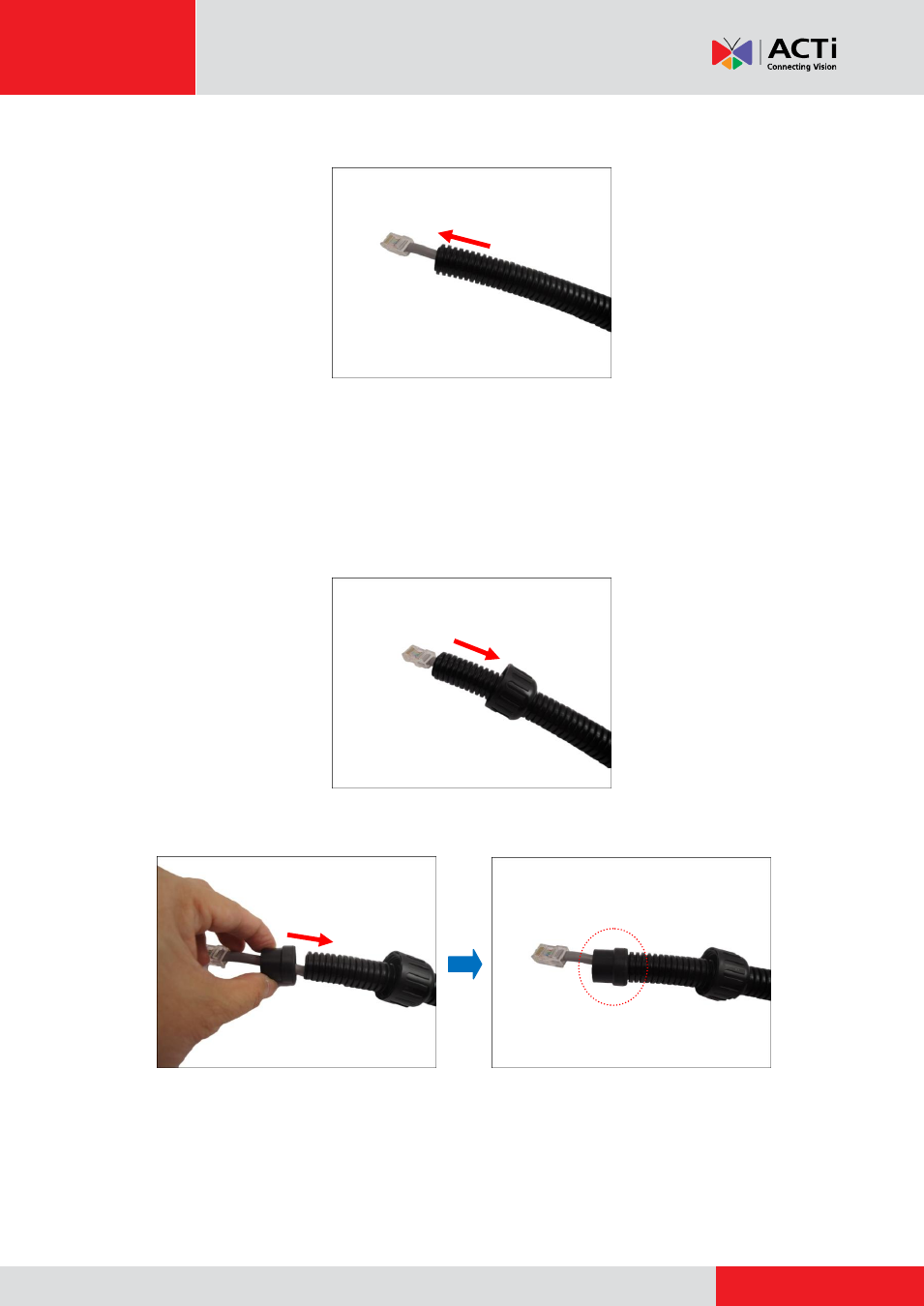

3.
Pull the network cable through the flex conduit.
NOTE:
For camera models that support external power adaptor, audio in/out, or digital
input/output (DI/DO) functions, route the cables without connectors through the flex conduit
together with the network cable. The connectors will be attached later after the cables pass
through the conduit hole of the camera.
4.
Insert the clamping nut through the flex conduit.
5.
Insert the sealing insert and attach it at the end of the flex conduit.
