Installation Guide
3
Installation Procedures

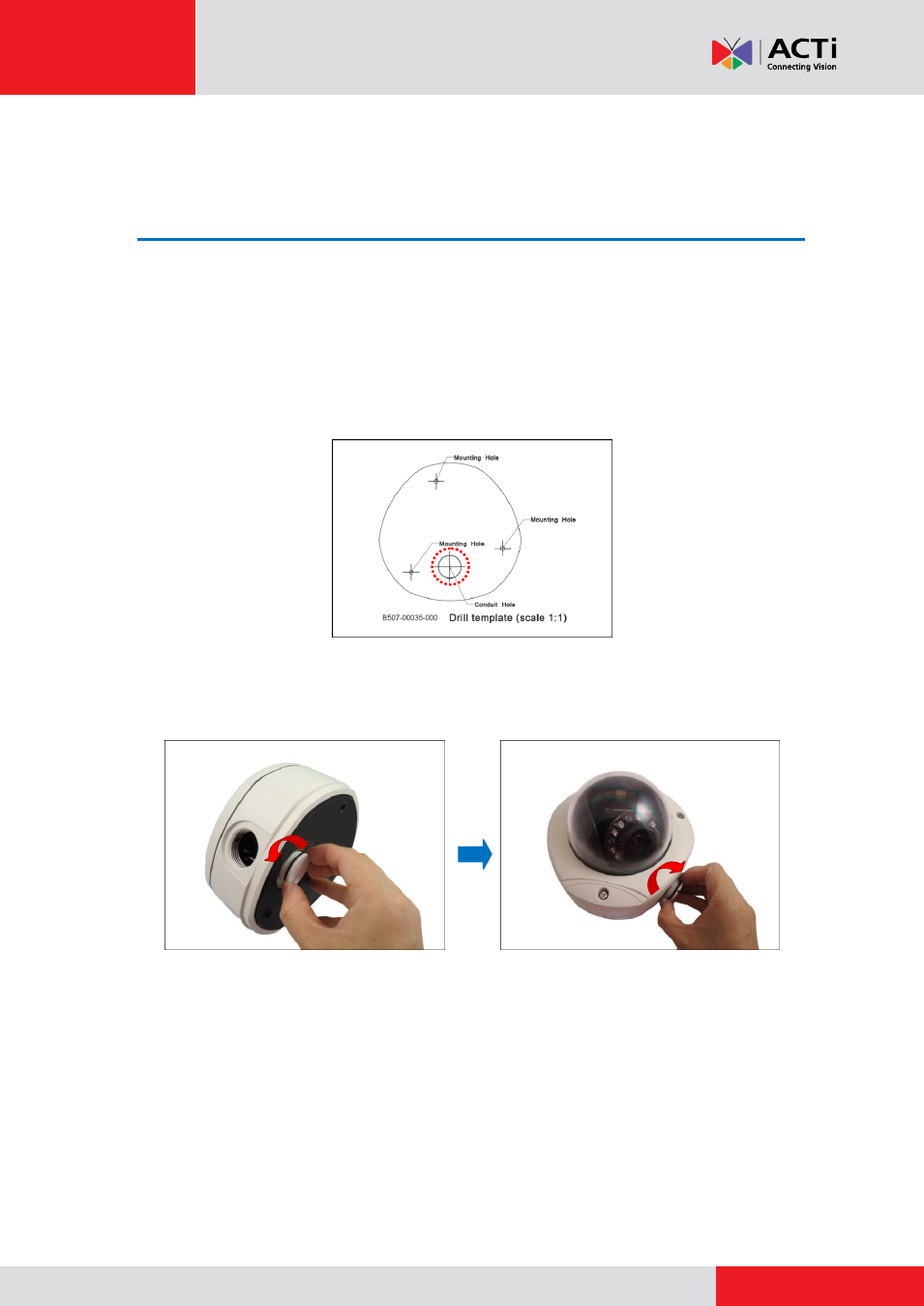

Step 1: Drill the Holes
1. Using the supplied drill template, mark the screw holes location on the wall, then drill the
holes and insert the plastic plugs.
2. Determine how the cables will be routed: pass through the wall or along the wall .

If the cables will pass through the wall :
a. Mark and drill the conduit hole location on the wall as shown on the drill template.
b. Remove the metal cap covering the bottom conduit hole of the camera, and
attach the cap to the side conduit hole to close it. Route the network cable to
pass this hole from the wall.

If the cables will be routed along the wall , skip to the next step.
