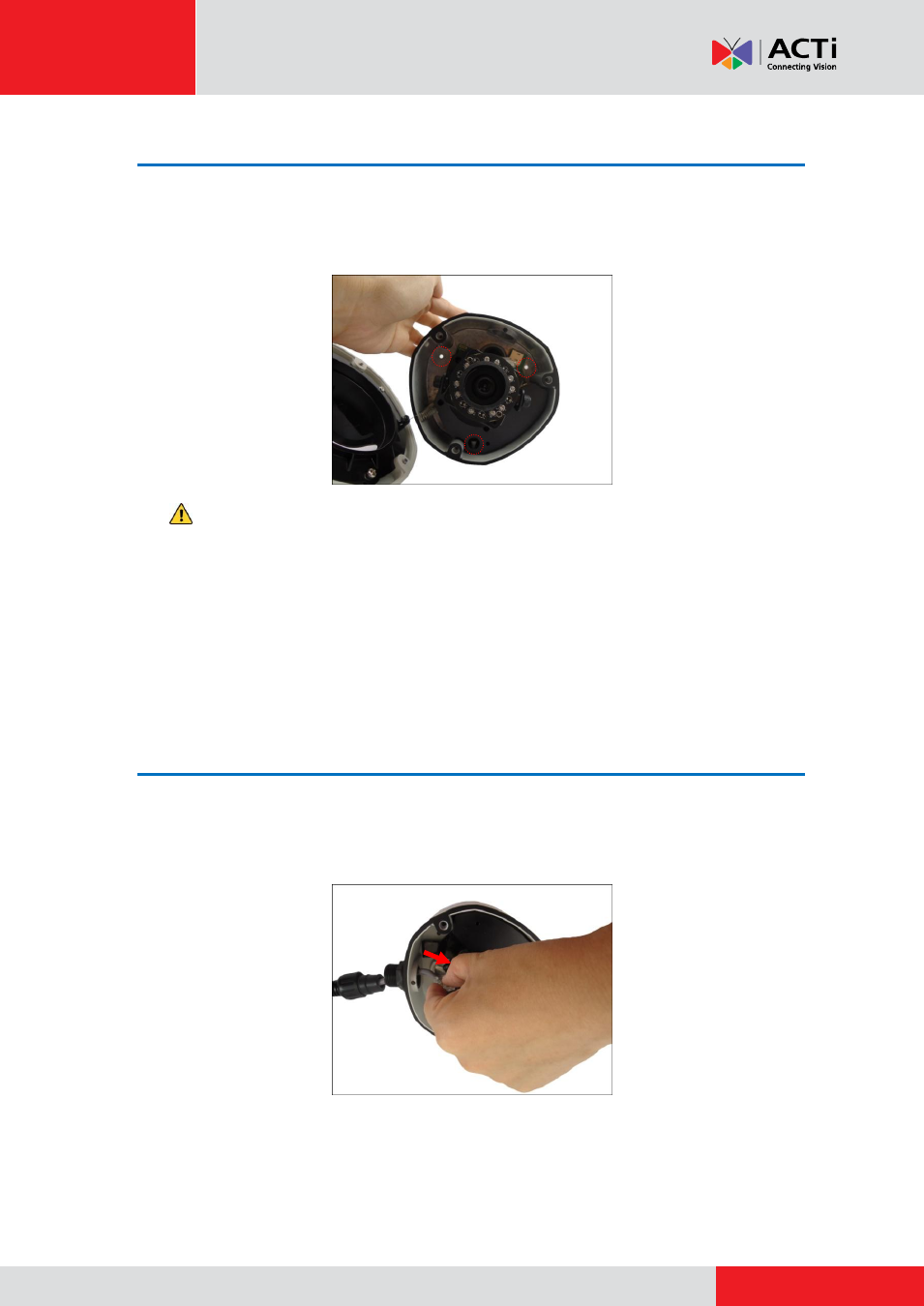

Step 4: Install the Camera to the Wall
1.
If necessary, insert a memory card (not supplied) into the card slot of the camera.
2.
Align the camera screw holes and the conduit hole (if necessary) to the holes on the wall and
attach the three (3) supplied screws to secure the camera.
CAUTION:
When using electric screwdrivers,
be careful not to touch the internal
camera components while attaching the screws. Since electric screwdrivers vary in sizes,
speed, and force, they may bruise and damage the internal camera components.
DISCLAIMER:
ACTi will
not be responsible for camera damage caused by improper
installations or the misuse of equipment for installation.
Step 5: Connect the Cable(s)
3.
If the cable will be routed along the wall
, pull the network cable through the side conduit
hole and attach the clamping nut to the conduit gland body.
If the cable passes through the
wall
, skip to step 2.
