ACTi Outdoor Dome on Tilted Wall User Manual
Page 22
Installation Guide
The following examples in this manual are based on Internet Explorer browser in order to
cover all functions of the camera.
Assuming that the camera’s IP address is
192.168.0.100
, you can access it by opening the Web
browser and typing the following addr
ess into Web browser’s address bar:
http://192.168.0.100

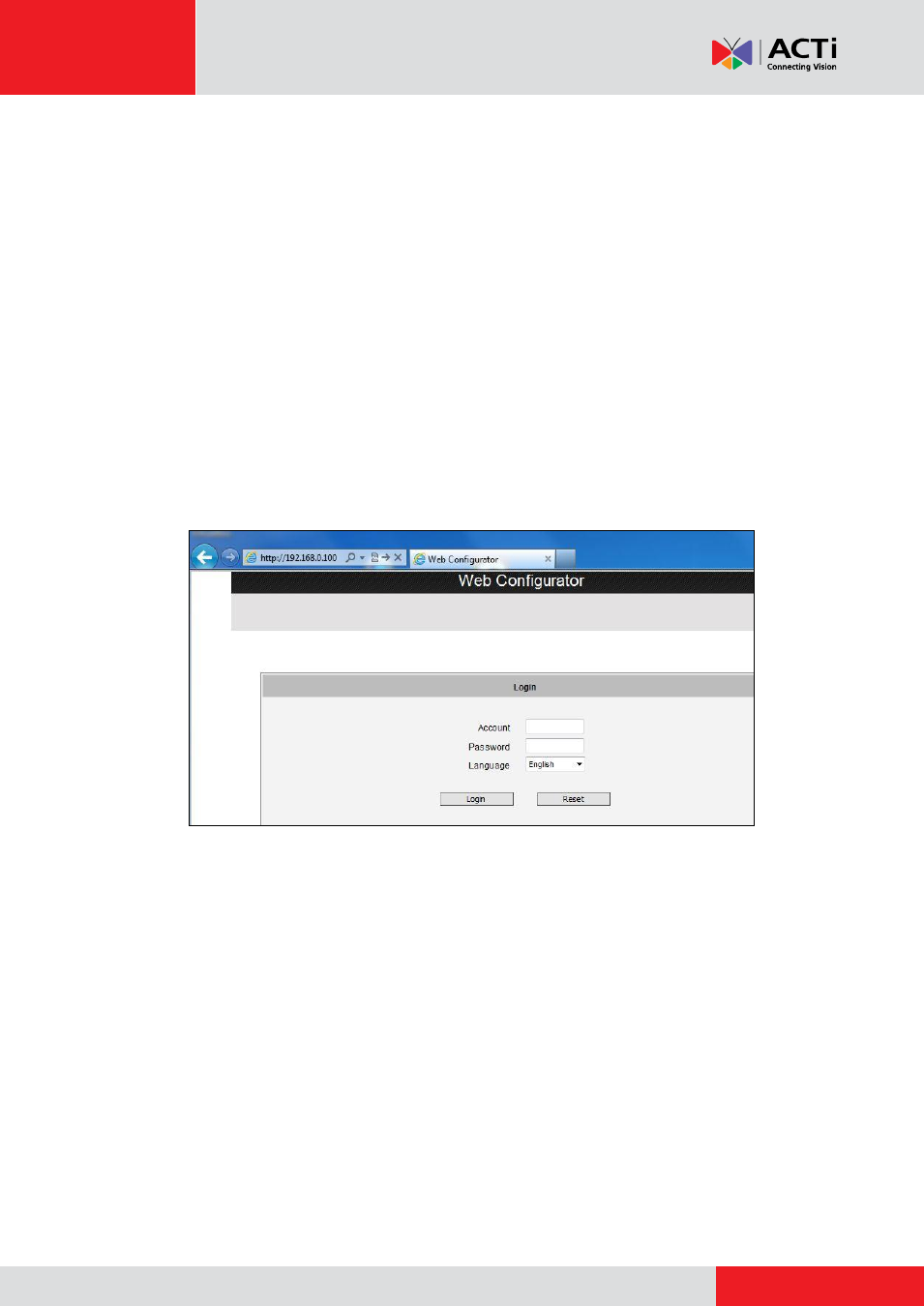

Upon successful connection to the camera, the user interface called
Web Configurator
would
appear together with the login page. The HTTP port number was not added behind the IP
address since the default HTTP port of the camera is 80, which can be omitted from the address
for convenience.
Before logging in, you need to know the factory default Account and Password of the camera.
Account:
Admin
Password:
123456
