Kcm-7111, E 27, Installation guide – ACTi Outdoor Dome on Tilted Wall User Manual
Page 27
Installation Guide
KCM-7111

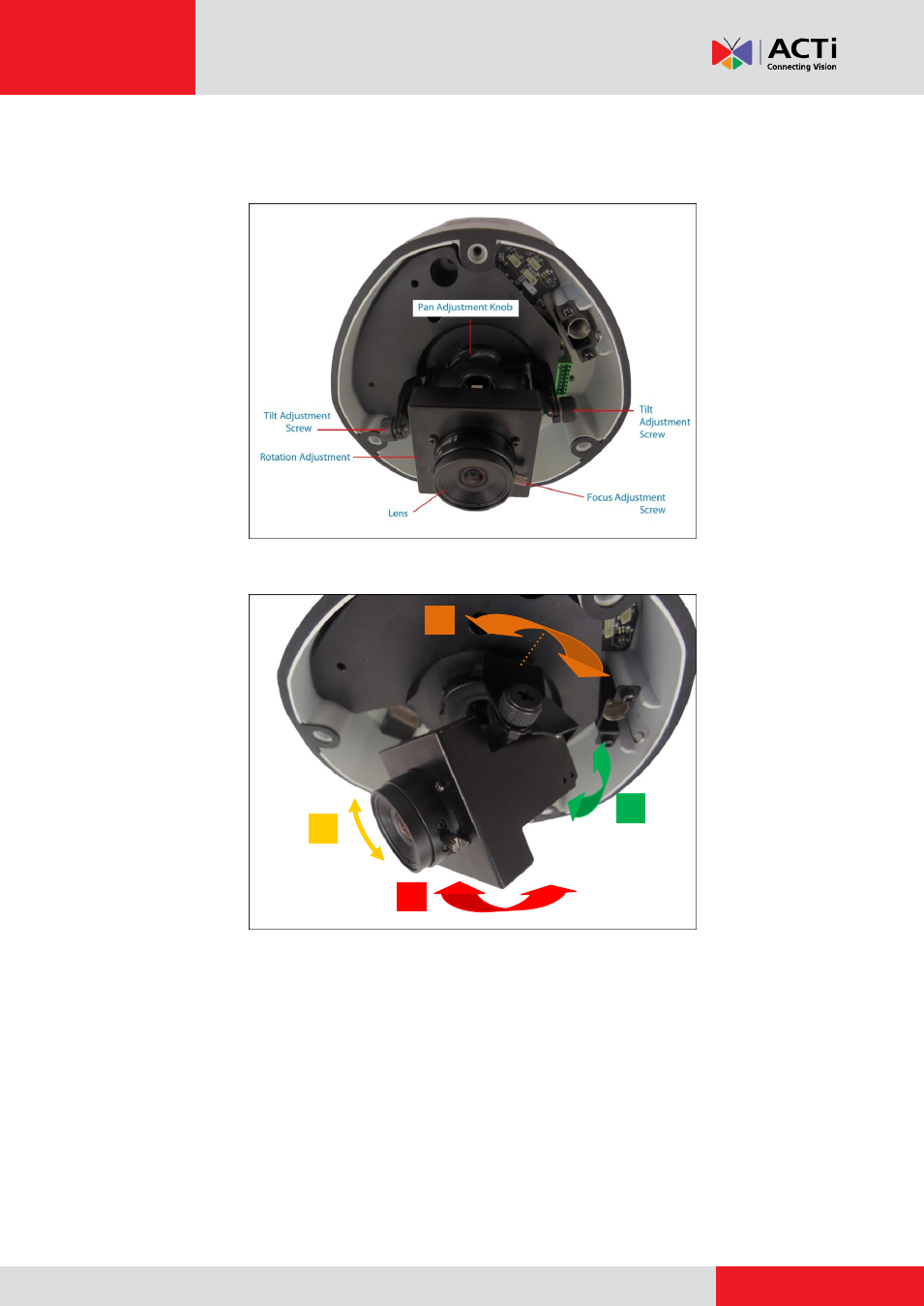

Camera Parts Overview
Adjustment Procedures
1.
Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2.
Move the rotation adjustment to rotate the viewing orientation.
3.
Loosen the pan adjustment screw and move the pan direction.
4.
Loosen the focus adjustment screw, and move the lens left or right to adjust focus, and
then tighten back the screw to fix the lens position.
3
2
4
1
