Installation Guide
5

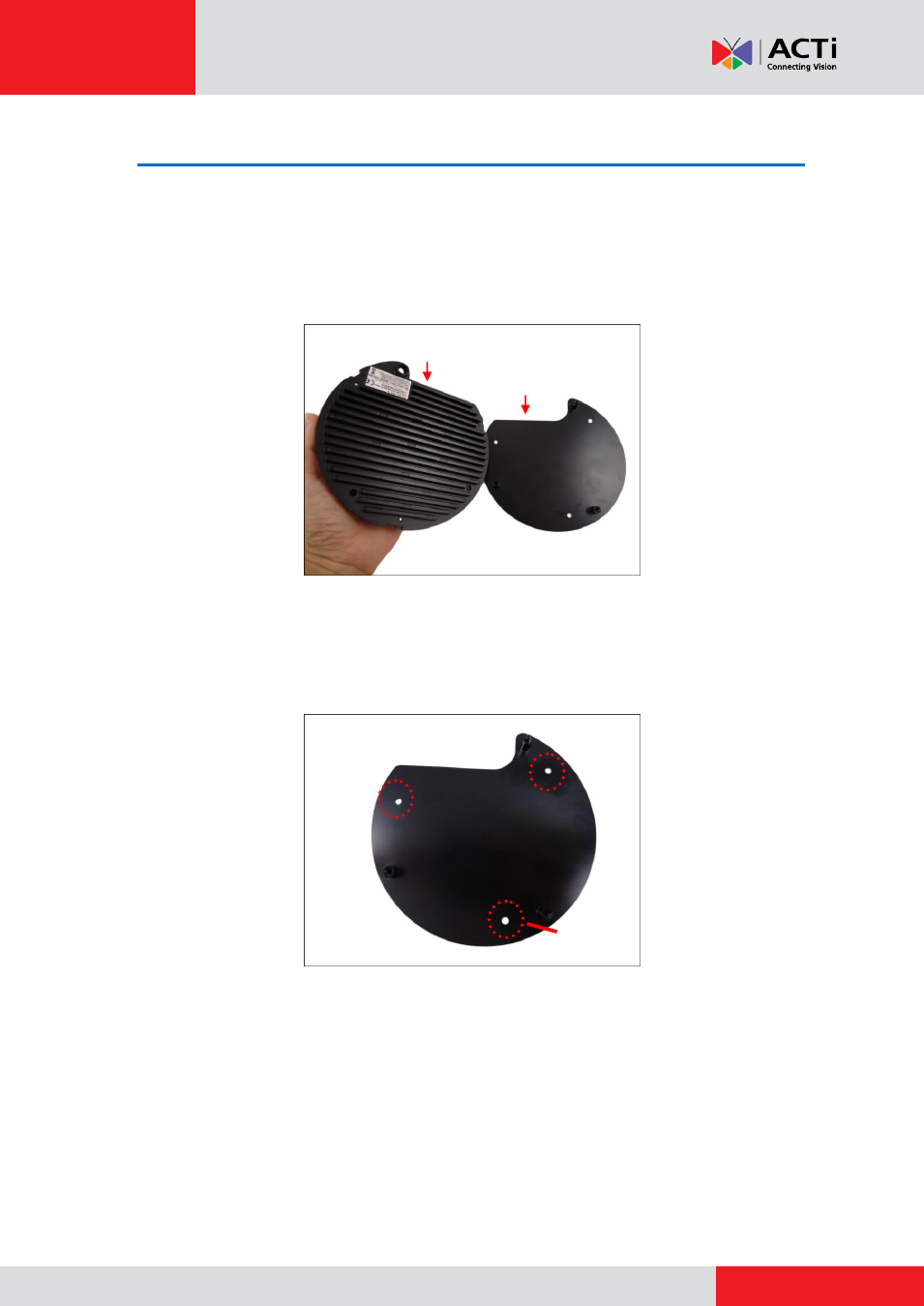

Step 3: Install the Base Plate
IMPORTANT!
Before drilling the holes on the surface, note the camera placement and where you should drill
the hole where the cables will pass through or how the cable will go along the surface.
For wall installations , the connectors side must face up to install the camera with a correct
orientation.
1. After considering the orientation direction, drill the three (3) holes on the surface using the
drill template or the base plate itself as the template. If the cables will pass through the
surface, drill also the cable hole at this point.
Screw hole
Camera Connectors Side
Base Plate
Connectors Side
