Installation Guide
13

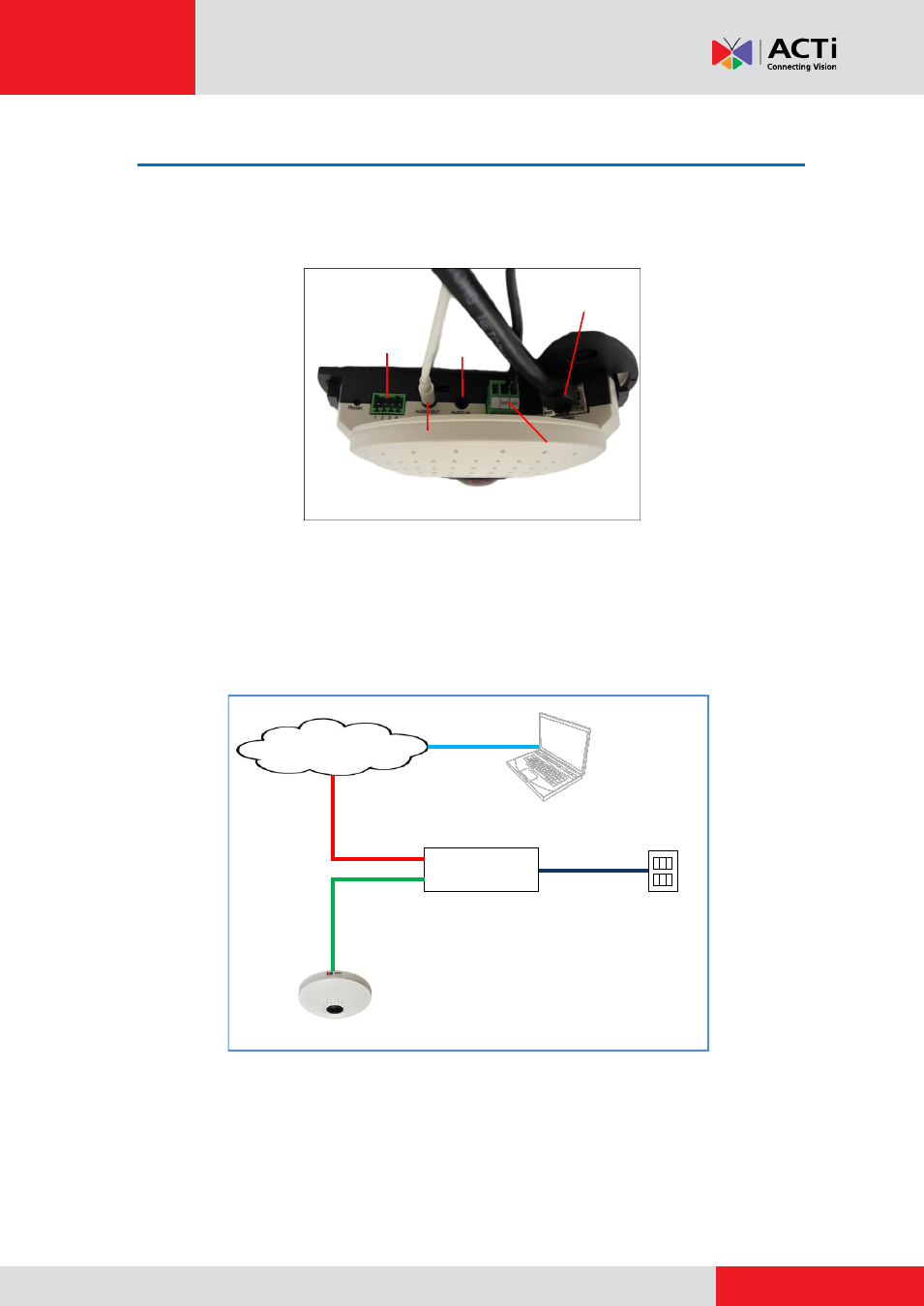

Step 5: Connect the Cable(s)
1. Connect the Ethernet cable to the Ethernet port of the camera.
If necessary, connect other cable connectors (optional), like audio input/output, DC 12V
power, and DI/DO.
NOTE: The cables are not included in the camera package.
2. On the network side, connect the other end of the Ethernet port to a switch or injector. Then,
connect the switch or injector to a network PC and a power source. See Power-over-Ethernet
(PoE) connection example below.
Network
AC Power
Source
PoE Injector /
Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Audio Out
Ethernet
DI / DO
Connector
DC 12V
Power
Audio In
