Installation Guide
10
Installation Procedures of B5x Fisheye
Domes
Step 1: Drill the Holes
IMPORTANT!
Before drilling the holes on the surface, note the direction of the connectors side of the camera,
which is also the opposite side of the camera logo. This influences the camera placement and
where you should drill the hole where the cables will pass through or how the cables will go along
the surface. When installing the camera on the wall , the connectors side must either be facing
up or down.

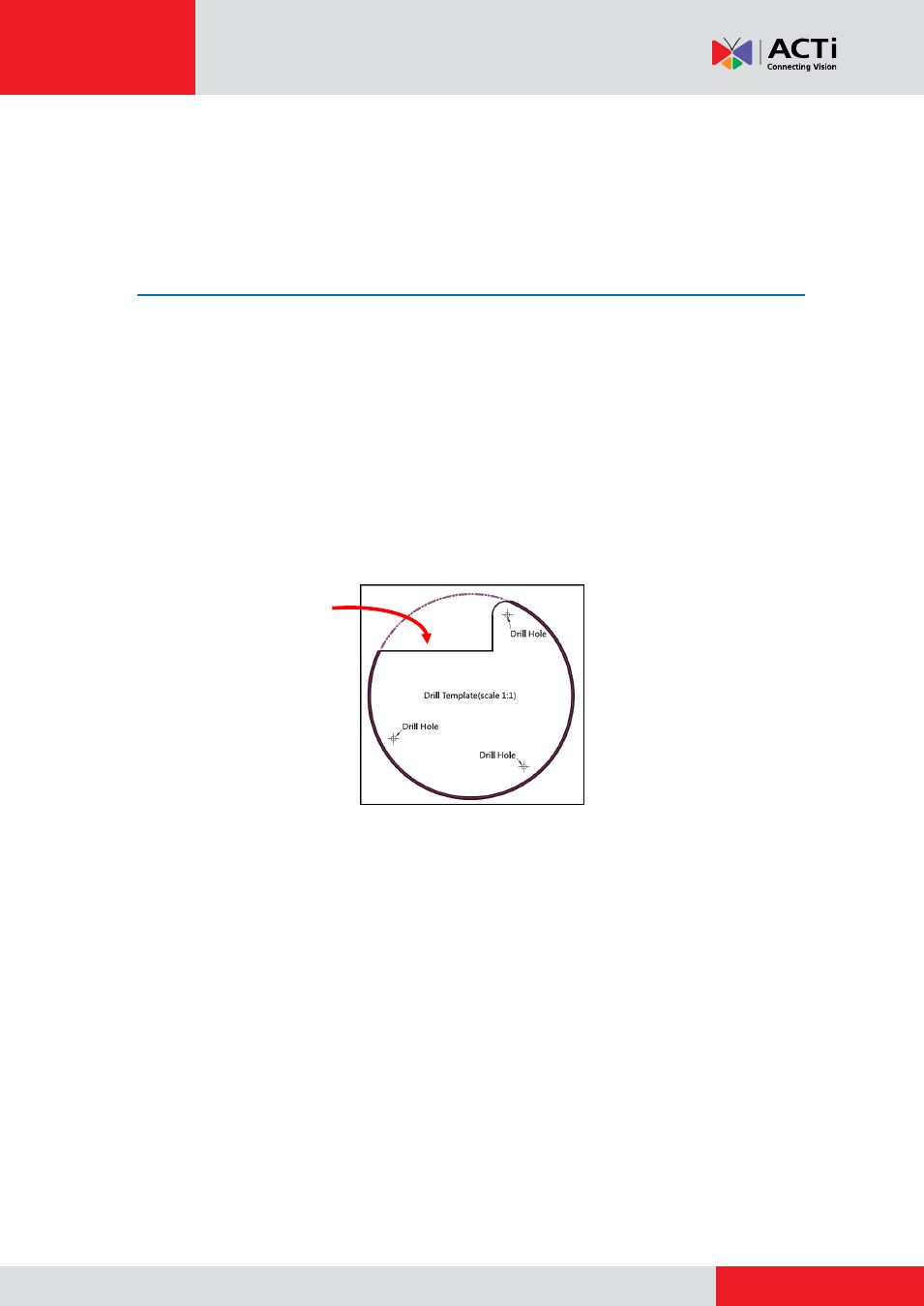

1. Attach the drill template on the target surface, drill the holes and attach the plastic plugs (if
necessary).
2. If the cables will pass through the surface , drill also the cable hole at this point and pull the
cables through the hole on the surface.
3. Remove the drill template sticker from the surface.
Connectors Side
