Installation Guide
Installation Procedures of KCM-3911

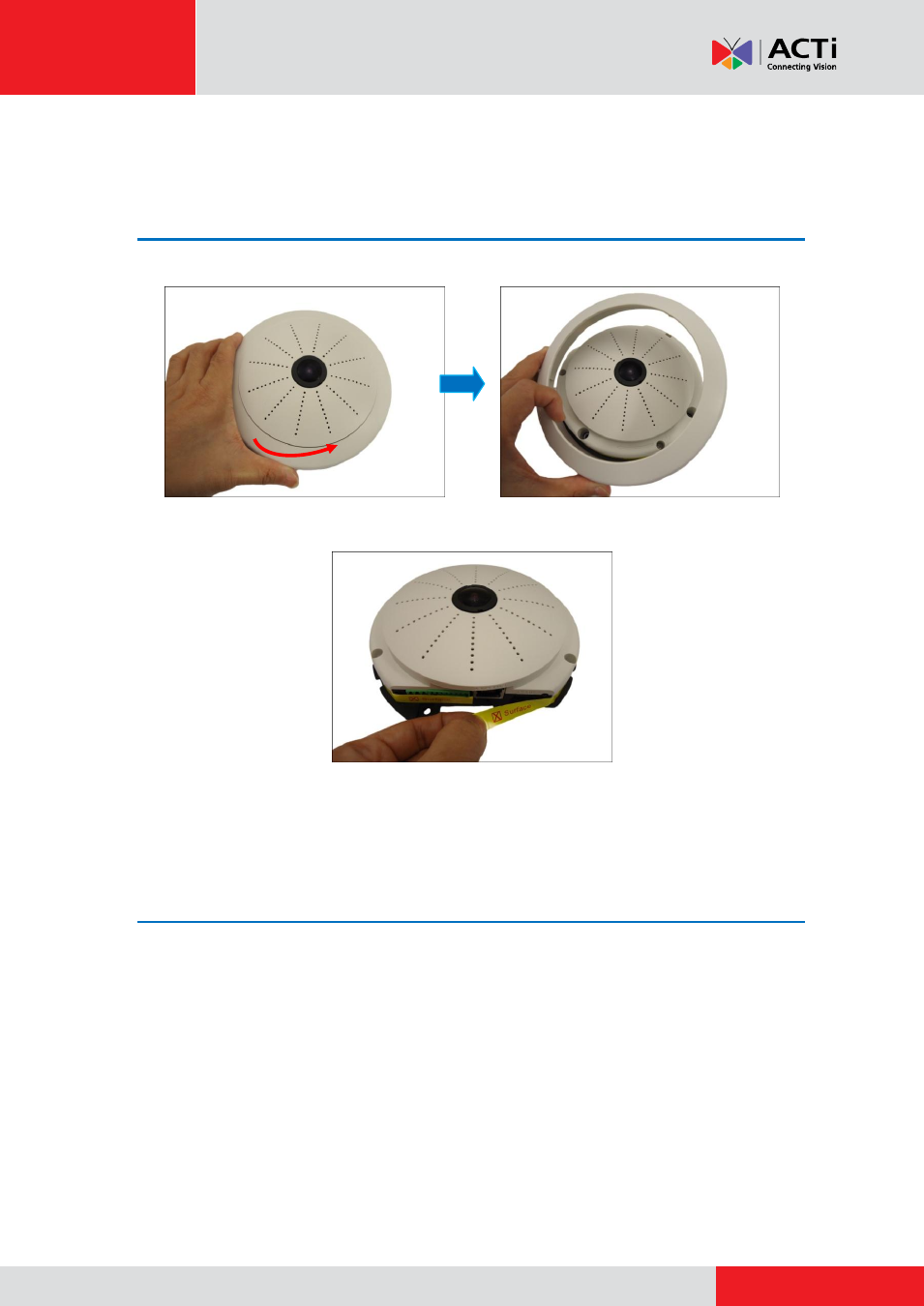

Step 1: Unpack the Camera
1.
Slightly twist the cover ring counter-clockwise and pull to detach it.
2.
Remove the sticker label.
3.
Set the camera aside for later installation.
Step 2: Prepare Other Device Connectors (Optional)
The camera supports external power supply with a DC12V power adapter and digital input /
output devices useful for event triggers, and audio input / output devices. The use of these
devices is optional depending on the user application. If a power adapter or DI/DO device will be
used, connect these devices to the corresponding terminal blocks supplied with the camera at
this point. Otherwise, skip this step.
Refer to the following sections for detailed information:
How to Connect a Power Adapter (Optional)
on page 16
How to Connect DI/DO Devices (Optional)
on page 18
