Boarder Gateway 5800 - 14 -
Chapter 3 Configuration Reference
System Configuration
Start Path: Configuration > System Configuration

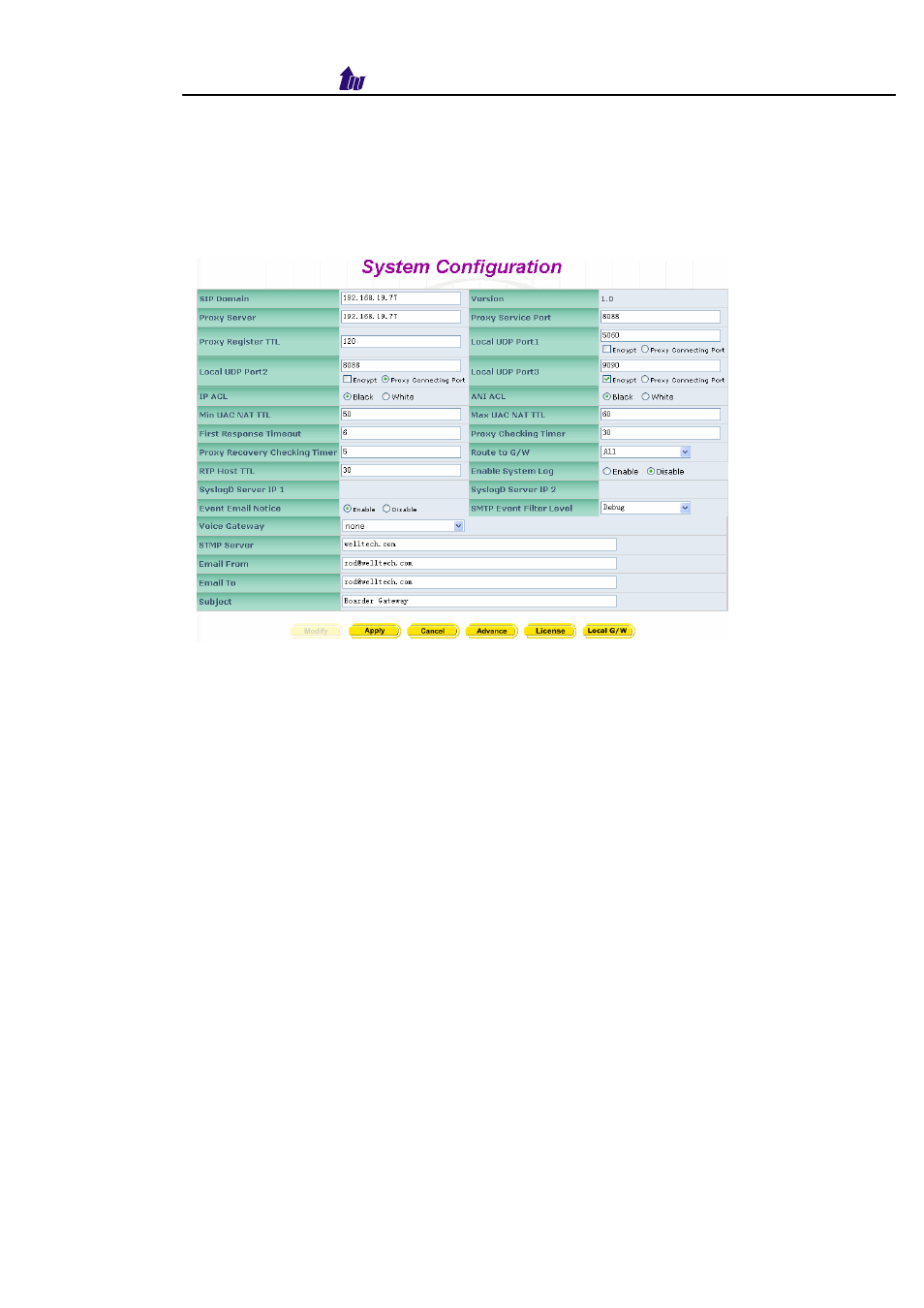

Figure 3.1-1
Parameter Description:
SIP Domain: SIP domain for soft-switch or SIP proxy server. It
can be either the IP address of soft-switch or SIP domain.
Version: The Web version of WellBG 5800
Proxy Server: The Proxy Server or soft-switch IP address
which WellBG 5800 register to
Proxy Service Port: The Proxy Service UDP port number
Proxy Register TTL: The default registration maximum time to
live setting when register to the proxy
Local UDP Port 1,2 and 3: The local UDP port on which the
WellBG 5800 listened
- Encrypt: The SIP signal and voice RTP will be encrypted
while passing through the UDP port.
- Proxy Connecting Port: It is used to connect to the proxy.
You only can select one from the three ports.
IP ACL: IP ACL can be used to filter the caller based on IP
address.
