38
TRI TOOL INC.
92-1238 : Rev. 070126
Parts List, Model 648RBL Clamshell Sub-Assembly
Item Part
No. No. Description Qty
1. 19-0673 HOUSING, MAIN REF
2. 30-0622 BUTTON 16
3. 30-0615 BALL, STEEL 16
4. 33-1831 JACKSCREW 16
5. 39-0721 GEAR, HEADSTOCK REF

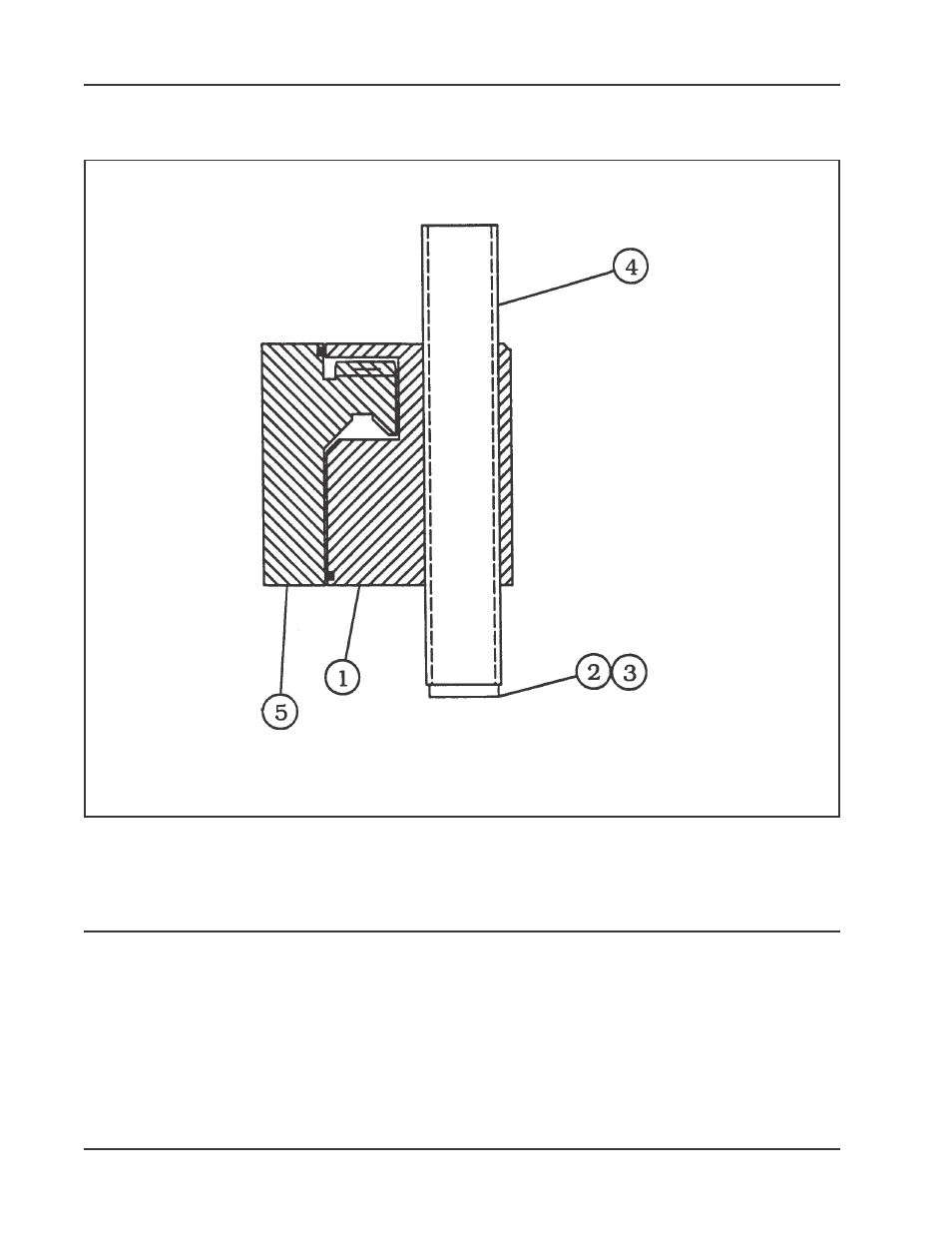

MODEL 648RBL CLAMSHELL SUB-ASSEMBLY
