TRI TOOL INC.

92-0282 : Rev. 131230

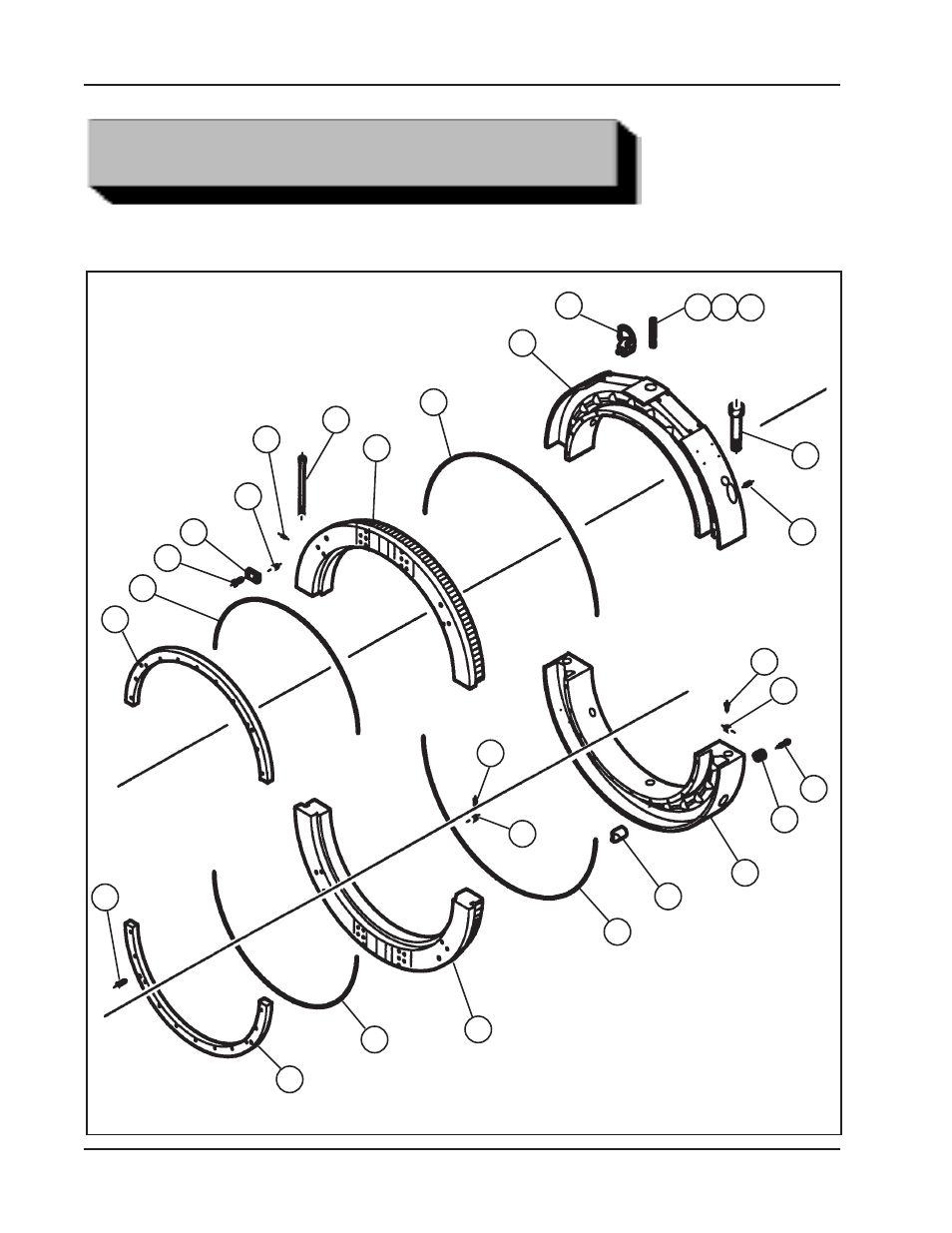

MODEL 620SB CLAMSHELL SUB-ASSEMBLY

ILLUSTRATED PARTS BREAKDOWN

1

10

2

3

4

5

6

9

11

12

13

15

14

19

18

17

16

20

22

23

1

2

3

4

22

14

7 8 21
