Warning – Tri Tool 602TSB Clamshell Air User Manual
Page 22
22
TRI TOOL INC.
92-0139 : Rev.131230
WARNING:
CAUTION:
NOTE:
The Motor Mount reacts the torque of the Air Motor only when the Motor
Hold-down Bolt is in place.
Check that the air supply filter/regulator/lubricator (FRL) is installed and set
properly.

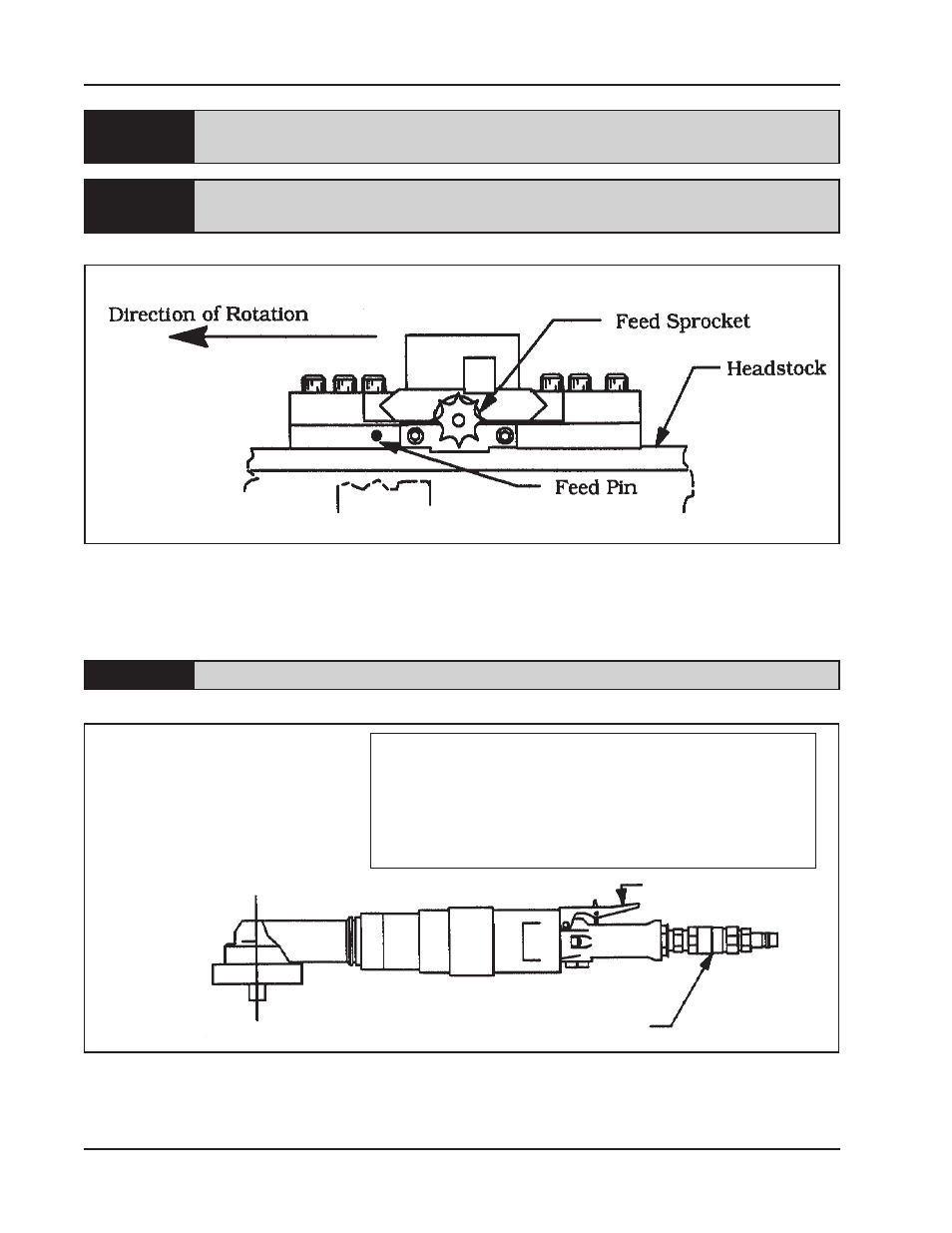

Approach of the Feed Pin to the Feed Sprocket
Check for proper alignment of the Feed Sprockets.
Run the Headstock slowly with the Feed Pin ‘in’ to insure that the Sprocket is set
right. (Do not run at full speed during the first revolution.)
You will break the Feed Pin if the Feed Pin to Sprocket alignment is incorrect.
Deadman Switch Warning
WARNING
DO NOT OVERIDE THE DEADMAN SWITCH
ON THIS UNIT. Locking down, obstructing, or
in any way defeating the deadman switch on
this unit may result in serious injury.
Deadman Switch
Flow Control Valve
