Model 602TSB
92-0139 : Rev.131230
OPERATION
Read the operating instructions carefully before attempting to operate the Model
602TSB Low Profile Clamshell.
See ‘Configure the Clamshell for the specific task required’ later in this section to
configure the machine.
Do not install the Tool Bits until the Clamshell is installed on the tube.
INSTALLATION OF THE CLAMSHELL ON AN IN-LINE TUBE
Separate the two halves of the Clamshell.
Disengage the Air Motor by removing the Motor Hold-down Bolt and removing the
Air Motor from the drive socket.

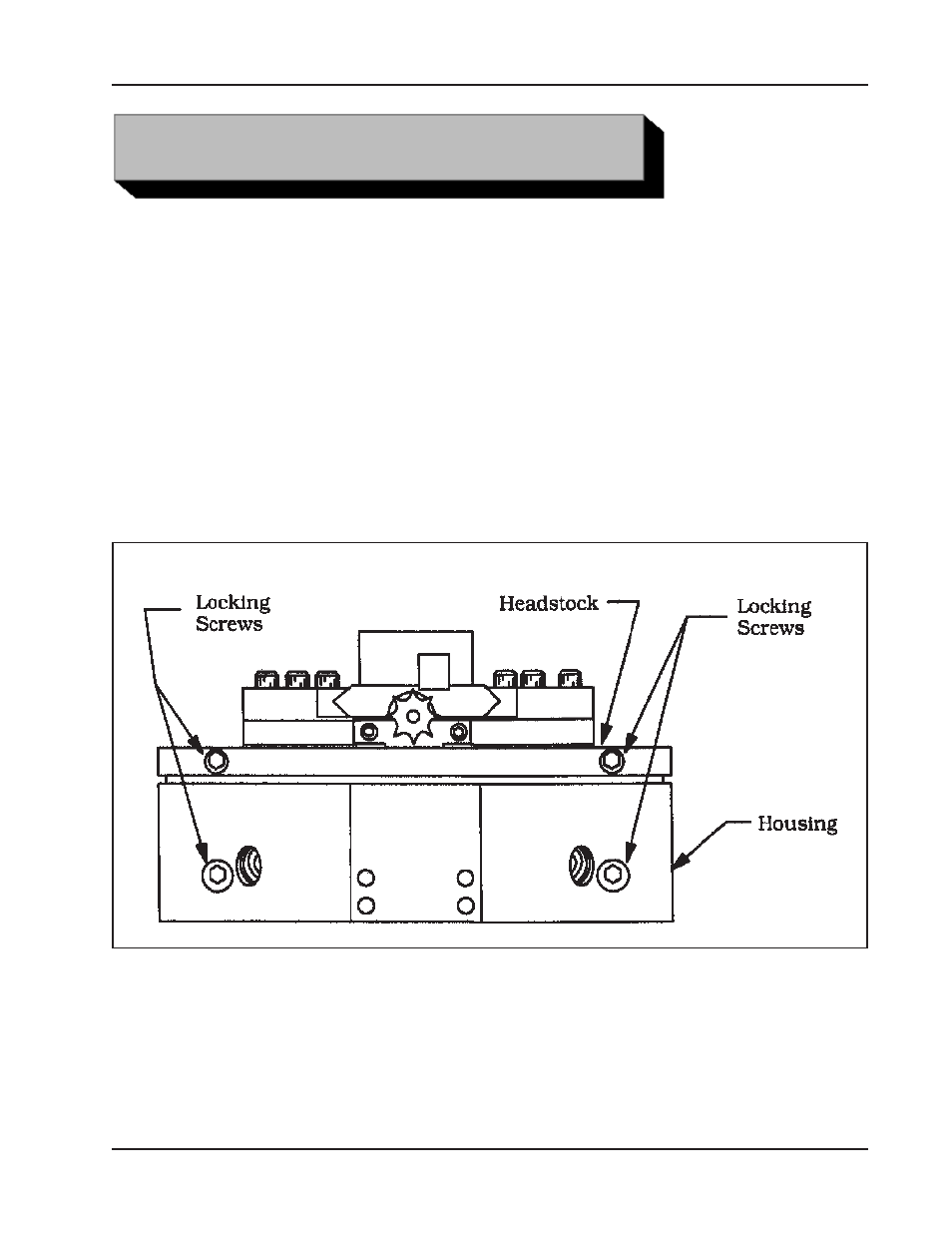

Locking Screw Locations
By hand, rotate the Headstock until the split-lines of the Headstock match the
split-lines of the Housing.
Unbolt the two halves of the Clamshell.
Two Locking Screws are located on the Housing and two more on the Headstock.
