OPT-1250xxxx Series

DELTA ELECTRONICS, INC.

1 Jan.,

2008

Rev. 0H

www.deltaww.com

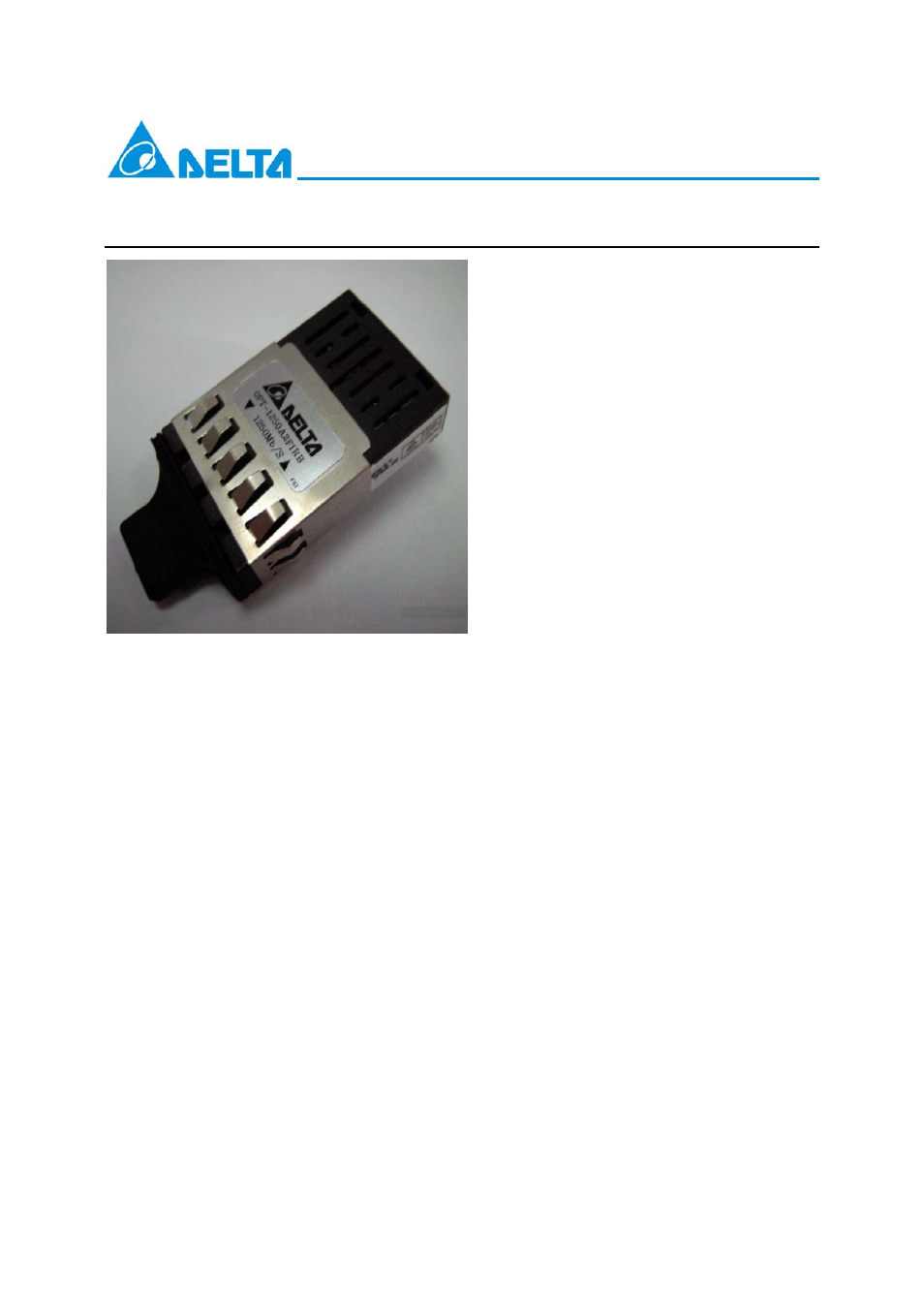

RoHS Compliant 1X9 SC Duplex Receptacle Transceiver Module for
Gigabit Ethernet

Features

Industry Standard 1 x 9 Footprint and duplex SC

Connector interface

Compliant with Specifications for IEEE 802.3z

/

Gigabit Ethernet

OPT-1250Bxxx compliant with the 1.0625GBd

Fiber Channel 100-SM-LC-L FC-PI Rev.13

OPT-1250Axxx compliant with the 1.0625GBd

Fiber Channel FC-PI 100-M5-SN-I Rev.13

Single +3.3V or 5V Power Supply

PECL or TTL Receiver Signal Detect Indicator

Wave Solderable and Aqueous Washable

Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2

RoHS Compliant per Directive 2002/95/EC.

Description

The OPT-1250xxxx series from DELTA is a 1X9
transceiver module designed expressly for
high-speed communication applications that
require rates of up to 1.25Gbit/sec. It is compliant
with the Gigabit Ethernet standards as well as 1x
Fiber channel standards.

The OPT-1250xxxx transceivers are provided with
the SC receptacle that is compatible with the
industry standard SC connector.

The post-amplifier of the OPT-1250xxxx also
includes a Signal Detect circuit that provides a
PECL or TTL logic-Low output when an unusable
optical signal level is detected. (see order
information)

The OPT-1250xxxx transceiver is a Class 1 eye
safety product. The optical power levels, under
normal operation, are at eye safe level.

Applications

Gigabit Ethernet/Fast Ethernet

Switched backplane applications

Performance

OPT-1250AxFxx:

850nm VCSEL, up to 500m in 50/125μm MMF

850nm VCSEL, up to 220m in 62.5/125μm

MMF

OPT-1250BxQxx:

1310nm FP laser, Data Link up to 10km in

9/125um SMF

1310nm FP laser, up to 550m in 50/125μm

MMF

1310nm FP laser, up to 550m in 62.5/125μm

MMF
