HS-4000
TASCAM HS-4000
7

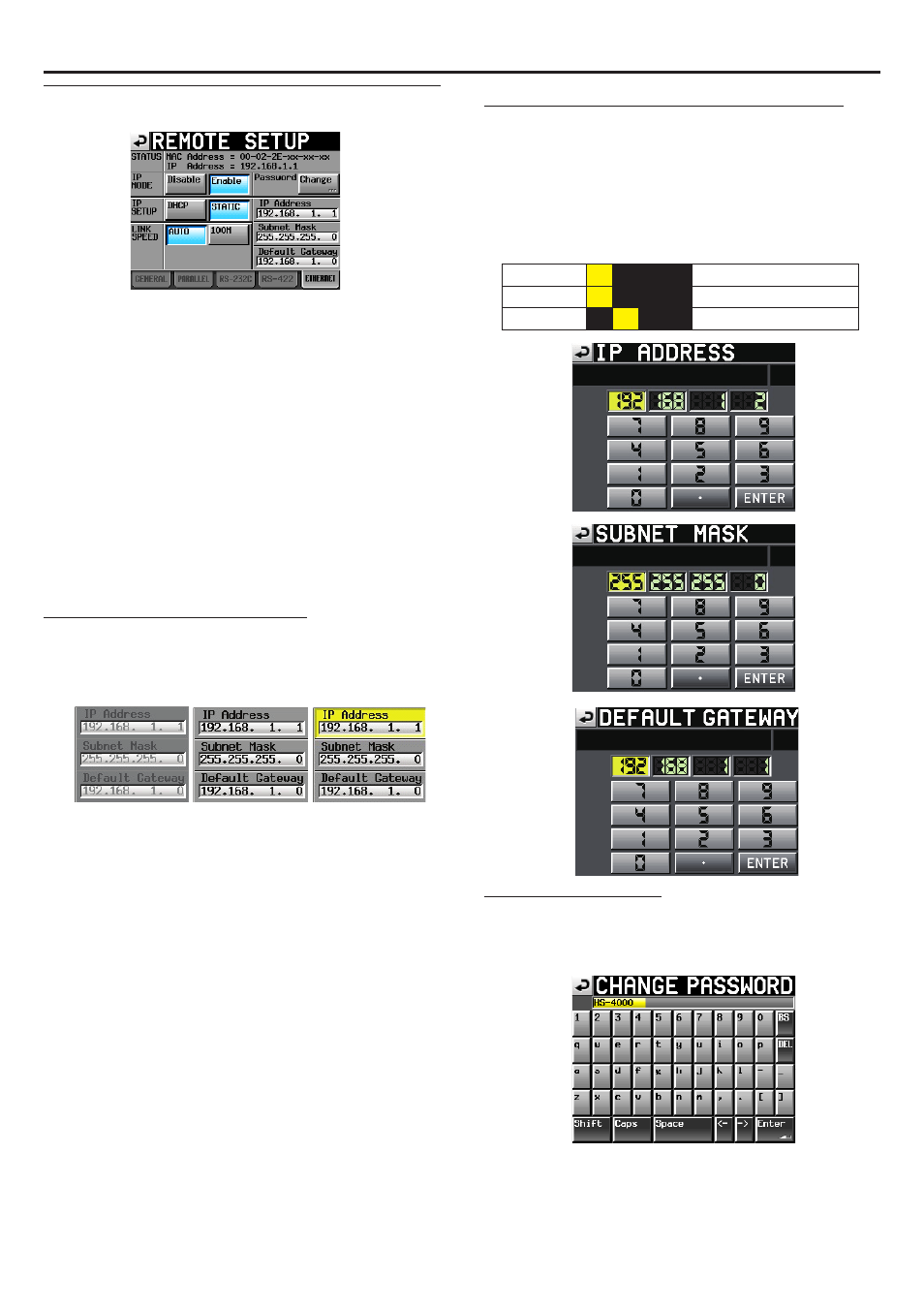

ETHERNET page added to the REMOTE SETUP screen
Use this to make settings related to Ethernet communication.
STATUS
This shows the unit's MAC Address and current IP Address.
IP MODE
Use these buttons to enable or disable Ethernet functions.
Setting buttons: Disable (default value), Enable
IP SETUP
Use to switch between DHCP and STATIC .
When set to DHCP , and there is a DHCP server on the LAN, the IP Address ,
Subnet Mask and Default Gateway items should be automatically
acquired.
When set to
STATIC
, you must set the
IP Address
,
Subnet Mask
and
Default Gateway items manually.
Setting buttons: DHCP , STATIC
(default value)
LINK SPEED
Use these buttons to set the link speed.
Setting buttons: AUTO (default value automatically adjusts speed
according to connection),
100M
(operates with fixed speed of 100 Mbps.)
IP Address/Subnet Mask/Default Gateway
These show the current values of these settings. When
IP SETUP
is set to
STATIC
, use these field to set the values.
Default values: 0. 0. 0. 0
Depending on the IP SETUP setting, this area appears differently as shown
below.
IP Address/Subnet Mask/Default Gateway editing screen
Touch the corresponding area of the REMOTE SETUP screen ETHERNET page
to open its value setting screen.
Each field can contain up to 3 digits. (You do not need to input "0" i
before values of 1–2 digits.)
The first field is selected when a screen opens. i
After a field is selected, touching a number button will enter that digit. i
When touched, further digits will be added to the end of the same
field.
Touch the period (point) button to move to the next field. i
Example
Screen opened 192. 168. 1. 1
"1234" input 234. 168. 1. 1 (First "1" is discarded)
"." input 192. 168. 1. 1
CHANGE PASSWORD screen
Touch the Change button in the Password section of the REMOTE SETUP
screen ETHERNET page to open the CHANGE PASSWORD screen where you
can set the password.
Up to 9 characters can be used.
Field selected DHCP STATIC
