O Setup
The IF-FW/DM appears to a mixer just like
any other optional I/O card except that it has
24 channels of I/O instead of 8.
IF-FW/DM & Mixer Routing
Mixer Outputs
DM-3200
By default, the DM-3200 duplicates busses 1
- 8 on IF-FW/DM mixer outputs 17 - 24.
Also available are the Direct Outputs from
channels 1 - 16. By default, those appear on
IF-FW/DM mixer outputs 1 - 16.

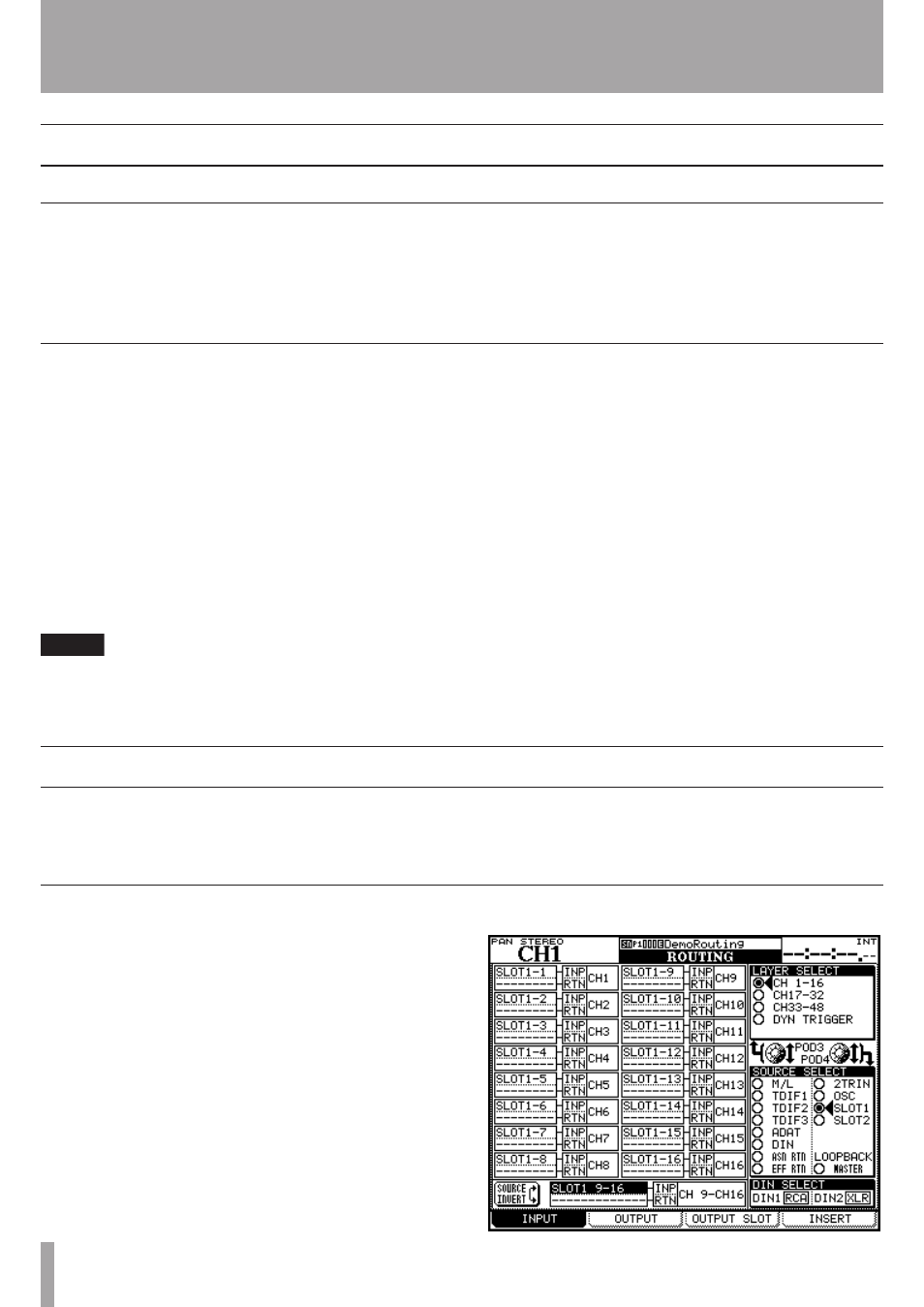

These routing settings can be changed in the
OUTPUT tab of the DM-3200’s ROUTING
screen.
If it becomes necessary to switch between
44.1k and 48k sample rates on the mixer,
the following steps are required for correct
operation:
1. Disconnect the FireWire cable between
the DM-24 and the IF-FW/DM.
2. Change the sample rate on the DM-24.
3. Re-connect the FireWire cable.
NOTE
30 seconds must elapse between disconnec-
tion and reconnection of the FireWire cable.
96 k & 88.2 k Operation
The IF-FW/DM does not support these sam-
ple rates.
System Clocking
When configured with the IF-FW/DM, the
mixer must be the master clock relative to
the computer DAW. The mixer itself may be
clocked to an external source other than the
DAW.
Master Clock
Clock Settings
