3 – Functional Overview
20
TASCAM FW-1884 Owner’s Manual
4 Repeat this procedure for any other MIDI
inputs whose routings you want to change. While in MIDI routing mode, selecting any input key
will display its selected MIDI outputs. Additionally, all
MIDI indicator LEDs will glow steadily to display
routing information.
To exit MIDI routing mode, press the ROUTE key
again. All LEDs will stop flashing and Function keys
will return to normal mode.
3.6 Clock System Controls

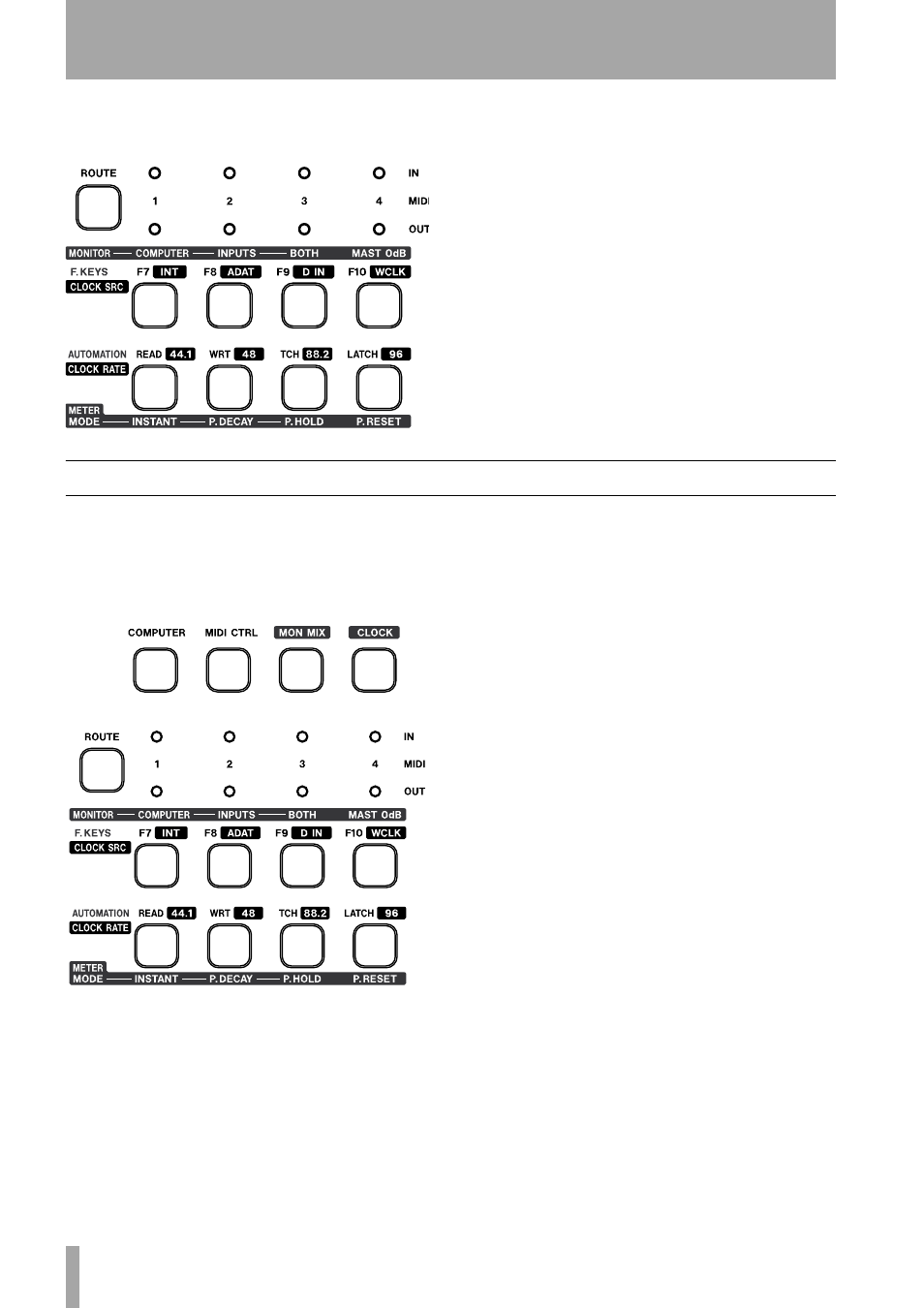

The FW-1884’s audio clock can be checked or changed
directly from the control surface. To display the current
clock settings, press and hold the CLOCK key. The
clock source and expected sample rate will be displayed,
as shown below: Clock Source
• INT/F7 – Internal Clock
• ADAT/F8 – ADAT Input
• D IN/F9 – S/PDIF Input
• WCLK/F10 – Word Clock
Expected Sample Rate
• 44.1 – 44.1 kHz
• 48 – 48 kHz
• 88.2 – 88.2 kHz
• 96 – 96 kHz
While holding down the CLOCK key, pressing any of
the above keys will immediately change the clock
source and/or expected sample rate.
If the selected clock source does not have a usable clock
signal, the corresponding LED will not light. Instead,
the CLOCK LED will flash to indicate a problem, and
the unit will switch to its own Internal clock and await
a valid clock signal. If the sample rate is off by 3% or
more, the FW-1884 will switch to the incoming clock,
and the nearest sample rate LED will blink slowly.
To exit this mode, release the CLOCK key. Function
keys will return to normal mode.
