Super Systems CarbCALC II User Manual
Page 44
CarbCalcII
CarbCalc II
43
© 2005,2006,2007 Super Systems Inc.
·

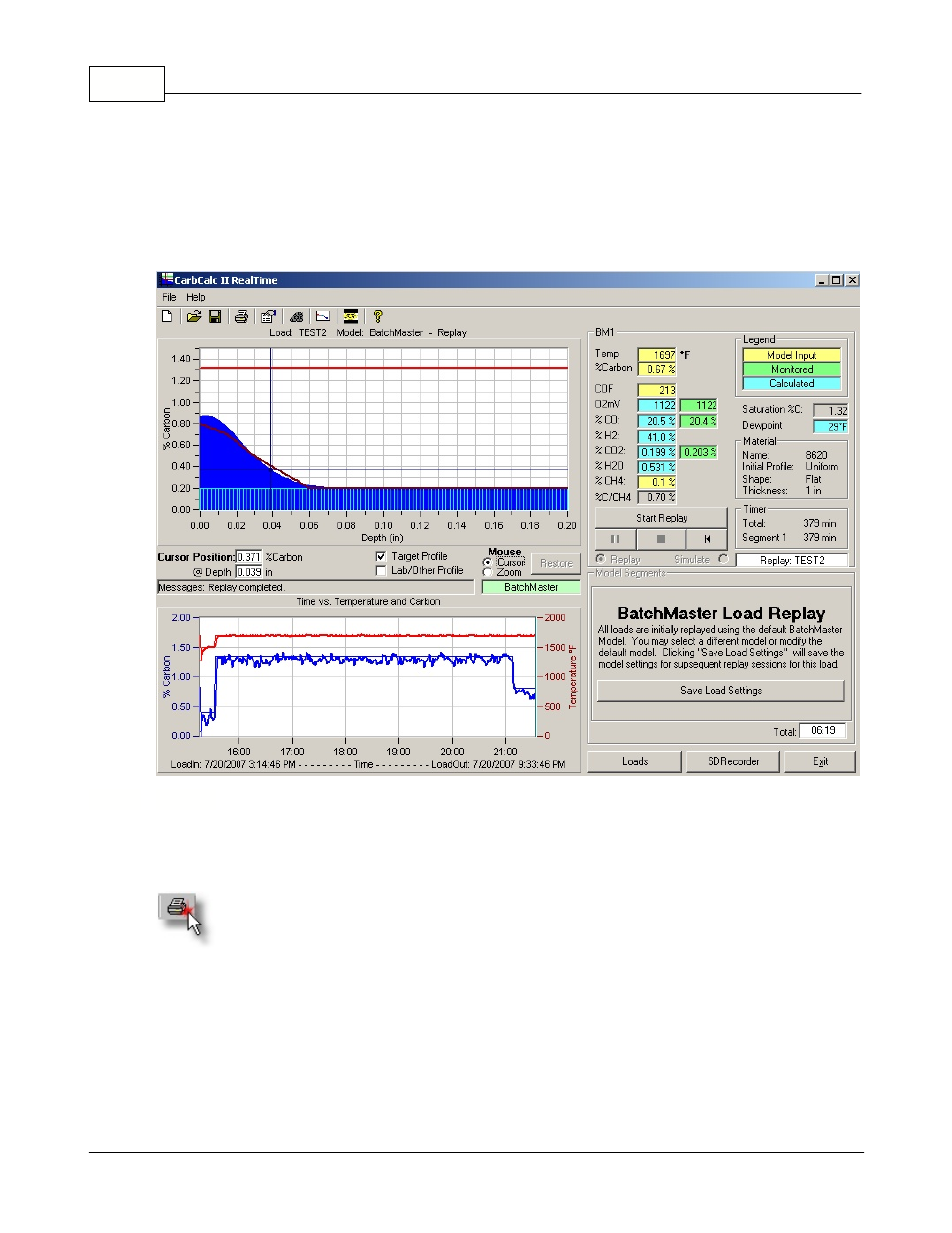

Logged Process data - SuperData Communications historically logged data.
Using this data, the Cycle can selected from the CCLoads database and may be replayed. During
replay, the recipe will not be displayed; only the total time will be displayed. This is becaause the
actual recipe used in the control instrument is unknown to CarbCalcII; only the logged data and
start/ent times are known.
2.14.2 Report
n the Replay mode, clicking on the print icon will print the following report. The report is a snapshot of
the current model status and can be printed at any time during the replay.
