17. Input Circuitry
The jumper located near the channel input connector is used to select the input
mode.
If the jumper is installed it selects single-ended input.
VIN (+) ADC
R5 27R

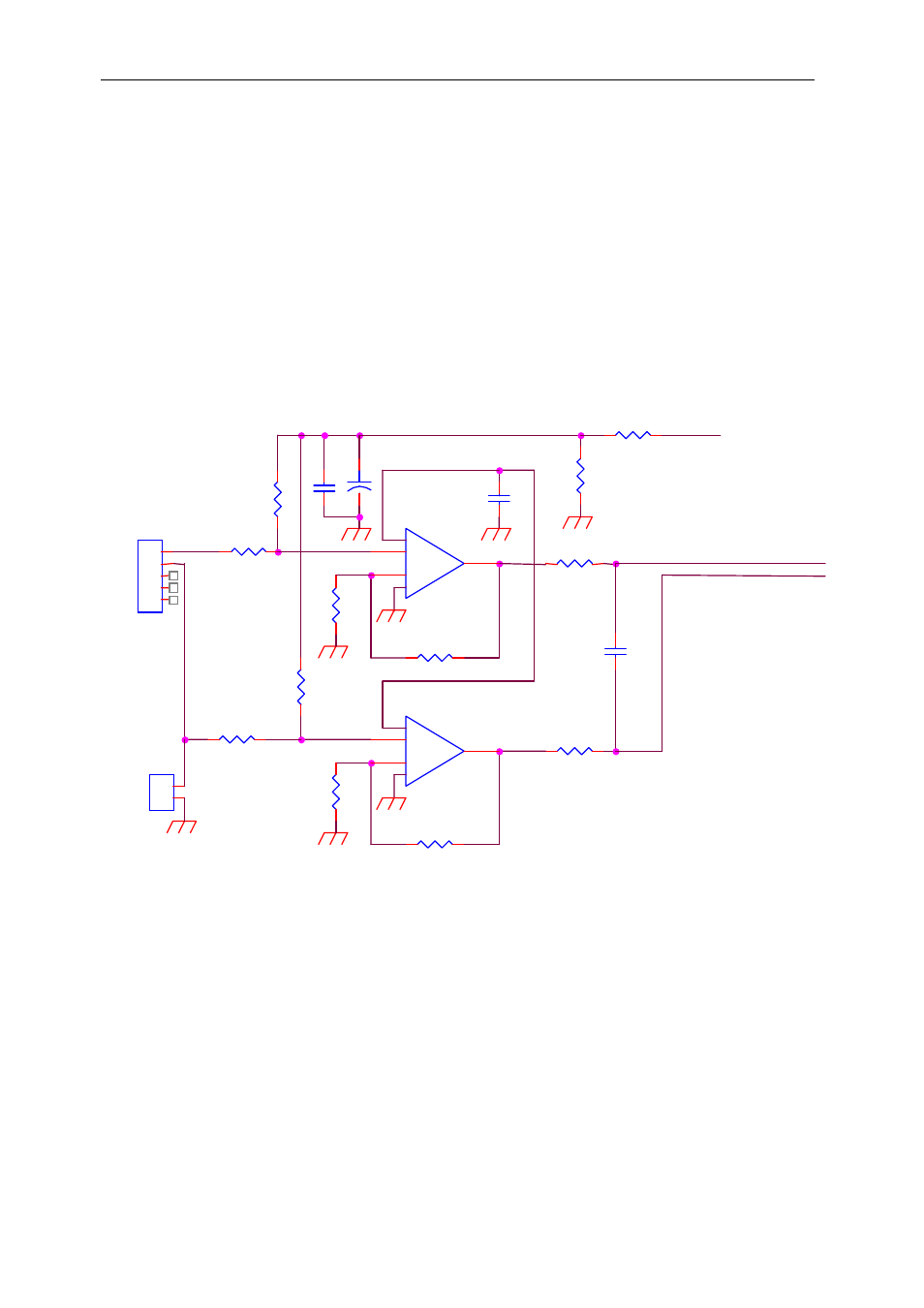

Figure 7: ADC Input circuitry
