Model 59 Configuration—Dim Level and Contact Inputs
Press and hold the dim
button to display and
select the dim level
and contact inputs.
Default: 20dB dim level.
Contact input 1 disabled.
Contact input 2 disabled.

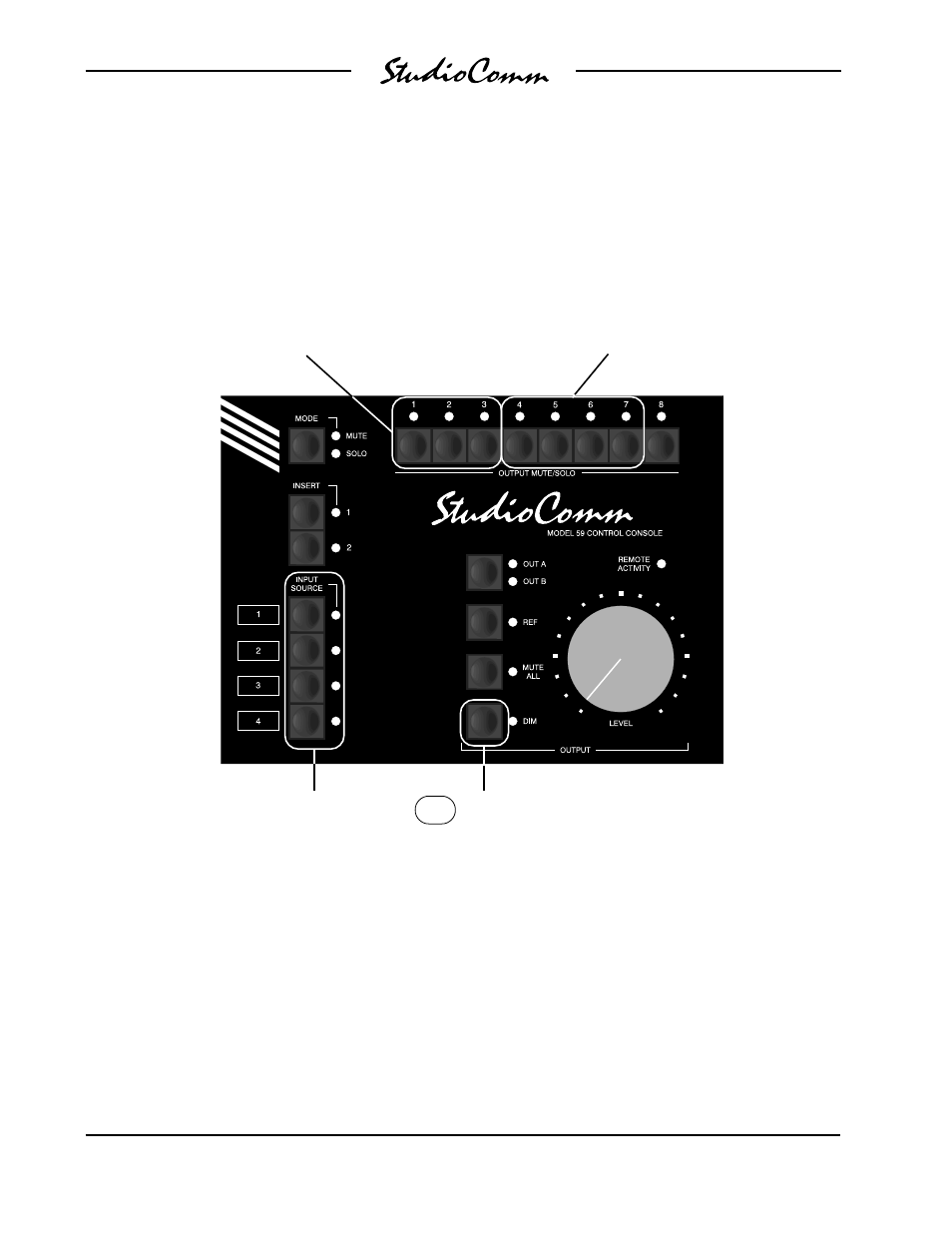

When the dim button is pressed, these
LEDs display the selected dim level:
LED 1 lit means 25dB dim;
LED 2 lit means 20dB dim;
LED 3 lit means 15dB dim;
LED 4 lit means 10dB dim.
Use the buttons to select the dim level.
When the dim button is pressed, these
LEDs display the status of contact input 1.
LED 1 lit means that the input is disabled.
LED 2 lit means that the input provides a
remote mute all function. LED 3 lit means
that the input provides a remote dim
function. Use the buttons to change status.
&
When the dim button is pressed, these LEDs display
the status of contact input 2. LED 4 lit means that the
input is disabled. LED 5 lit means that the input
provides a remote insert 1 function. LED 6 lit means
that the input provides a remote insert 2 function. LED
7 lit means that the input provides a remote bypass
function. Use the buttons to change status.
